FUTABA T18MZ WC - Volume; Slide Lever; Digital Trim

16
＜
Before Use
＞
face nuts counterclockwise, this will detach
the switches.
4. To re-attach, use the face nuts to attach
switches from other positions or optional
switches to the switch block.
5. Connect your connectors.
6. Insert the switch block so reconnect the
connectors that it fits correctly into the body
of the transmitter (as shown in the picture)
and use the hexagonal wrench to tighten the
screws.

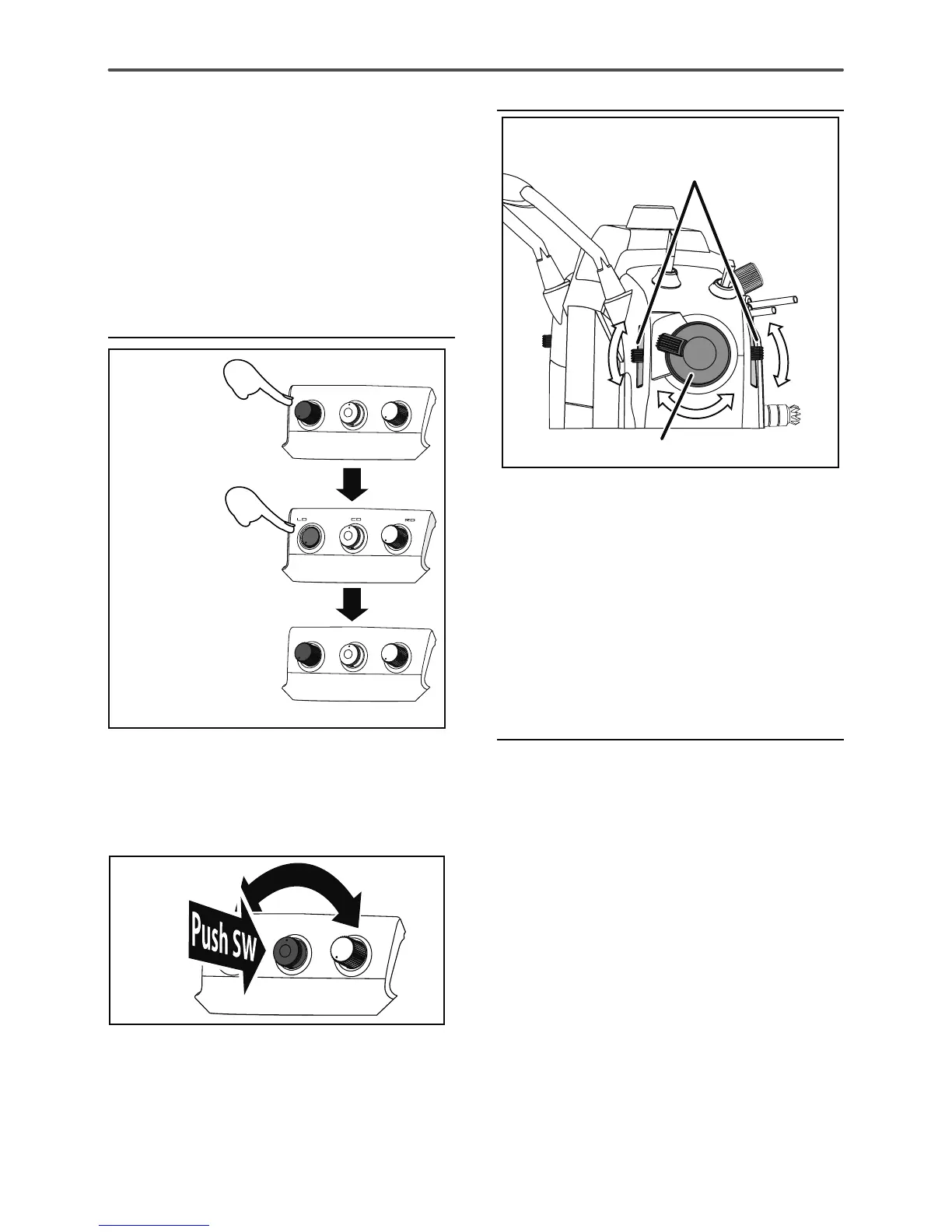

Volume
Pushingdownoneither
theLDorRDvolume
controlwilllockitin
thedownposition.
Pushingthevolumecontrol
againwillreleaseitsothatit
canadjusted.
Volume LD, CD, and RD:
If you push the volume button in, it will be locked in
place. To release the volume button, push it in lightly
once more.
This volume is digital type (rotary encoder).
"CD" volume works as both a volume and a push-
switch.
*T18MZ-WC beeps when the volume knob reaches center.
*You can check the volume position on the Dial Monitor screen
in the Linkage menu.
*You can use each setting screen of the mixing functions to
select volumes and de¿ne the direction of its movement.
Slide Lever
LeverLSbackandforth
movementlinkedoperation
LeverLSTindependentoperation
LST (Left), RST (Right):
Outside levers
LS (Left), RS (Right):
Inside levers: Each lever has two ends, one at the
front and the other at the back of the transmitter.
*It will beep when the lever is set to the center.
*You can check the lever position on the dial-monitor screen in
the linkage menu.
*You can select a slide lever and set the movement direction on
the setting screen of mixing functions.
Digital trim
This transmitter is equipped with digital trims.
Each time you press a trim button, the trim position
moves one step. If you continue pressing it, the trim
position starts to move faster. In addition, when
the trim position returns to the center, the tone will
change. You can always monitor trim positions
graphics on the screen. To change the trim rate, you
must activate this through the function menu, within
the linkage menu. Touch the trim button and you will
access another screen which enables you to change
the trim percentages.
LD RD
R
o
t
a
r
y
CD
