FUTABA T18MZ WC - Dial Monitor; Digital Trim Position Display; Knob and Lever Position Display; Recalling Dial Position

94
＜
Linkage Menu
＞
+(/,&237(5
$,53/$1(
*/,'(5
ŏ5HWXUQWR/LQNDJH0HQX
ŏ7RXFKWKH>'LDO0RQLWRU@EXWWRQLQWKH/LQNDJH
0HQXWRFDOOWKHVHWXSVFUHHQVKRZQEHORZ
ŏ7ULPFKDQJHVIURPWKHVWHSWRGLVSOD\

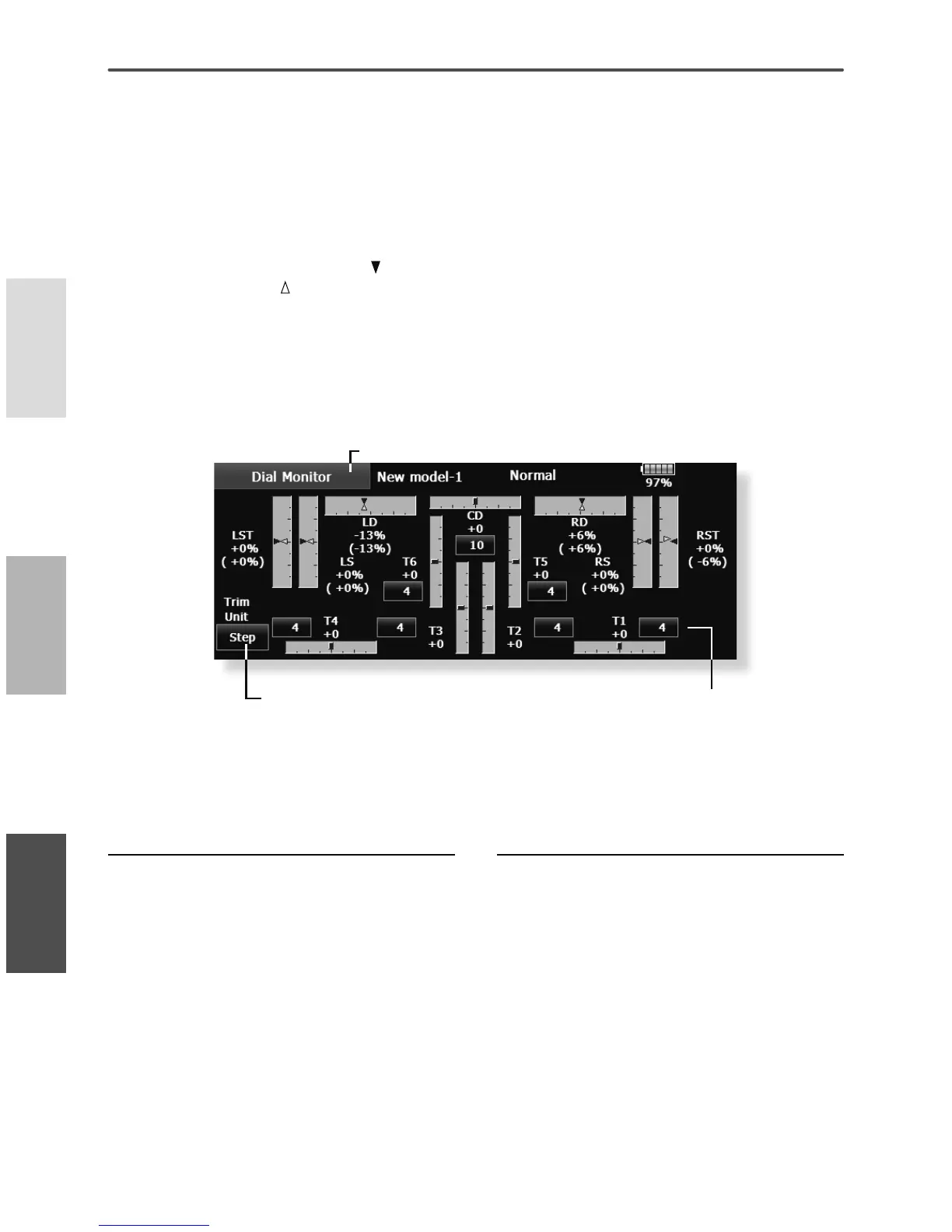

'LDO0RQLWRU
'LVSOD\VWKHSRVLWLRQRIWKHGLDOVVOLGHUOHYHUVDQGGLJLWDOWULP
Digital trim position display (T1-T6, CD)
The Dial Monitor displays the current position and
step amount of each digital trim. The trim step can
be set directly on the dial monitor.
VR and slide lever position display (LST, LS, LD,
RD, RS, RST)
Displays the current position (black ) and last
operating position (green ) of the VRs and slider
levers.
Knob and Lever Position display
(LD, RD, LS, LST, RS, RST)
The Dial Monitor displays the current position
and last operating position of each knob and lever.
Although neither knob nor lever can hold the last
operation position as they are “analog” type, the
position data during the last operation is memorized
in the model memory. By moving the knob and lever
to the position displayed on the monitor, the last
operation position is recalled.
Recalling Dial Position
(LST, LS, LD, RD, RS, RST)
The dial position data at the last operation is
displayed for each knob and lever in this monitor.
(Green arrow)
0RYHWKHEODFNDUURZFXUUHQWSRVLWLRQWRWKH
JUHHQDUURZSRVLWLRQE\RSHUDWLQJWKHGHVLUHG
NQRERUOHYHUWRUHFDOOWKHODVWRSHUDWLQJ
SRVLWLRQ
Digital trim step amount (T1-T6, CD)
The trim step of the T1-T6 and CD can be set
directly on the dial monitor menu.
ŏ'LJLWDOWULPVWHSDPRXQW
