Operation modes
The operation modes when stick, trim lever or VR are selected are described below. Change the operation mode
by touching the Mode and Type buttons.

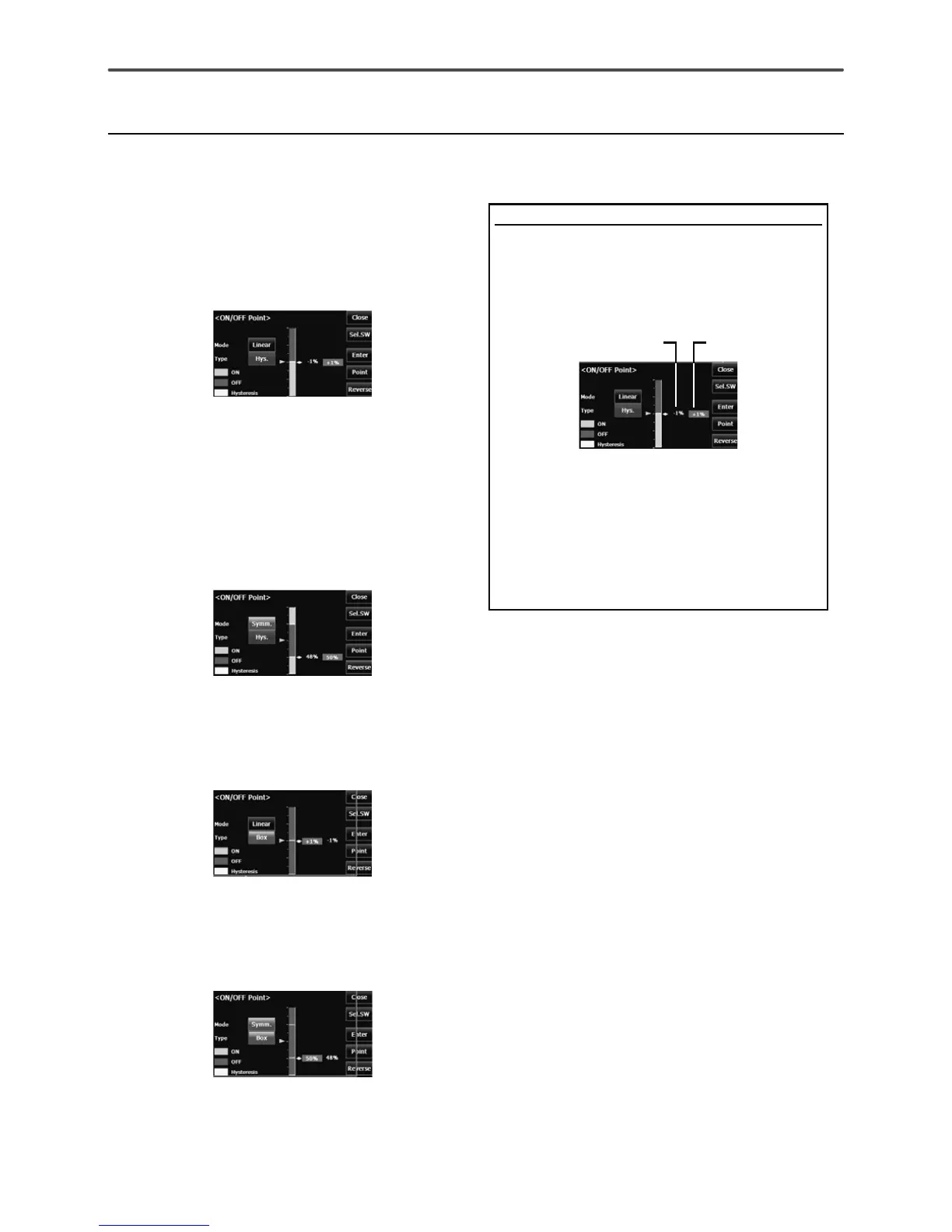

Linear hysteresis mode
This setting method selects function ON/OFF based
on the set point. Hysteresis (dead band) can be set
between ON and OFF. The ON and OFF positions
can be reversed with the Reverse button.
Symmetrical hysteresis mode
Operation is the same as the linear hysteresis
mode, but left and right (up and down) operations
are symmetrical about the neutral position. For
example, when you want to switch DR1 with the
aileron stick, when the stick is moved to the left or
right, DR1 can be turned ON at the same left and
right position.
Linear box mode
This mode turns on the switch within a range of
2 points. Each point can be set. The ON and OFF
positions can be reversed with the Reverse switch.
Symmetrical box mode
Operation is the same as the linear box mode,
but left and right (up and down) operation is
symmetrical about the neutral position.
When shifting the ON/OFF point
The ON/OFF and hysteresis (dead band)
boundary point (there are 2 points: top and
bottom) position can be shifted. ON/OFF is
possible at a free position.
>6HWWLQJPHWKRG@
1. Select the top and bottom boundary points
ZLWKWKH>3RLQW@EXWWRQ
2. Move the stick, etc. to the point you want
WRVKLIWDQGWRXFKWKH>(QWHU@EXWWRQ7KH
boundary points change.
$OVRVKLIWRWKHUSRLQWVDVUHTXLUHG
Top point Bottom point
