Model Menu (Airplane/Glider Functions)
＞
02'(/0(18$,53/$1(*/,'(5)81&7,216
These are the menus usable when either airplane,
glider, or EP glider model type have been selected,
and displayed in the Model Menu screen. First use
the Model Type function of the Linkage Menu to
select your model type, wing type, and tail type.
Changing these later will reset any data set in this
menu.
These dedicated mixings can be set for each Àight
condition, as required. When you want to use the
system by switching the settings for each condition
by switch or stick position, use the Condition
Select function to add flight conditions. (Up to 8
conditions can be used)
Note: The T18MZ-WC is designed so that the airplane
and glider (including EP glider) model types can
handle fuselages of the same wing type. The
functions common to airplanes and gliders, except
IRUDIHZVSHFLÀFIXQFWLRQVDUHVKRZQEHORZ
,WHPVPD\EHGLIIHUHQWGHSHQGLQJRQWKHQXPEHU
of servos, etc. and according to the wing type used.
However, reread them. The setup screens in the
instruction manual are typical examples.
ŏ5HWXUQWR+RPHVFUHHQ
ŏ7RXFKWKH0RGHO0HQXEXWWRQRIWKH+RPHVFUHHQWR
call this Model Menu.
ŏ:KHQWKHEXWWRQRIWKHIXQFWLRQ\RXZDQWWRVHWLV
touched, a setup screen appears.

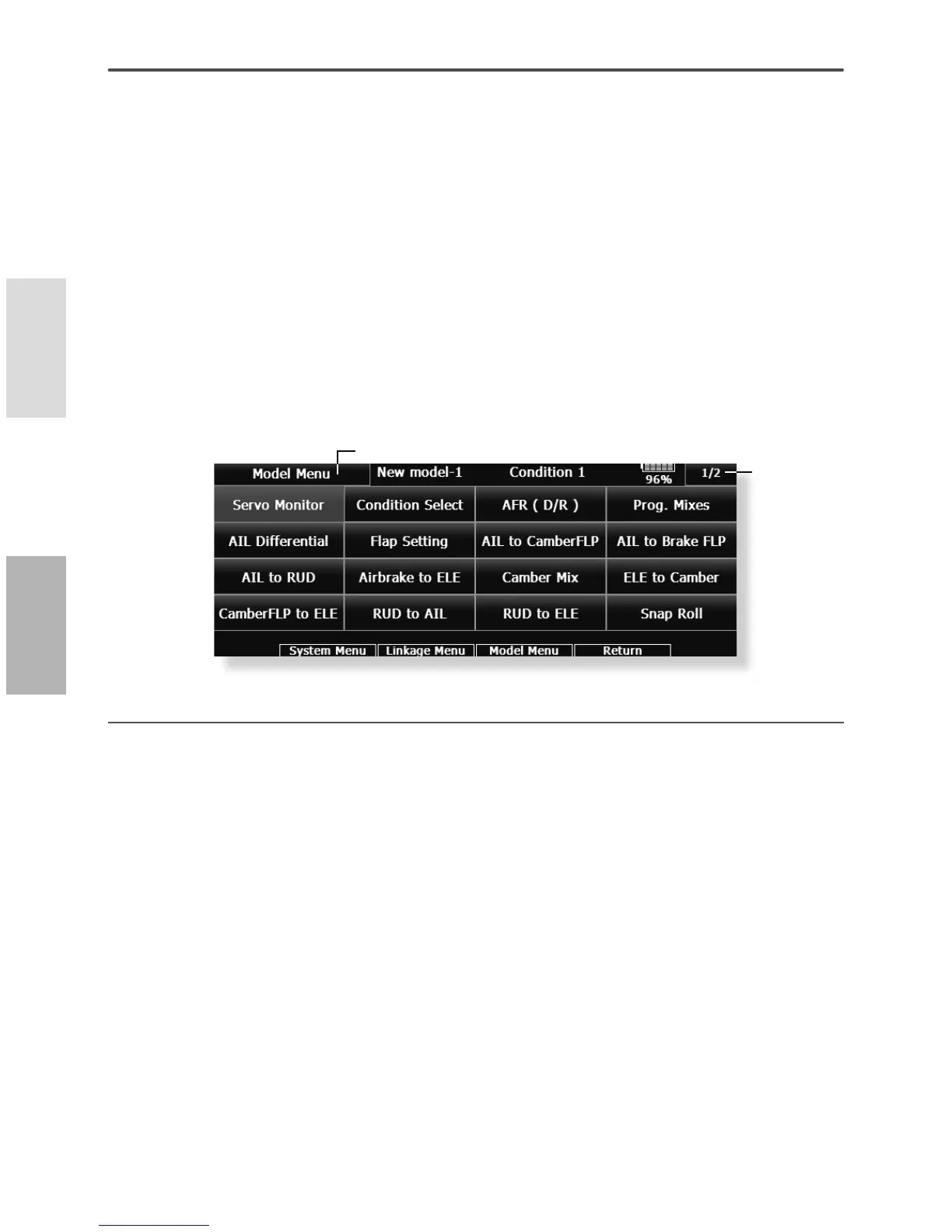

(Model Menu screen example)
*The Model Menu screen depends on the model type. This screen is for model type Airplane Wing Type 4AIL+4FLP.
ŏ7RQH[W
page
0RGHO0HQXIXQFWLRQVWDEOH
Ɣ$,/'LIIHUHQWLDO
This function adjusts the left and right ailerons.
Roll axis correction and ¿ne tuning with a VR are
also possible. This is convenient when making
settings during Àight.
[Airplane/glider, 2 ailerons or more]
Ɣ)ODS6HWWLQJ
The flaps can be adjusted independently. For a 4
flaps model, the camber flaps can be mixed with
the brake Àaps.
[Airplane/glider, 2 Àaps or more]
Ɣ$,/WR&DPEHU)/3
This mixing operates the camber Àaps in the aileron
mode. It improves the operation characteristic of
the roll axis.
[Airplane/glider, 2 ailerons + 2 Àaps or more]
Ɣ$,/WR%UDNH)/3
This mixing operates the brake Àaps in the aileron
mode. It improves the operation characteristic of
the roll axis.
[Airplane/glider, 4 Àaps or more]
Ɣ$,/WR58'
This mixing is used when you want to operate the
rudder with aileron operation. Banking at a shallow
bank angle is possible.
[Airplane/glider, 2 ailerons + 2 Àaps or more]
Ɣ$LUEUDNHWR(/(
This mixing is used to correct operation of the
airbrakes (spoilers) when landing.
[Airplane/glider, general]
Ɣ58'WR$,/
This mixing is used to correct roll maneuvers, knife
edge, etc. of stunt planes.
[Airplane/glider, general]
Ɣ&DPEHU0L[
This mixing adjusts the camber and corrects the
elevators.
[Airplane/glider, 2 ailerons or more]
$,53/$1(
*/,'(5
To Next Page
