FUTABA T18MZ WC - Receiver CH Mode

27
＜
Before Use
＞
R7008SB

CH Mode
The R7008SB receiver is a very versatile unit. It
has 8 PWM outputs, S.BUS and S.BUS2 outputs.
Additionally the PWM outputs can be changed from
channels 1-8 to channels 9-16. If you only desire to
use it as an 8 channel receiver (without S.BUS), it
can be used without any setting changes.
The T18MZ-WC has the ability to link to two
R7008SB receivers - one of them outputting
channels 1-8 and the other outputting channels 9-16,
giving you 16 PWM channels. Instructions for this
con¿guration and S.BUS operation follow.
[How to change the R7008SB Channel mode.@
1. Press and hold down the Link/Mode button on
the R7008SB receiver.
2. Turn the receiver on while holding down the
Link/Mode button. When the LED begins to
blink green/red the button may be released.
3. The LED should now be blinking red in one of
the patterns described by the chart below.
4. Each press of the Mode/Link button advances
the receiver to the next mode.
5. When you reach the mode that you wish to
operate in, press and hold the Mode/Link
button for more than 2 seconds.
6. Once locked into the correct mode the LED
will change to a solid color.
7. Please cycle the receiver(s) power off and
back on again after changing the Channel
Mode.

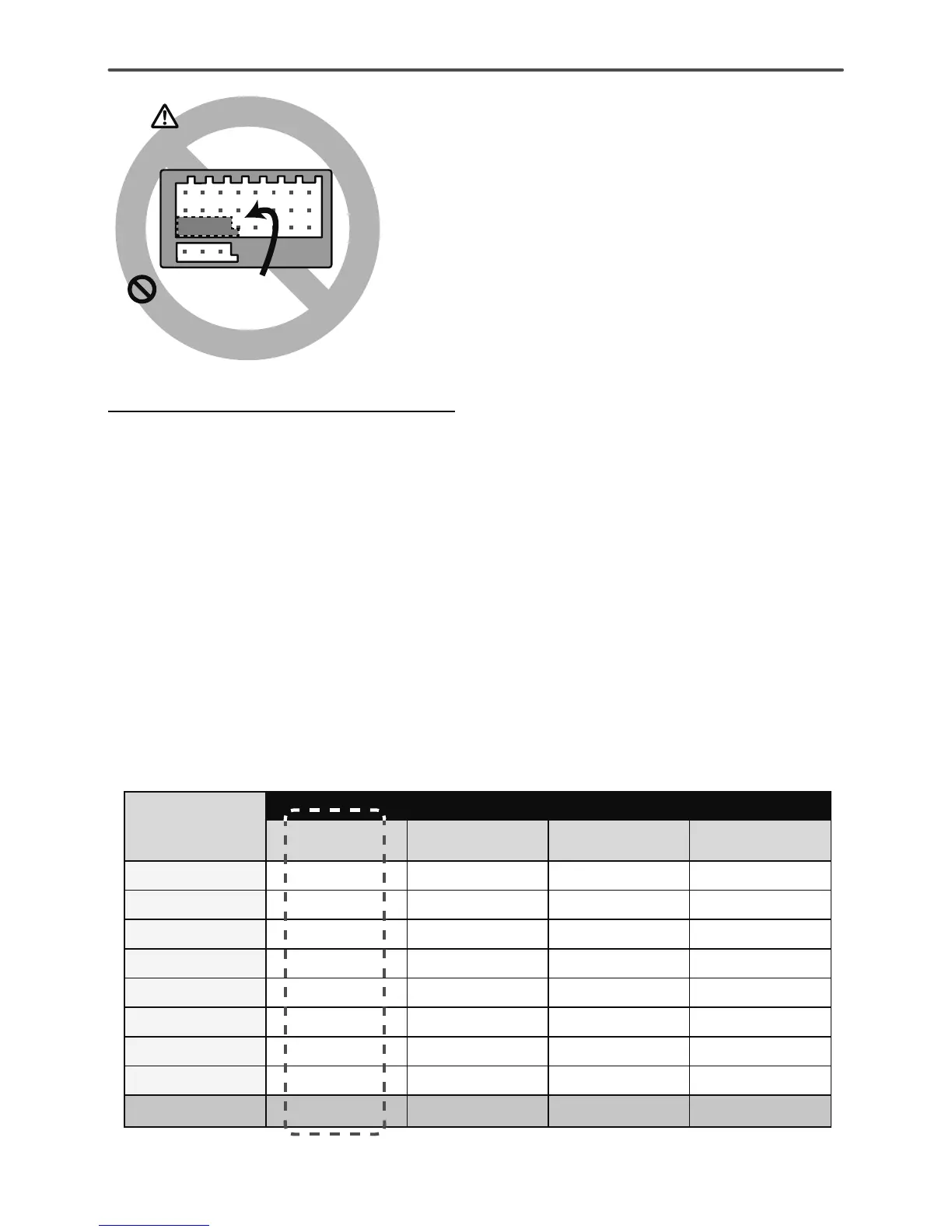

Receiver
connector
Settingchannel
ModeA
1 〜 8CH
ModeB
1 〜 7CH
ModeC
9 〜 16CH
ModeD
9 〜 15CH
11199
2 2 2 10 10
3 3 3 11 11
4 4 4 12 12
5 5 5 13 13
6 6 6 14 14
7/B 7 7 15 15
8/SB 8 S.BUS 16 S.BUS
RedLEDblink 1time 2times 3times 4times
56%&+02'(7$%/(
Don't connect neither a switch
nor a battery in this way.
* It will short-circuit, if it connects in this way.
A short circuit across the battery terminals may
cause abnormal heating, fire and burns.
5HFHLYHU
DANGER
Default
