Installing the Out-Front Mount
NOTE: If you do not have this mount, you can skip this task.
1 Select a secure location to mount the Edge device where it does not interfere with the safe operation of your
bike.

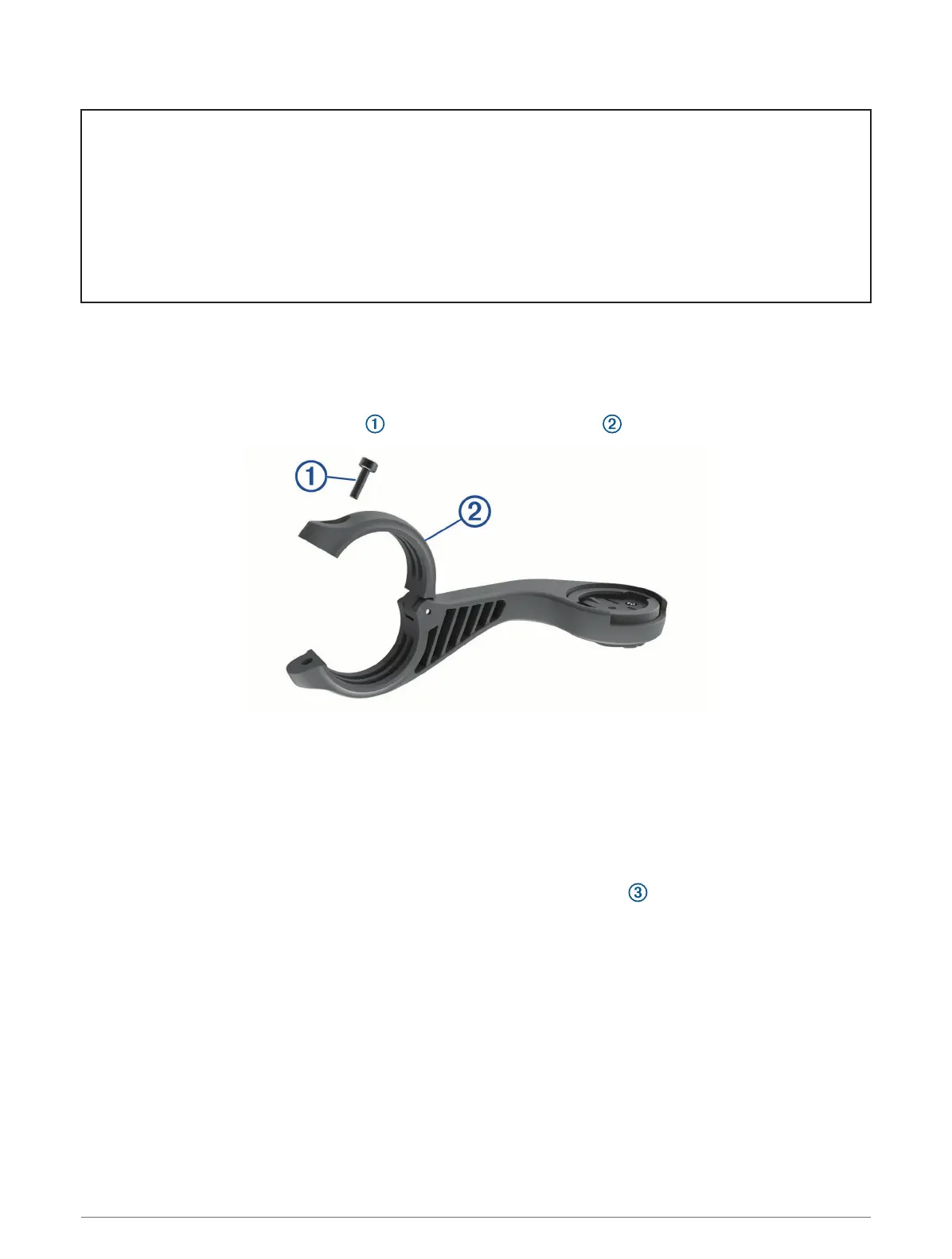

2 Use the hex key to remove the screw from the handlebar connector .
3 Place the rubber pad around the handlebar:
• If the handlebar diameter is 25.4 mm, use the thicker pad.
• If the handlebar diameter is 31.8 mm, use the thinner pad.
4 Place the handlebar connector around the rubber pad.
5 Replace and tighten the screw.
NOTE: Garmin
®
recommends tightening the screw so the mount is secure, with a maximum torque
specification of 7 lbf-in. (0.8 N-m). You should check the tightness of the screw periodically.
6 Align the tabs on the back of the Edge device with the bike mount notches .
