ENGINE & AIRFRAME SYSTEMS
3.2 SYNOPTICS
The Synoptics pages show current conditions of certain aircraft functionality on aviation system diagrams,
reducing workload by allowing the flight crew to rapidly analyze the situation. Aircraft systems graphically
depicted in the synoptic diagrams include:
• Electrical system
• Fuel system
• De-ice system
• Doors
Once the SYSTEM Softkey is selected, the Synoptics pages can be accessed using softkeys or the small FMS
Knob. To return to the previously displayed page when a Synoptics Page has been displayed, select the SYSTEM
Softkey or CLR Key, or turn the large FMS Knob.
SYSTEM
SYSTEM
CPDLC
MAP
ELEC
CHKLIST FUEL GEN

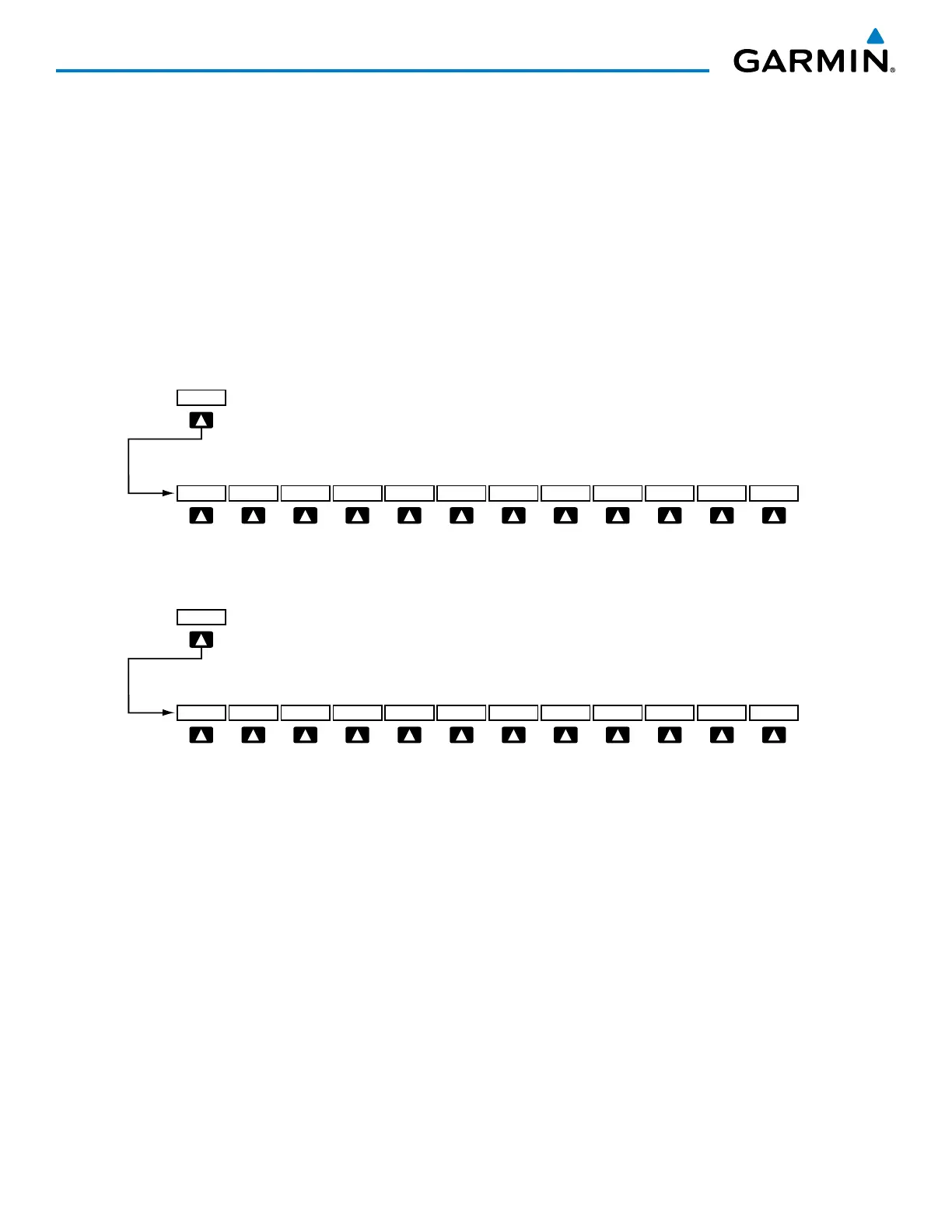

Figure 3-18 TBM 850 Synoptic Pages Softkeys
SYSTEM
SYSTEM
CPDLC
MAP
ELEC
CHKLIST FUEL GEN
MAN LFE FMS LFE
Figure 3-19 TBM 900 Synoptic Pages Softkeys
• SYSTEM
Accesses the Synoptics page softkeys and LFE softkeys
• ELEC
Displays the Electrical Synoptics Page
• FUEL
Displays the Fuel Synoptics Page
• GEN
Displays the General Synoptics Page for the de-ice system and doors

Garmin G1000 Specifications

General

Display Type	LCD
Primary Flight Display (PFD)	Yes
Multi-Function Display (MFD)	Yes
Terrain Awareness	Yes
Autopilot Integration	Yes
Integrated Flight Deck System	Yes
Weather Radar	Optional
Traffic Advisory System (TAS)	Optional
Terrain Awareness and Warning System (TAWS)	Yes
Resolution	1024 x 768 pixels
Weather Data	Yes
Navigation	Yes
AHRS	Yes
Air Data Computer (ADC)	Yes
Interfaces	ARINC 429, RS-232
Certification	TSO certified
Traffic Information	Optional (requires ADS-B or TCAS)
