AUTOMATIC FLIGHT CONTROL SYSTEM
AFCS STATUS BOX
Flight director mode annunciations are displayed on the PFDs when the flight director is active. Flight
director selection and autopilot and yaw damper statuses are shown in the center of the AFCS Status Box.
Lateral flight director modes are displayed on the left and vertical on the right. Armed modes are displayed in
white and active in green.
GPS is
Selected
Navigation
Source
Command
Bars
Vertical
Speed
Reference
Selected
Altitude

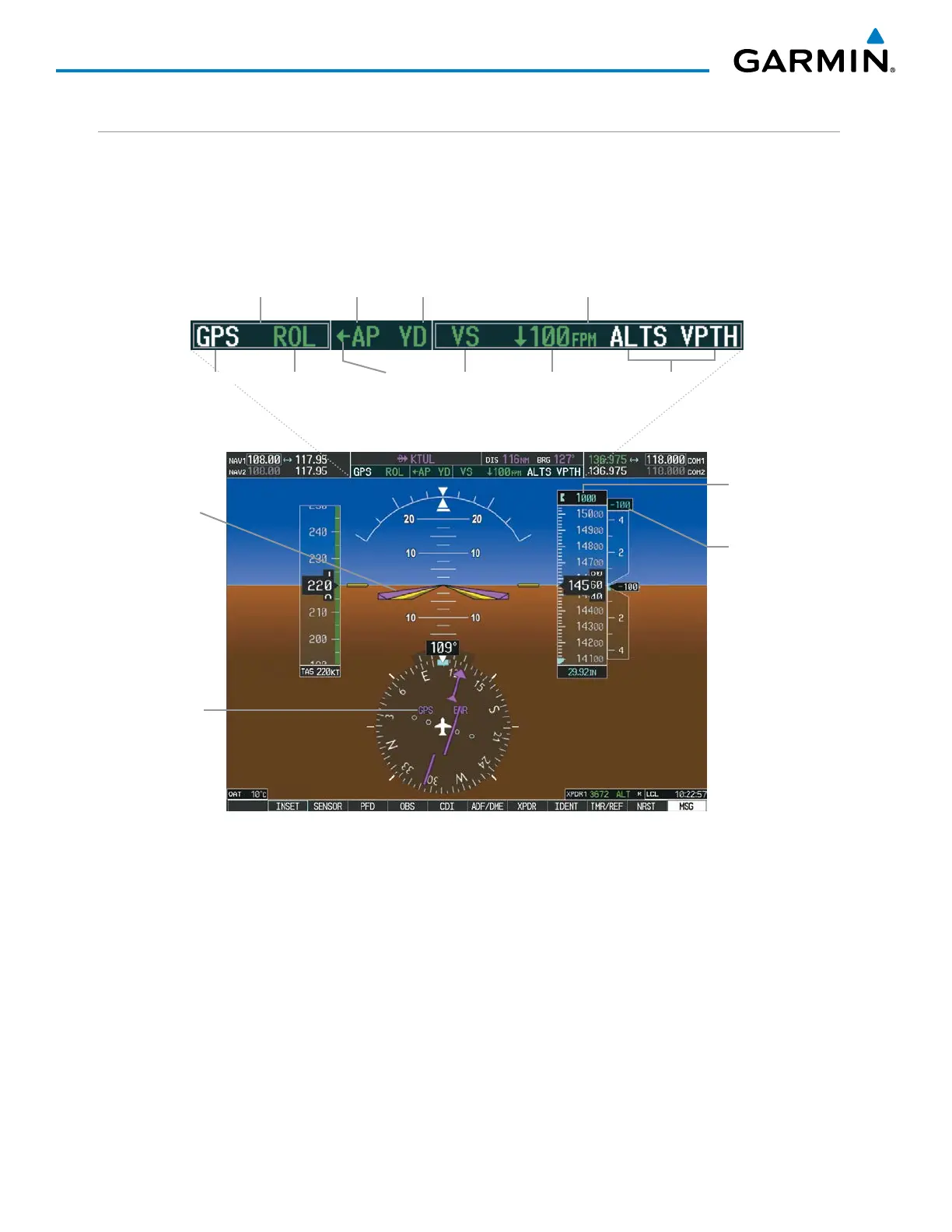

Figure 7-2 PFD AFCS Display
AFCS Status Box
Flight Director
Indicator Arrow
Active
Active
Yaw
Damper
Status
Lateral Modes
Autopilot
Status
Vertical Modes
Mode
Reference
Armed Armed
