Garmin G1000 Pilot’s Guide for the Socata TBM 850/900
453
HAZARD AVOIDANCE

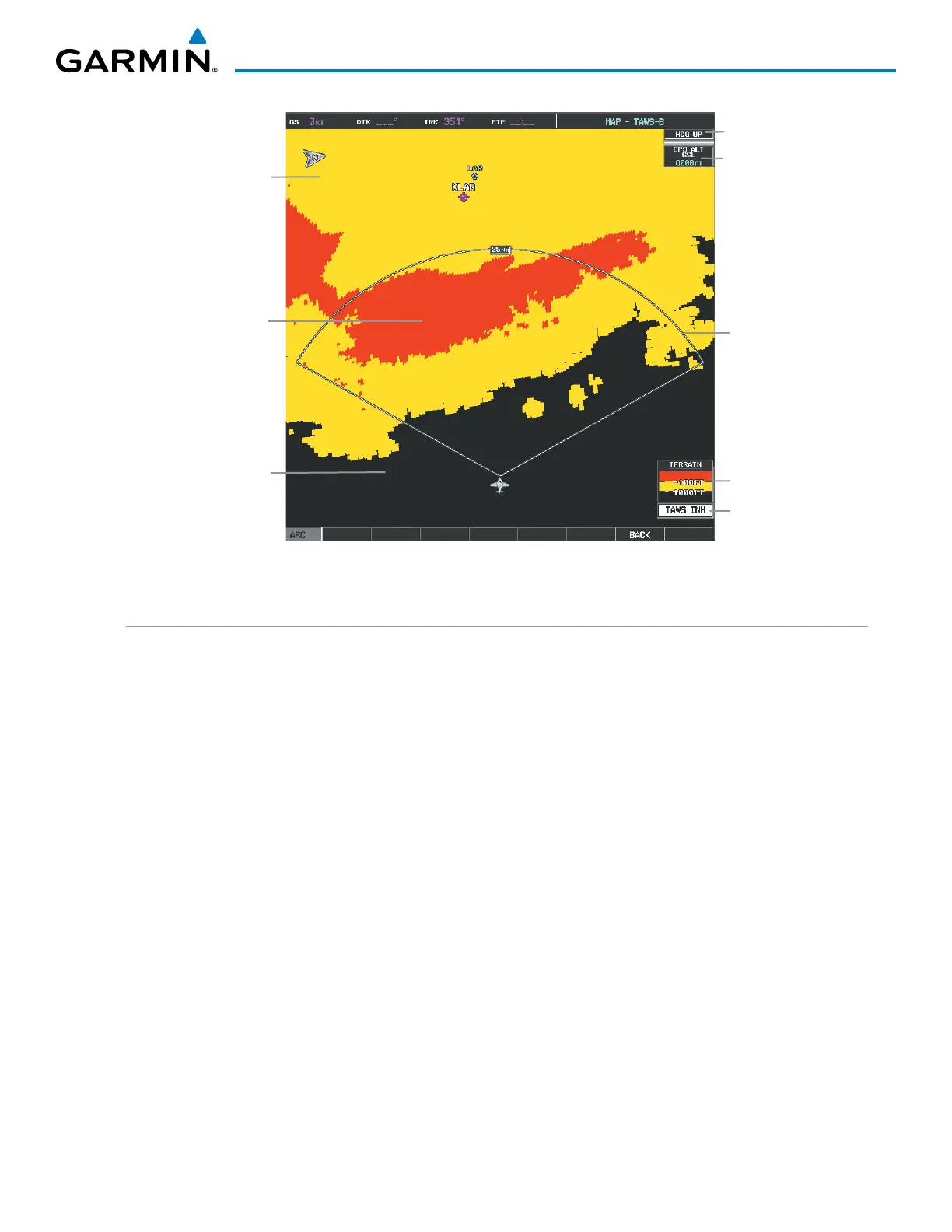

Figure 6-147 TAWS-B Page, ARC View
Yellow Terrain
(Between 100’ and 1000’
Below the Aircraft Altitude)
Red Terrain
(Above or Within 100’
Below the Aircraft Altitude)
Black Terrain
(More than 1000’ Below
the Aircraft Altitude)
Map Range Arc
Terrain Legend
Annunciation Window
Map Orientation
Current Aircraft GPS-
derived GSL Altitude
TAWS-B ALERTS
Alerts are issued when flight conditions meet parameters that are set within TAWS-B software algorithms.
TAWS-B alerts typically employ a CAUTION or a WARNING alert severity level, or both. When an alert
is issued, visual annunciations are displayed and voice alerts are simultaneously issued. Table 6-22 shows
TAWS-B alert types with corresponding annunciations and voice alerts.
When an alert is issued, annunciations appear on the PFD and MFD. The TAWS-B Alert Annunciation is
shown to the upper left of the Altimeter on the PFD and below the Terrain Legend on the MFD. If the TAWS-B
Page is not displayed at the time, a pop-up alert appears on the MFD. To acknowledge the pop-up alert:
• Press the CLR Key (returns to the currently viewed page), or
• Press the ENT Key (accesses the TAWS-B Page)

Garmin G1000 Specifications

General

Display Type	LCD
Primary Flight Display (PFD)	Yes
Multi-Function Display (MFD)	Yes
Terrain Awareness	Yes
Autopilot Integration	Yes
Integrated Flight Deck System	Yes
Weather Radar	Optional
Traffic Advisory System (TAS)	Optional
Terrain Awareness and Warning System (TAWS)	Yes
Resolution	1024 x 768 pixels
Weather Data	Yes
Navigation	Yes
AHRS	Yes
Air Data Computer (ADC)	Yes
Interfaces	ARINC 429, RS-232
Certification	TSO certified
Traffic Information	Optional (requires ADS-B or TCAS)
