190-00709-05 Rev. D
Garmin G1000 Pilot’s Guide for the Socata TBM 850/900
154
AUDIO PANEL AND CNS
TRANSPONDER MODE SELECTION
Mode selection can be automatic (Ground and Altitude Modes) or manual (Standby, ON, and Altitude Modes).
The
STBY
,
ON,
and
ALT
Softkeys can be accessed by pressing the
XPDR
Softkey.
Selecting a transponder mode:
1) Press the
XPDR
Softkey to display the Transponder Mode Selection Softkeys.
2) Press the desired softkey to activate the transponder mode.
GROUND MODE
Ground Mode is normally selected automatically when the aircraft is on the ground. The transponder
powers up in the last mode it was in when shut down. Ground Mode can be overridden by pressing any one
of the Mode Selection Softkeys. A green GND indication and transponder code appear in the mode field of
the Transponder Data Box. In Ground Mode, the transponder does not allow Mode A and Mode C replies,
but it does permit acquisition squitter and replies to discretely addressed Mode S interrogations.
When Standby Mode has been selected on the ground, the transponder can be returned to Ground Mode
by pressing the GND Softkey.
GND
Mode

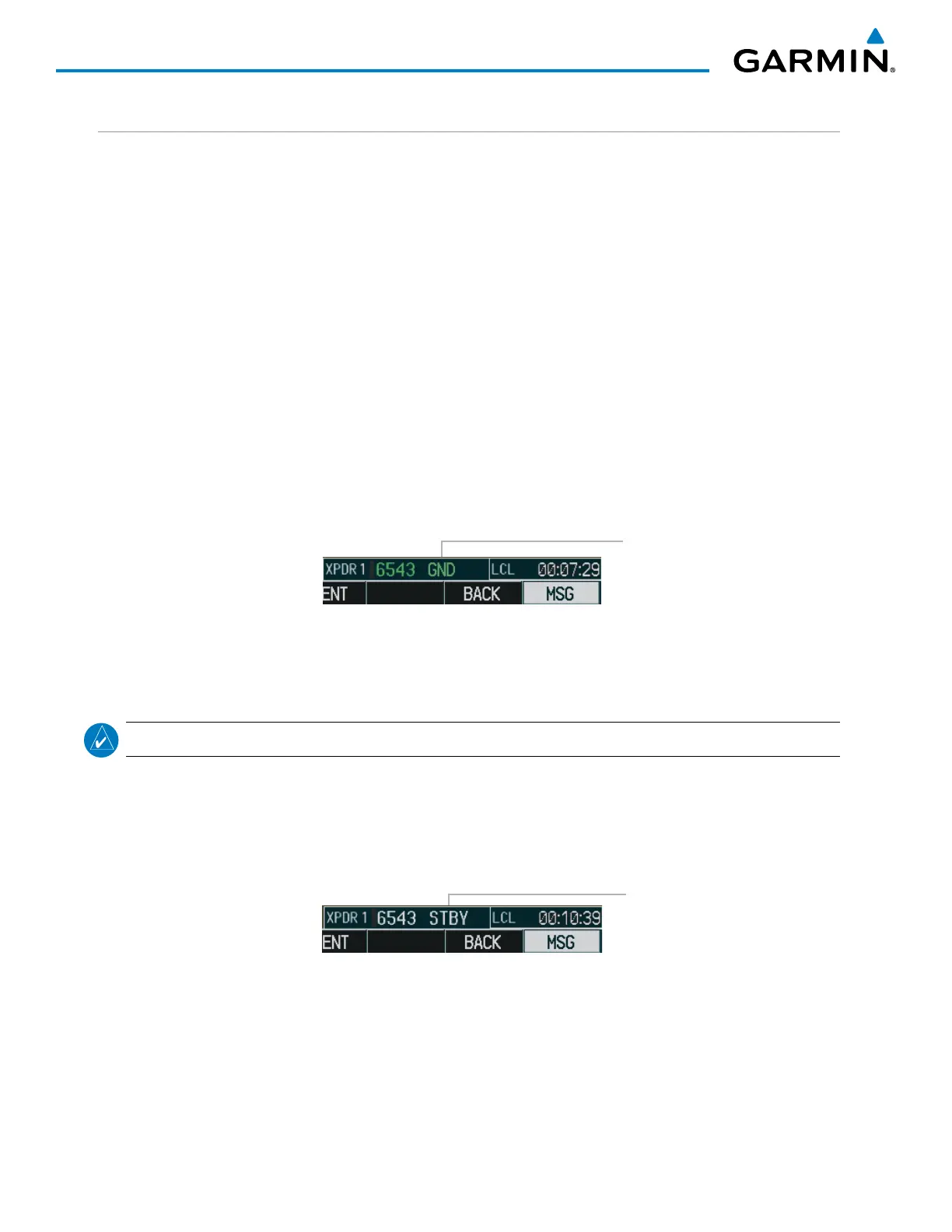

Figure 4-47 Ground Mode
STANDBY MODE (MANUAL)
NOTE: In Standby Mode, the IDENT function is inhibited.
Standby Mode can be selected at any time by pressing the
STBY
Softkey. In Standby, the transponder does
not reply to interrogations, but new codes can be entered. When Standby is selected, a white
STBY
indication
and transponder code appear in the mode field of the Transponder Data Box. In all other modes, these fields
appear in green.
STBY Mode (White
Code Number and
Mode)
Figure 4-48 Standby Mode
