Garmin G1000 Pilot’s Guide for the Socata TBM 850/900
190-00709-05 Rev. D 551
ADDITIONAL FEATURES
SVT FEATURES

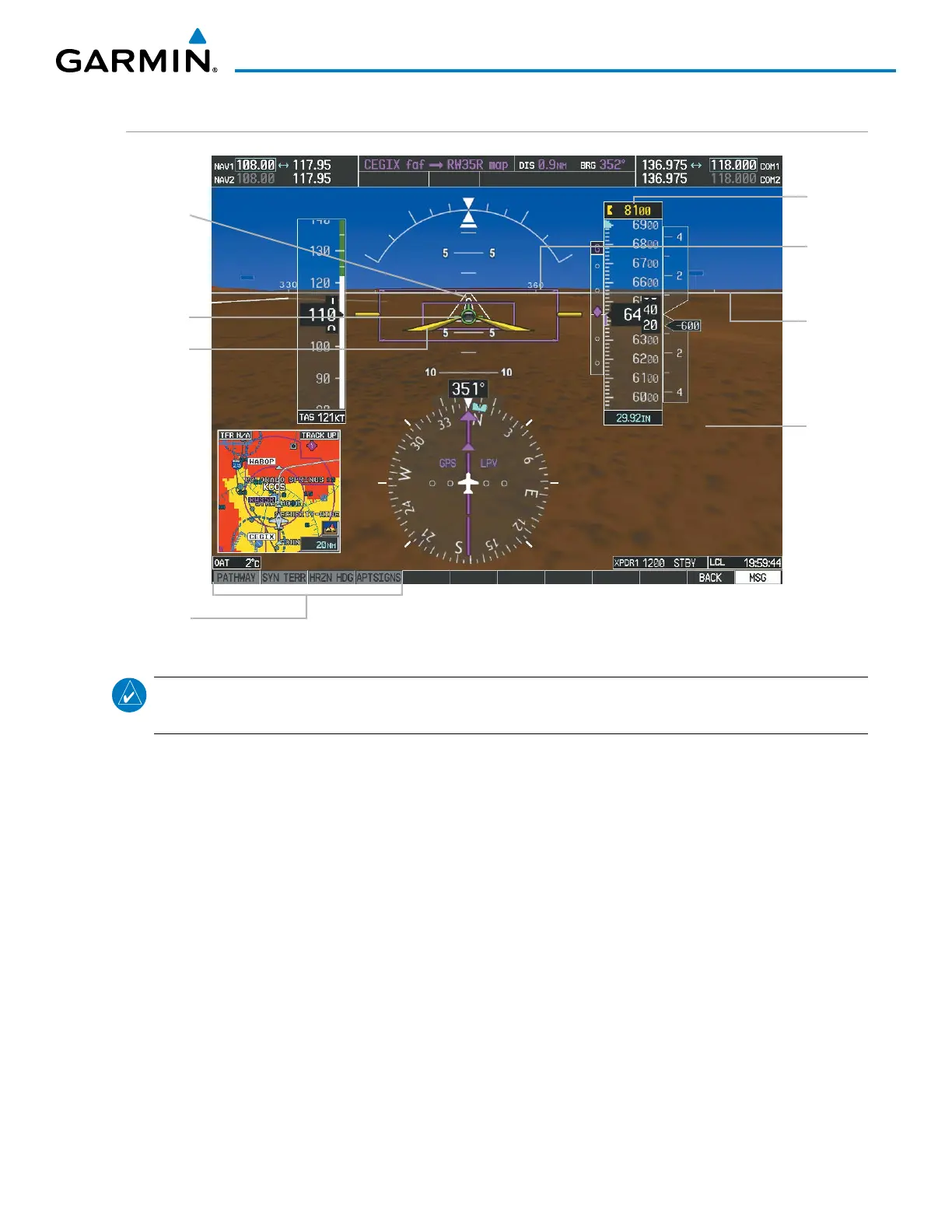

Figure 8-3 SVT on the Primary Flight Display
SVT
Softkeys
Synthetic
Terrain
Pathways
Color
matches
CDI color
Flight
Path
Marker
Airport
Runway
Zero
Pitch Line
(ZPL) with
Compass
Heading
Marks
Airplane
Symbol
Selected
Altitude
NOTE: Pathways and terrain features are not a substitute for standard course and altitude deviation
information provided by the altimeter, CDI, and VDI.
PATHWAYS
Pathways provide a three-dimensional perspective view of the selected route of flight shown as colored rectangular
boxes representing the horizontal and vertical flight path of the active flight plan. The box size represents 700 feet
wide by 200 feet tall during enroute, oceanic, and terminal flight phases. During an approach, the box width is
700 feet or one half full scale deviation on the HSI, whichever is less. The height is 200 feet or one half full scale
deviation on the VDI, whichever is less. The altitude at which the pathway boxes are displayed is determined by
the selected altitude during climb, cruise, and when the active leg is the final approach course prior to intercepting
the glidepath/glideslope. During a descent (except while on the approach glidepath/glideslope), the pathway boxes
are displayed at the selected altitude, or the VNAV altitude programmed for the active leg in the flight plan, or the
published altitude constraint, whichever is higher (Figure 8-4). Just prior to intercepting the glidepath/glideslope,
the pathway boxes are displayed on the glidepath/glideslope, or the selected altitude, whichever is lower.
The color of the rectangular boxes may be magenta, green, or white depending on the route of flight and
navigation source selected. The active GPS or GPS overlay flight plan leg is represented by magenta boxes that
correspond to the Magenta CDI. A localizer course is represented by green boxes that correspond to a green CDI.
An inactive leg of an active flight plan is represented by white boxes corresponding to a white line drawn on the
Inset map or MFD map indicating an inactive leg.
