190-00709-05 Rev. D Garmin G1000 Pilot’s Guide for the Socata TBM 850/900 138
AUDIO PANEL AND CNS
DISCONNECTING FROM THE CPDLC SYSTEM
After successfully initiating a CPDLC session, the LOGOFF Softkey becomes available.
To Log-off the CPDLC System:
1) From the MFD, select the CPDLC Softkey.
2) Select the LOGOFF Softkey.
ENABLING/DISABLING DATA MODE
The Link 2000+ will only operate when the GDR 66 is in data mode. There are times when it may be
desirable to enable or disable the VDL (VHF Data Link) connection.
To enable/disable data mode on the GDR 66:
1) From the MFD, select the CPDLC Softkey.
2) Press the Menu Key to display the page menu.
3) Turn the small FMS Knob to highlight ‘Disable Data Mode’ or ‘Enable Data Mode’ and press the ENT Key.
CPDLC SYSTEM FAILURE

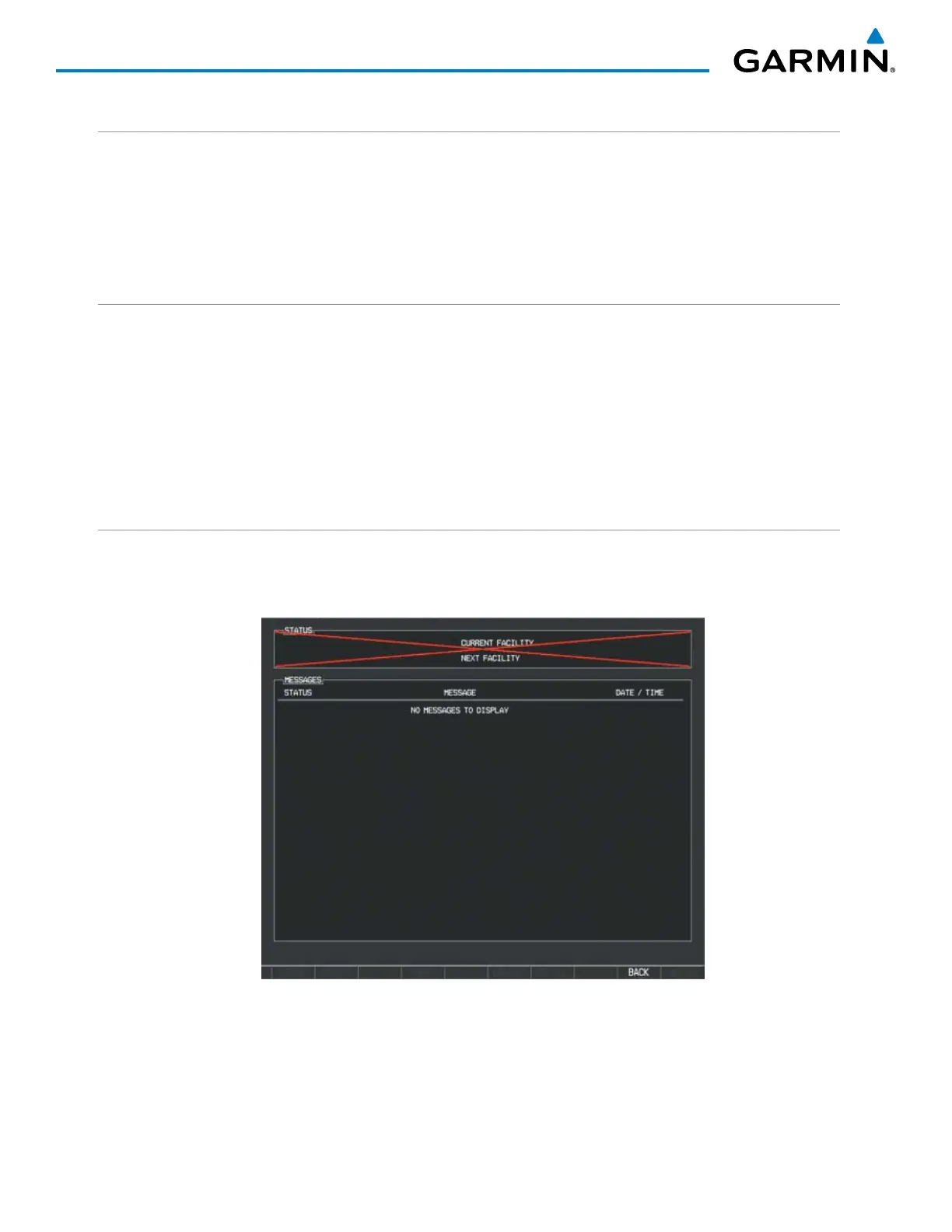

A red “X” over the Status Window on the CPDLC Messages Page indicates that the system is unavailable. The
failure or loss of connectivity can result from a power loss, a data path loss, or improper configuration. Refer to
the system messages in the Appendices for additional information describing the source of the failure.
Figure 4-27 CPDLC Failure

Garmin G1000 Specifications

General

Display Type	LCD
Primary Flight Display (PFD)	Yes
Multi-Function Display (MFD)	Yes
Terrain Awareness	Yes
Autopilot Integration	Yes
Integrated Flight Deck System	Yes
Weather Radar	Optional
Traffic Advisory System (TAS)	Optional
Terrain Awareness and Warning System (TAWS)	Yes
Resolution	1024 x 768 pixels
Weather Data	Yes
Navigation	Yes
AHRS	Yes
Air Data Computer (ADC)	Yes
Interfaces	ARINC 429, RS-232
Certification	TSO certified
Traffic Information	Optional (requires ADS-B or TCAS)
