190-00709-05 Rev. D
Garmin G1000 Pilot’s Guide for the Socata TBM 850/900
77
FLIGHT INSTRUMENTS
2.2 SUPPLEMENTAL FLIGHT DATA
NOTE: Selecting the DFLTS Softkey turns off metric altimeter display, Hpa Baro Setting, the Inset Map, and
wind data display.
In addition to the flight instruments, the PFD also displays various supplemental information, including
temperatures, wind data, and Vertical Navigation (VNV) indications.
TEMPERATURE DISPLAYS
The Outside Air Temperature (OAT) is displayed in degrees Celsius (°C) by default in the lower left of the PFD
under normal display conditions, or below the true airspeed in reversionary mode.

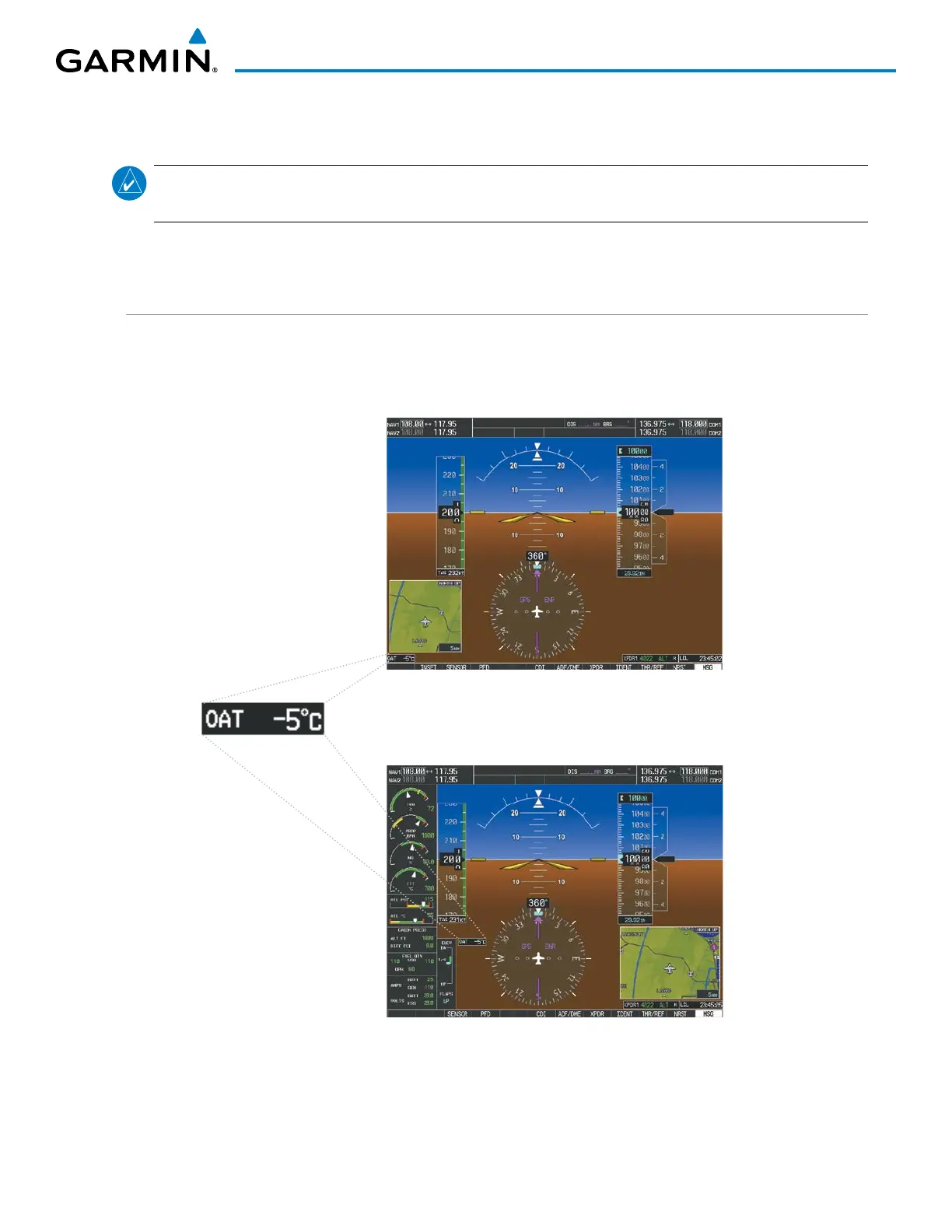

Figure 2-34 Outside Air Temperature
Reversionary Mode
Normal Display
