MDE-5411A ForeHB Islander Prime Installation Manual · October 2018 Page 25
4.3 Station Survey Preliminary Guidelines
4.3.3.4 Mapping
Draw a map of the site.
Note: The map methodology and IDs will be used for setup configuration.
4.3.4 Connections
All connections to Islander Prime must be performed to the terminal block and to the Ethernet
port located at the bottom of the Islander Prime pedestal (see Figure 10).

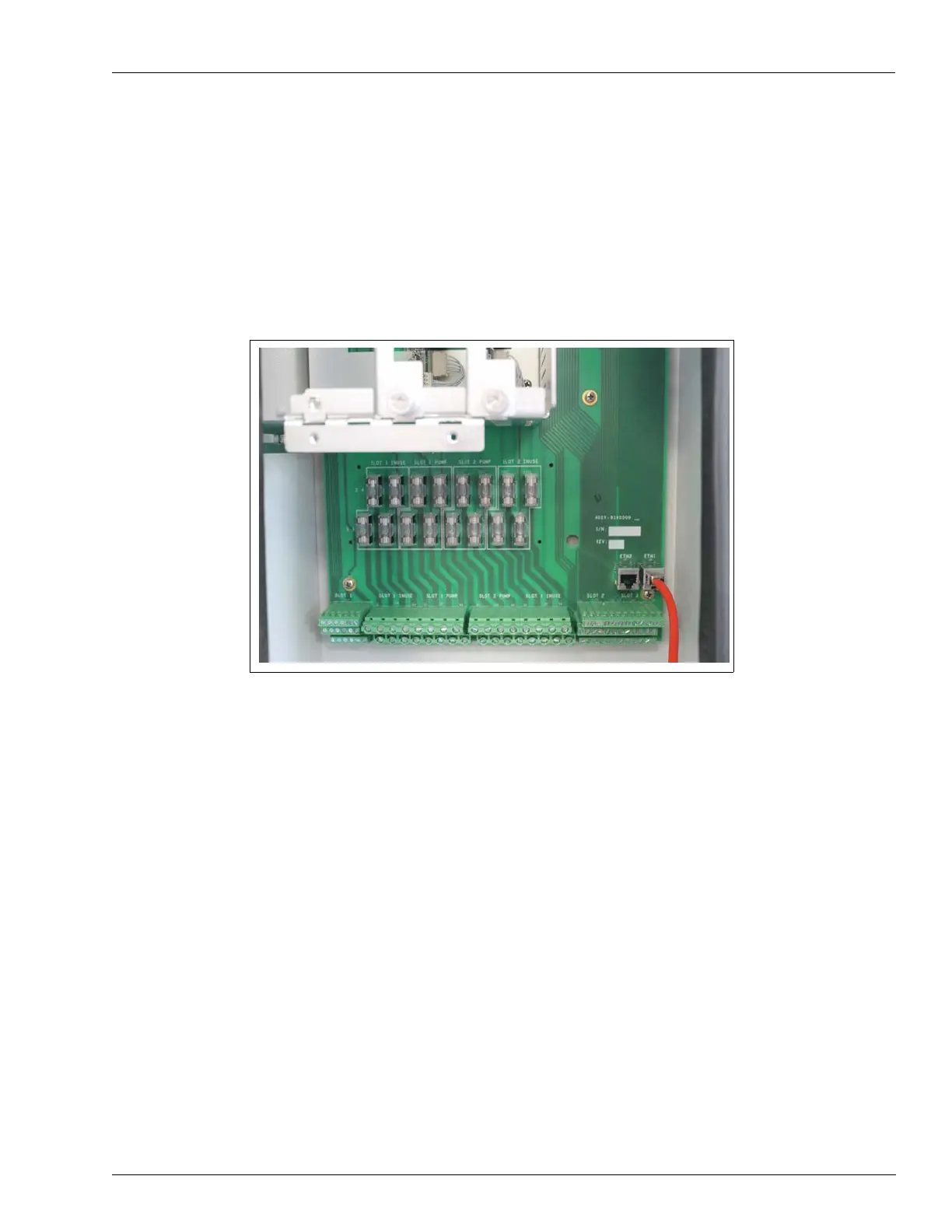

Figure 10: Terminal Block, Power, and LAN Connections (8 Pumps)
The required connections are as follows:
Dispenser wiring connections
- Pulser (Low Voltage)
- In Use
signal (High voltage)
- Valve (High voltage)
Communications
- RS-232/LAN to TLG console to fuel tank
- RS-485 for
Gasboy peripheral device
- Pump communication line (e.g. Current Loop, RS-485, Tokheim, RS-422)
Mains AC Power and Ground
LAN connection
ETH1 for technician and maintenance
ETH2 secured WAN
