Gasboy Islander Prime User Manual

MDE-5411A ForeHB Islander Prime Installation Manual · October 2018 Page 65
5.5 Installing Communication Interfaces Installation
5.5.5.3 RS-485

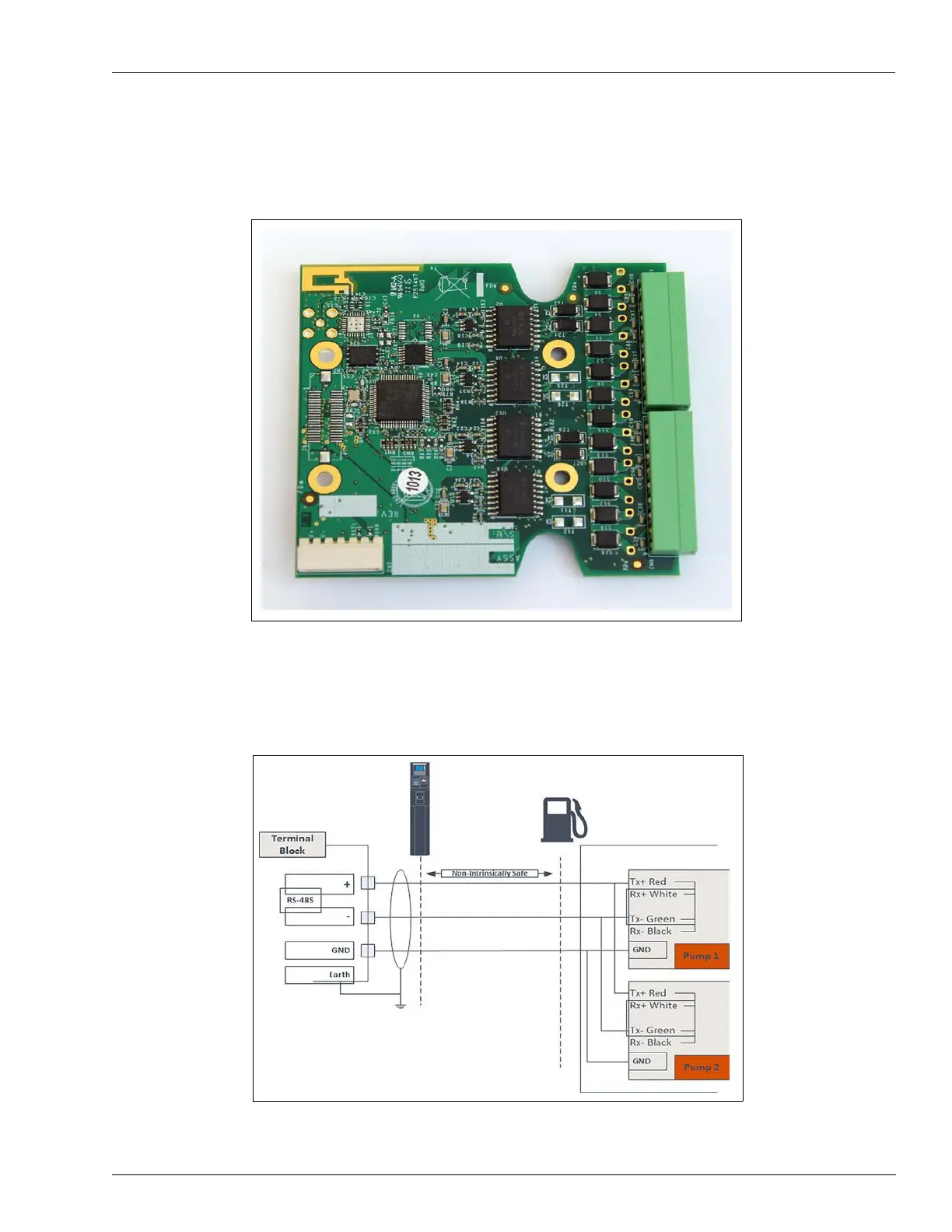

The RS-485 electronic interface appears as follows (see Figure 54):
Figure 54: RS-485 Electronic Interface
The following show the parallel connection between two Gasboy RS-485 pumps and the
terminal block (see Figure 55):
Figure 55: RS-485 Device - Wiring Diagram

Gasboy Islander Prime Specifications

General

Brand	Gasboy
Model	Islander Prime
Category	Control Systems
Language	English
