5.3 Installing the Pedestal Base Installation
5.3.5 Pedestal
To install the pedestal, proceed as follows:
1 Remove the four M10 nuts from the four bolts attached to the bottom plate 
(step 2 in Figure 20).

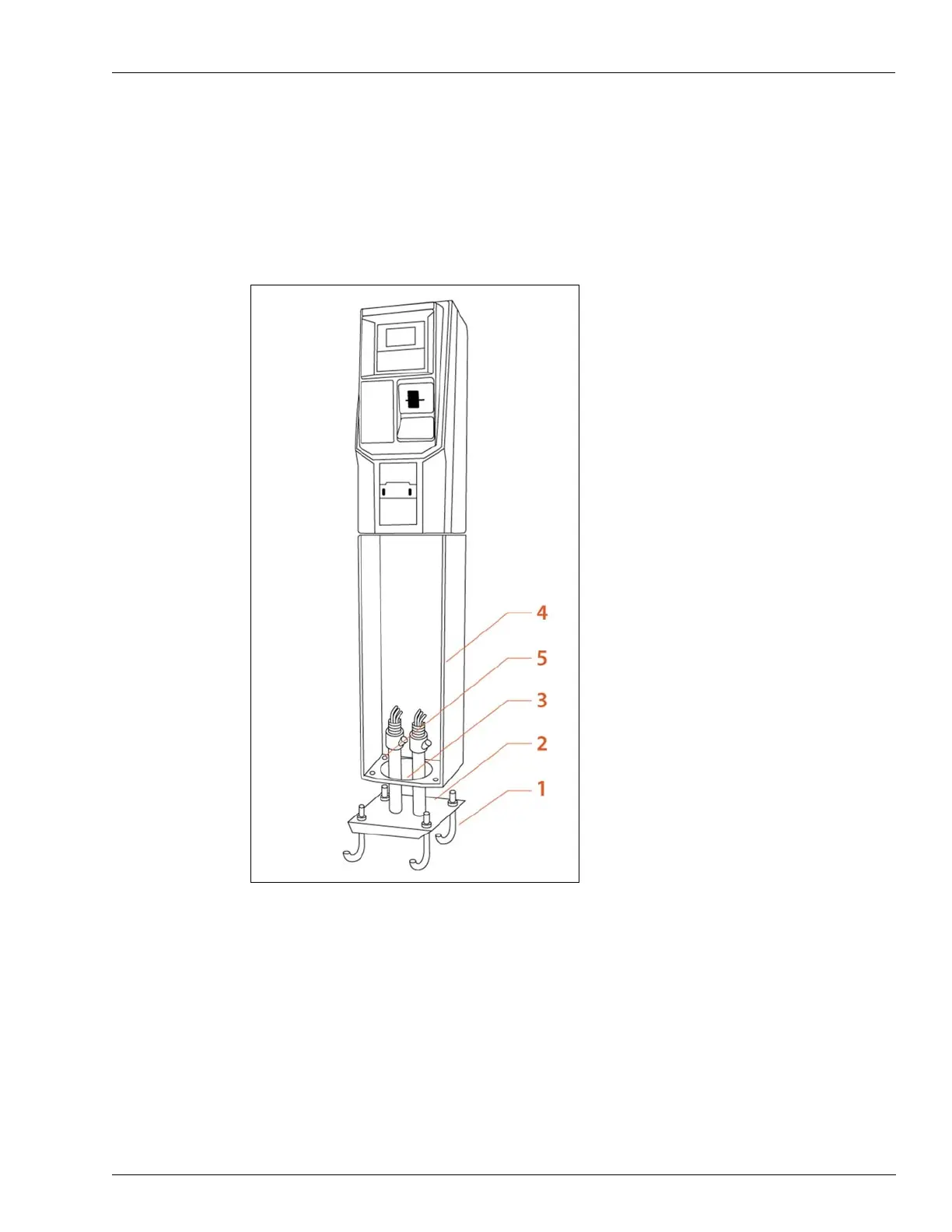

Figure 20: Pedestal Base Installation
2 Remove the front panel of the pedestal base to enable you to reach the bolts inside.
3 Install the pedestal base on top of the bottom plate (step 4 in Figure 20).
4 Anchor the pedestal base onto the base plate with the four bolts protruding from the inner
ground.
5 Secure the pedestal base to the base plate with four M10 flat washers and M10 nuts 
(step 5 in Figure 20).
