6 Mount the pedestal on top of the pedestal base, using the 4 sets of bolts provided with the
pedestal to fasten the pedestal to the base.
7 Fasten the front panel to the pedestal base.
5.3.6 Sealing Conduits
The conduits shall be sealed in accordance with NFPA requirements and local regulations, to
prevent the passage of gases through conduits, cables and conductors. The fittings are required
wherever volatile liquids or gases are present in the surroundings.
Note: Install the seal under the barrier plate with the threaded end protruding through the
knockout opening.
5.4 Installing Options
Islander Prime can be provided in a number of configurations that include a variety of optional
add-ons. The following optional add-ons are available:
• Barcode reader
• HID Reader
• Card reader
• Cellular modem
• Receipt printer
Depending upon customer requirements, the Islander Prime may be delivered pre-assembled
with all add-ons installed offsite, or it may be delivered empty, with all openings on the front
of the pole covered by removable panels (see Figure 21). If the add-ons shall be assembled on
site, the panels are removed as needed to install each add-on. Installation directions for each
add-on are detailed below.

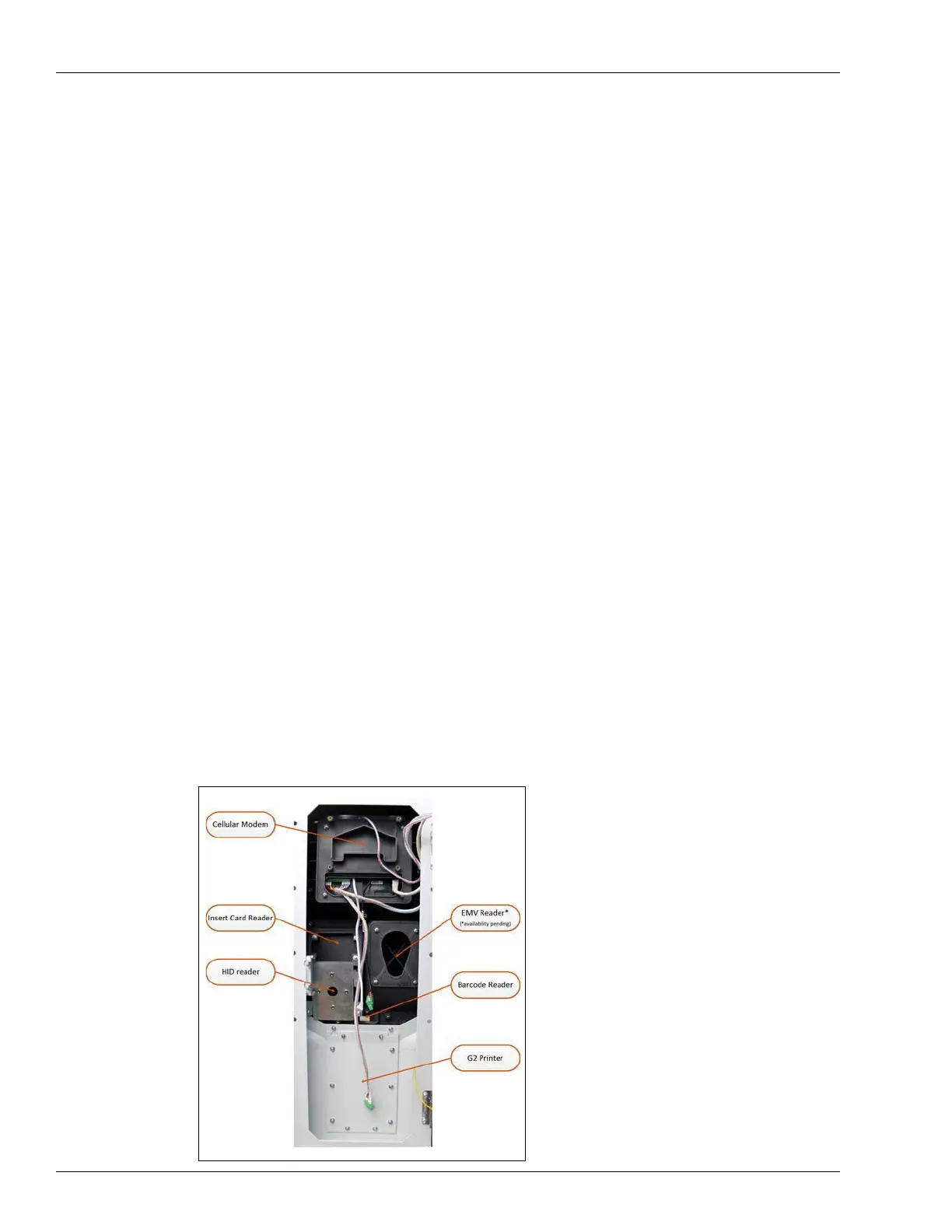

Figure 21: Islander Prime Pole Door
