MDE-5411A ForeHB Islander Prime Installation Manual · October 2018 Page 33
4.6 Power Setup Preliminary Guidelines
4.6.1 Connection Diagram
The following diagram shows the requested connections of the power equipment 
(see Figure 14):

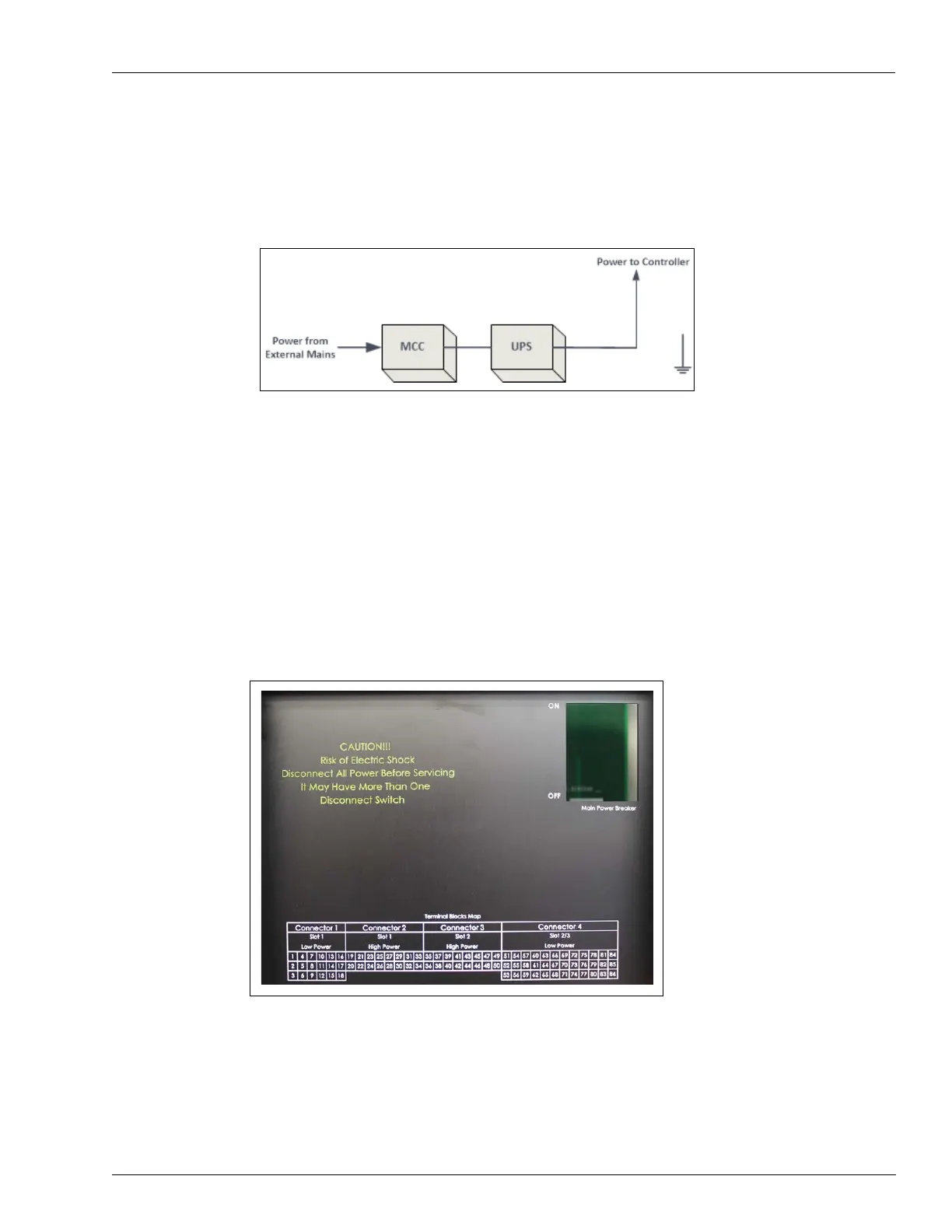

Figure 14: Power Equipment Connections
Apart from the power equipment, other components should be connected to the power supply
such as the TLG and dispensers.
4.6.2 Power Supply Setup
The Islander Prime power supply can be connected 110 VAC - 220 VAC. The mains cable is
first connected to the terminal block. Between the terminal block and power supply, the
system uses a line filter in order to attenuate conducted radio frequencies - RFI,
Electromagnetic Interference (EMI) - between the line and the equipment (see Figure 15).
Figure 15: Power Supply Components
