MDE-5411A ForeHB Islander Prime Installation Manual · October 2018 Page 61
5.5 Installing Communication Interfaces Installation
5.5.4.1 Electronic Pulser - Three-Wire Pulser
Note: A three-wire pulser requires an external power source (12 V) in order to operate.

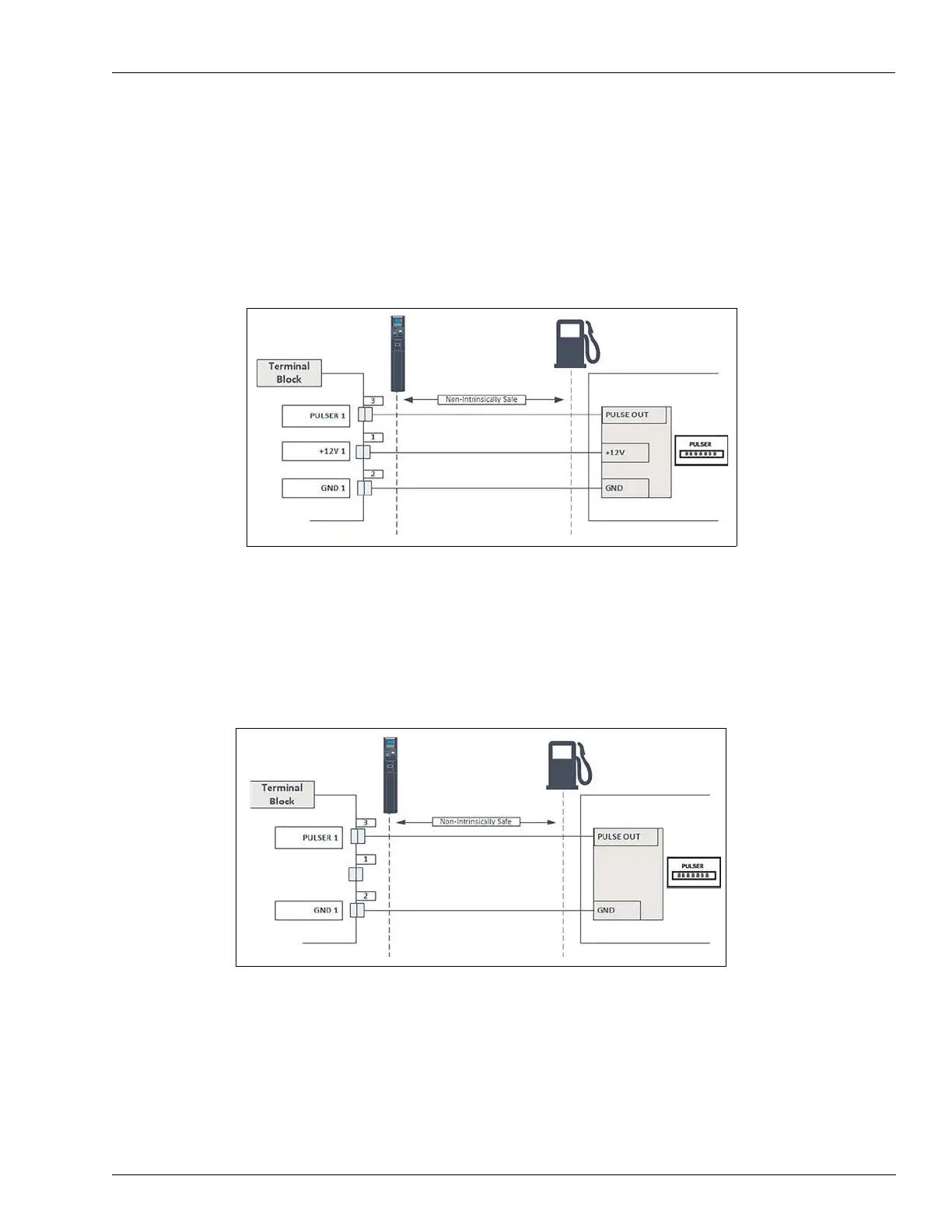

The following is a schematic diagram of the connec
tions between the terminal block and a
three-wire pulser (see Figure 49):
Figure 49: Three-Wire Pulser Wiring Connections
5.5.4.2 Mechanical Pulser - Two-Wire Pulser
The following is a schematic diagram of the connections between the terminal block and a
two-wire pulser (see Figure 50):
Figure 50: Two-Wire Pulser Wiring Connections
