MDE-5411A ForeHB Islander Prime Installation Manual · October 2018 Page 49
5.4 Installing Options Installation

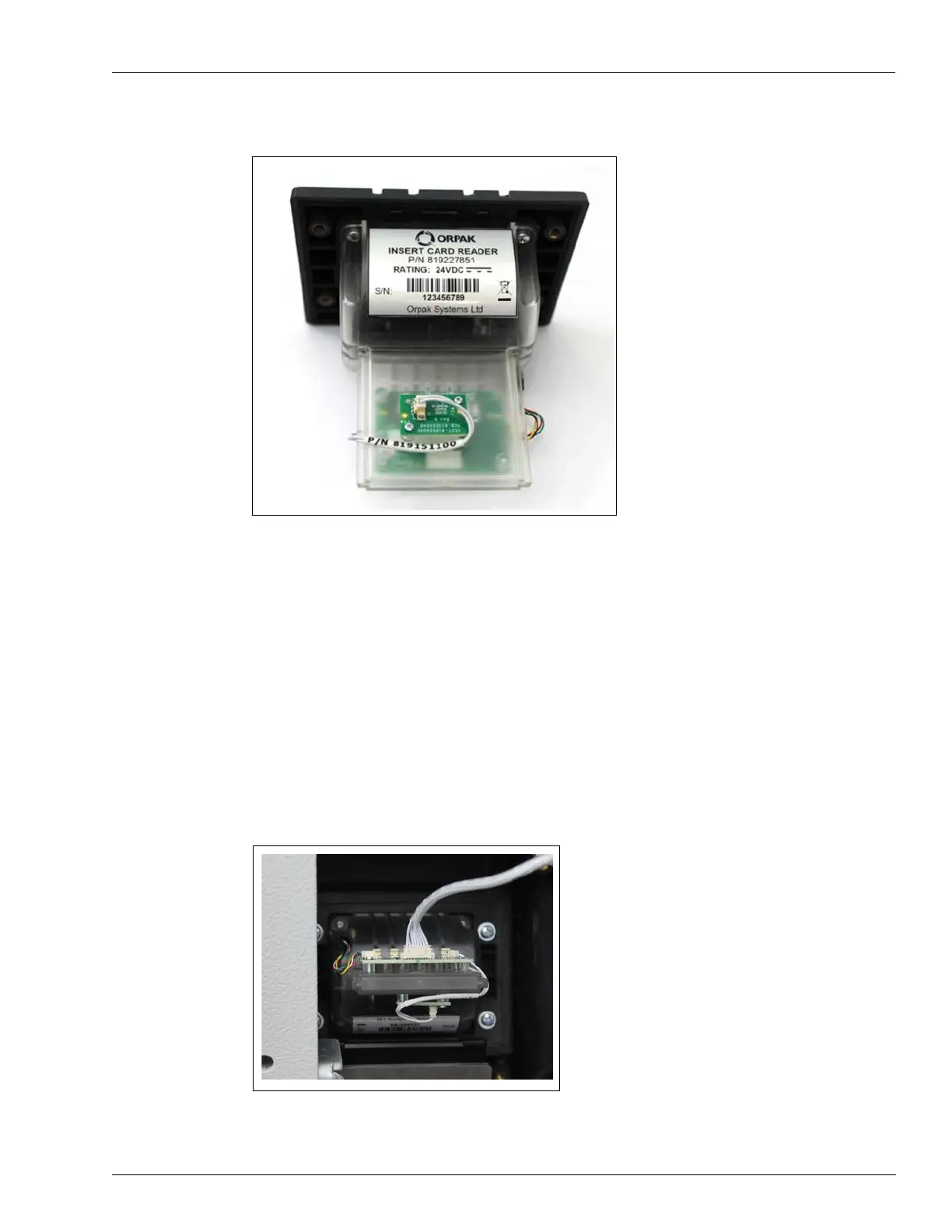

Figure 33: Insertion Card Reader Label
To install an insertion card reader in the Islander Prime, proceed as follows:
1 Remove the screws affixing the front panel to the Islander Prime pole.
2 Place the insertion card reader into the opening light stripe side up.
3 Use the screws provided in the installation kit to secure the insertion card reader to the Islander
Prime pole door.
4 Connect the insertion card reader cable from the OrPAY1000 to the socket on the insertion
card reader device (see Figure 34).
Figure 34: Insertion Card Reader Mounted in Islander Prime
