MDE-5411A ForeHB Islander Prime Installation Manual · October 2018 Page 27
4.4 Conduits Preliminary Guidelines

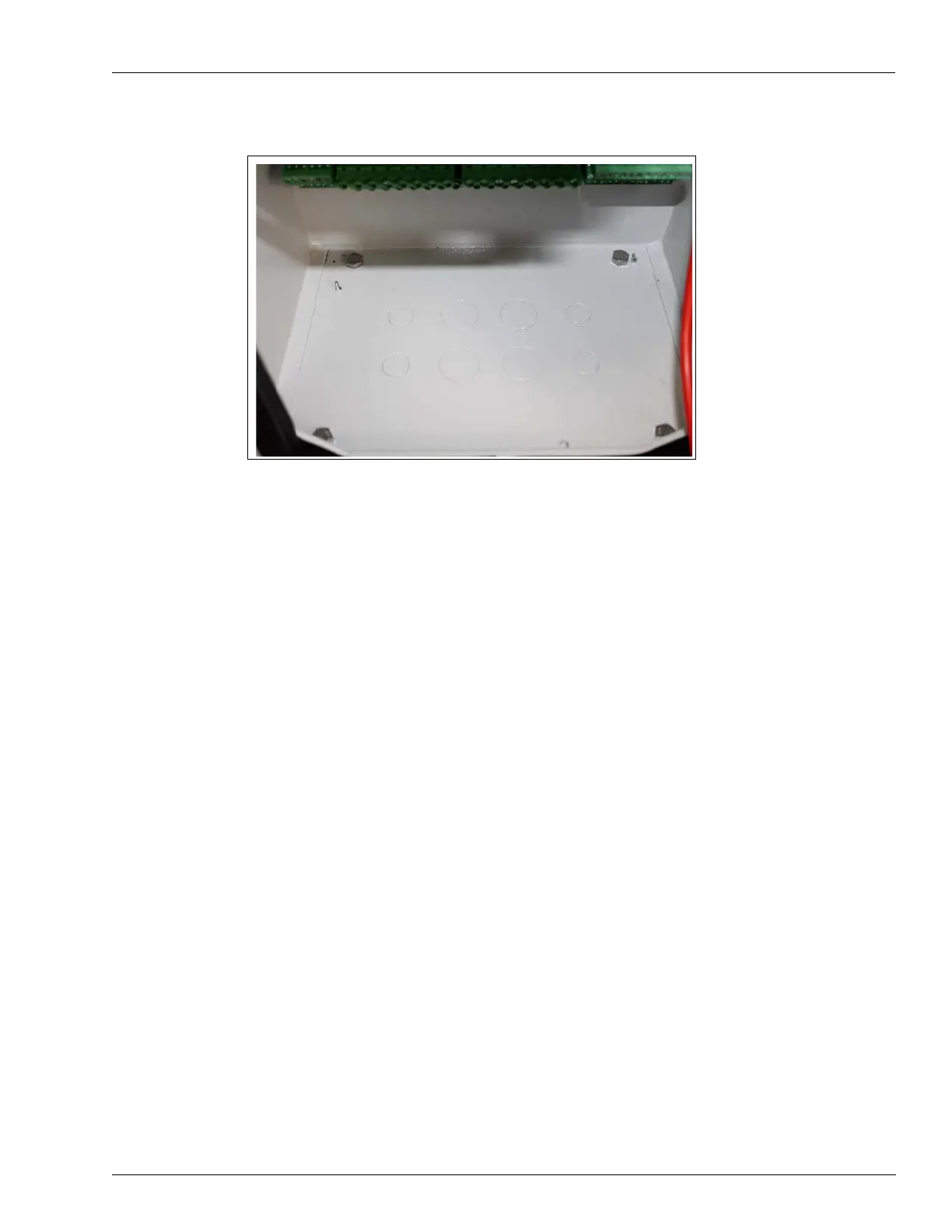

Figure 11: Lower Protective Plate
• Do not make any holes in the unit other than the ones available as knockout plates. If you
must make holes at locations other than those provided, contact Gasboy Customer Support
for approval.
• After completing the installation, all open
holes should be resealed.
4.4.2 Protective Plate
Islander Prime includes a protective plate below the terminal block in the installation pole. The
plate is perforated enabling the insertion of four conduits.
• Four conduits of 1-inch diameter
• Four conduits of 1/2-inch diameter
The following explains what the conduits are used for:
• Two conduits of 1-inch diameter are intended for
high voltage cables.
• One conduit of 1-inch is intended for
low voltage conduit.
The cables and wires to/from the ot
her units in the forecourt are connected to the terminal
block.
The cables and wires are inserted through the conduits in accordance with their types and
routed to their sources.
