Installation 5.3 Installing the Pedestal Base
Page 40 MDE-5411A ForeHB Islander Prime Installation Manual · October 2018
5.3.4 Base Plate
To install the base plate, proceed as follows:
1 Prepare the bottom plate with four ICU bolts attached to it with M10 nuts (step 1 in Figure 19
and Figure 20). Check that the bolts protrude from the plate by 1.4-inch (35-mm).

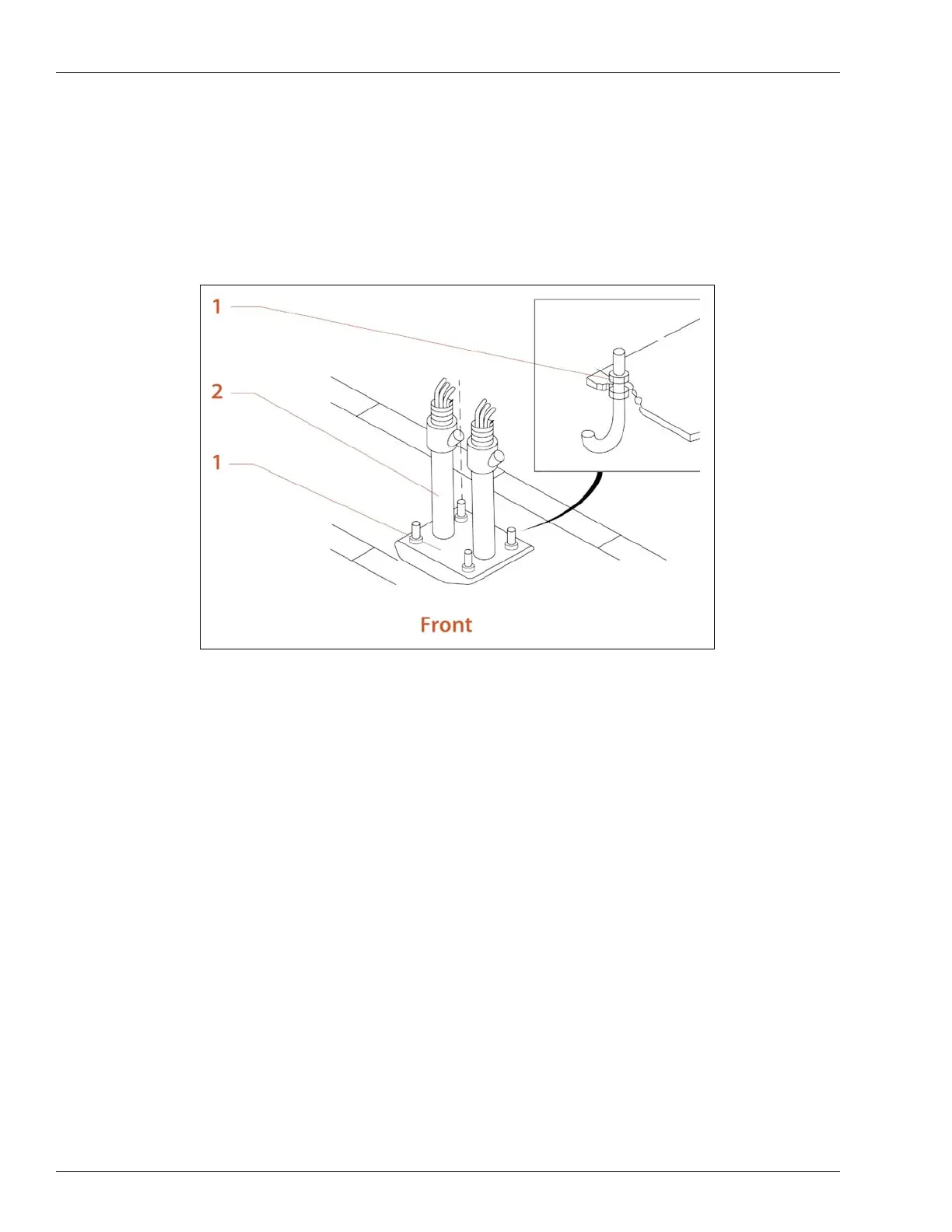

Figure 19: Base Plate Installation
2 Insert the bottom plate in the hole.
3 Take care that all power and communication conduits pass through the central hole in the
bottom plate (step 2 in Figure 19, 3 in Figure 20).
4 Pour concrete type B200 in the hole as a support base for the pole.
5 Take care that as the concrete fills the hole, the bottom plate is on a same level as the ground
(asphalt, pedestal) on which it is installed. Check that the bottom plate is leveled. Otherwise
make the necessary adjustments so the plate is leveled.
6 Wait the necessary time for the concrete to harden and dry (as per local practice), and then
check again that the bottom plate is leveled.
