MDE-5411A ForeHB Islander Prime Installation Manual · October 2018 Page 29
4.4 Conduits Preliminary Guidelines

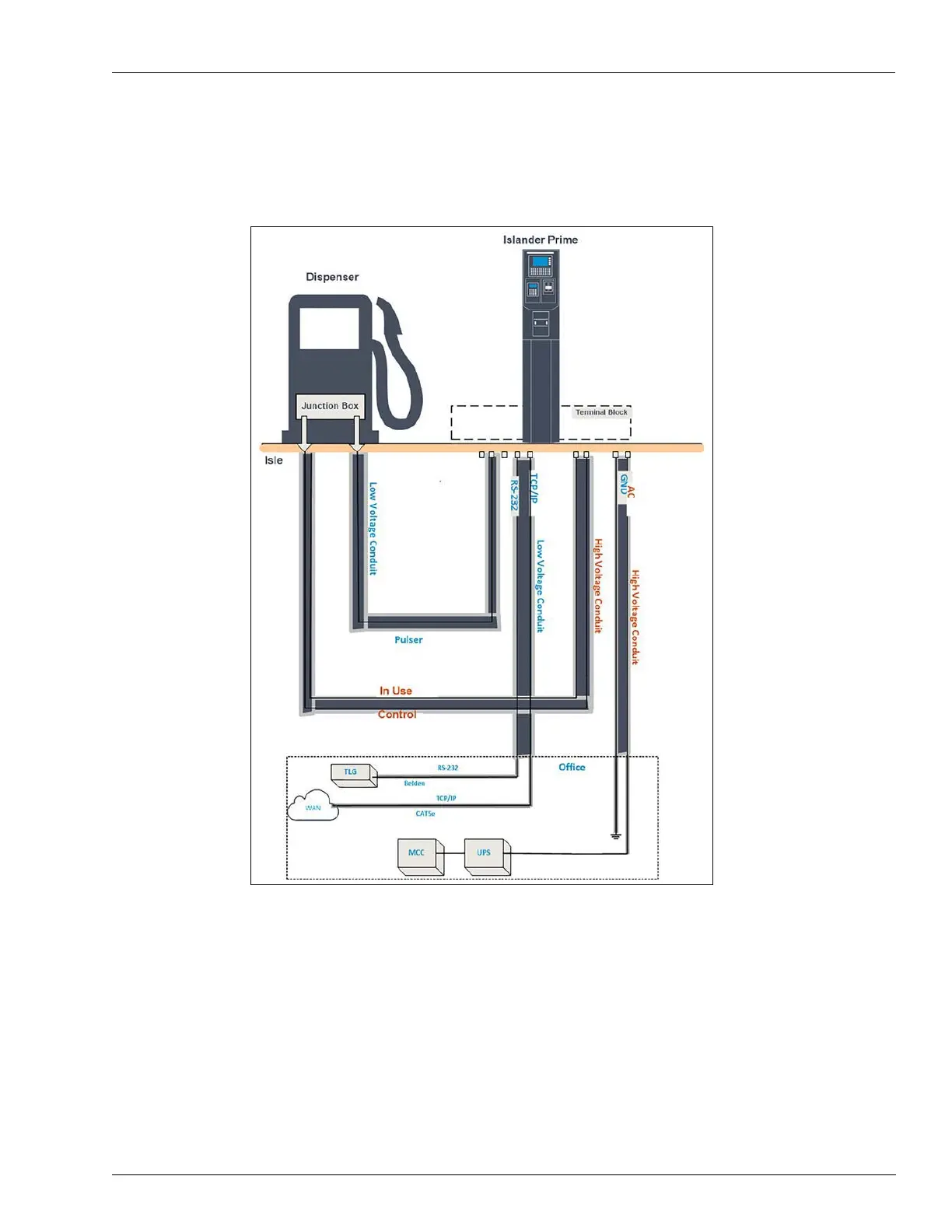

The following is a diagram of the conduit layout for Islander Prime using a mechanical pump
(see Figure 12):
Figure 12: Conduit Layout for Mechanical Pump
