13. COMPONENT ENGINNERING TA-10 SETUP
13 COMPONENT ENGINNERING TA-10 SETUP
The Component Engineering TA-10 can be used for theater automation with the SR-1000. It

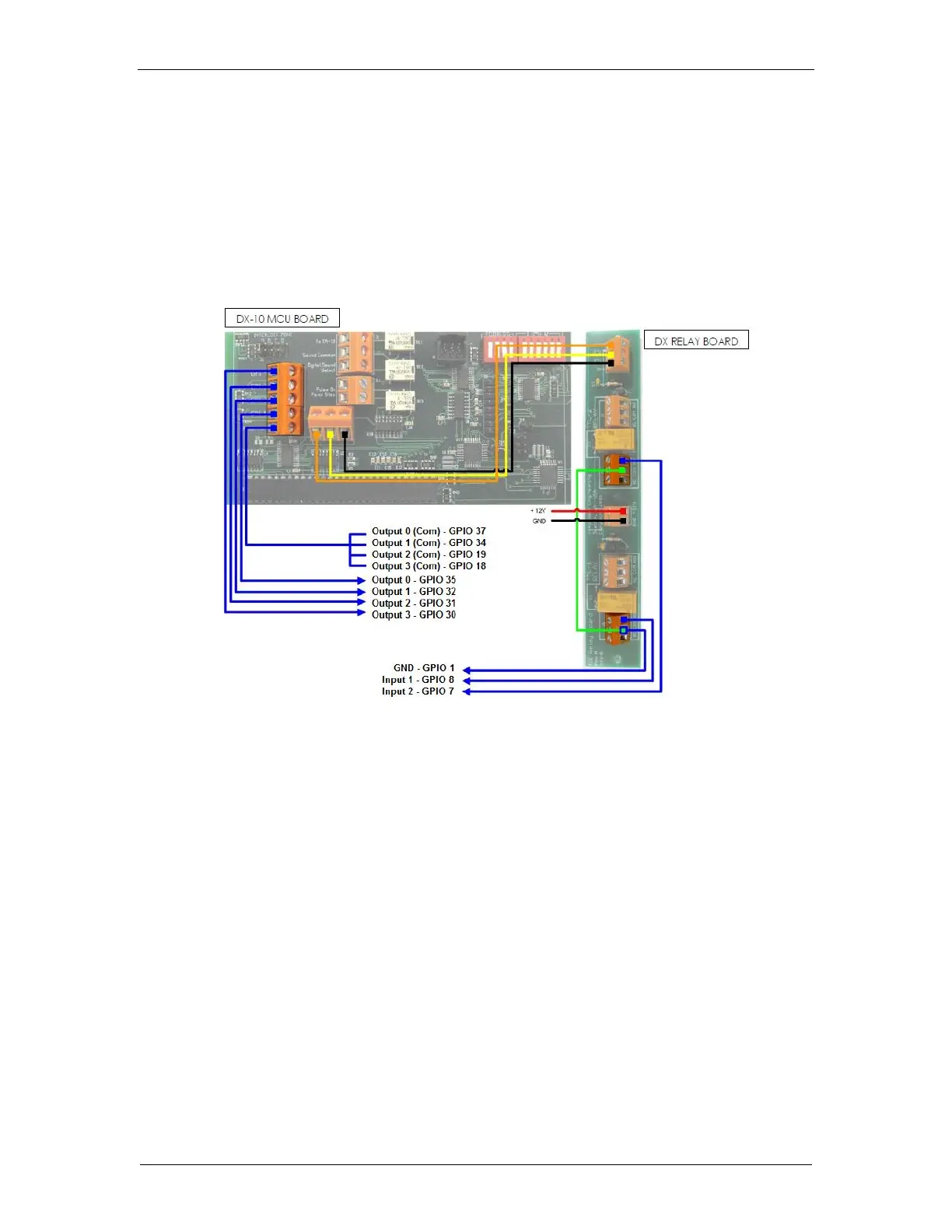

requires that the TA-10 be wired in a particular configuration. A wiring diagram can be seen in
Figure 44.
The TA-10 is connected to the SR-1000 using the server’s GPIO input/output port. Configure
event labels with the GPIO device to trigger the TA-10.
Figure 44: Component Engineering TA-10 wiring diagram
