15. SR-1000 INPUT AND OUTPUT
15.6 Examples of a complete Audio input/output solution
(for 5.1/7.1 Audio formats)
15.6.1 Audio input/output solution using AIB-2000 (suitable for
connection to analog Amplifiers/Crossovers)
The AIB-2000 has inputs for Microphone, Non-Sync and 7.1 channel analog input which can
be routed directly to the analog outputs of the device, as shown in Figure 47.
AES3 digital audio outputs (Channels 1 to 8) from the SR-1000 are fed to the digital inputs on
the AIB-2000 and converted to analog outputs which can be interfaced with analog audio
equipment.

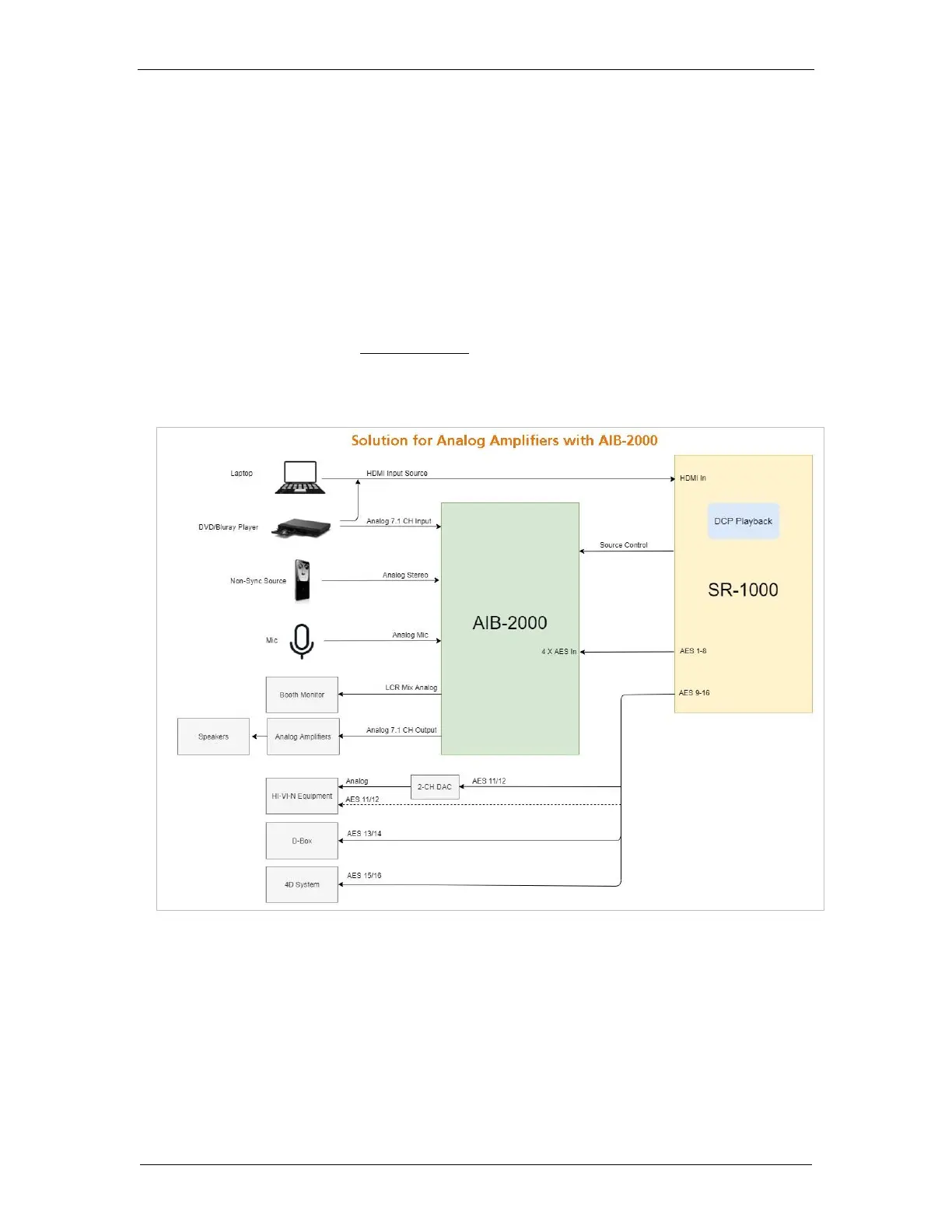

Figure 47: I/O Solution for Analog Amplifier
Note: The SR-1000 Automation should be used to switch between the analog sources and
the 8-channel AES3 output from the SR-1000 to the AIB-2000 to ensure that the correct
source is routed to the sound system.
