INSTALLATION MANUAL FOR SR-1000
STANDALONE INTEGRATED MEDIA BLOCK™
User Manual
15. SR-1000 INPUT AND OUTPUT
15 SR-1000 INPUT AND OUTPUT

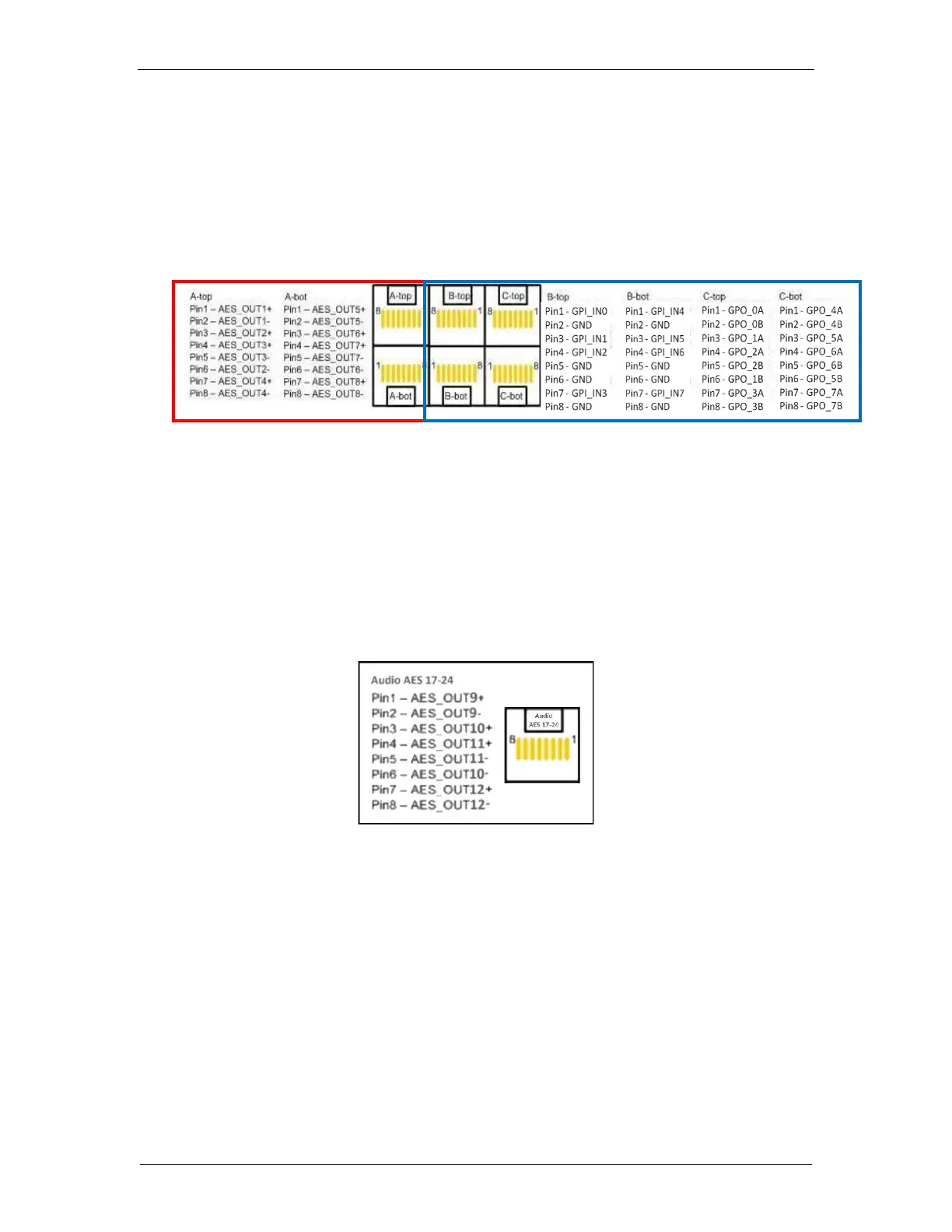

15.1 AES Audio and GPIO Pinout
15.2 Audio AES 17-24 Pinout (for SR-1000 Extreme -24)
Figure 46 describes the pinout for the Audio AES 17-24 connector on the SR-1000 Extreme -24.
Figure 46: AUX AES Pinout
AES Audio
GPIO
Figure 45: AES audio and GPIO pinout
Audio AES 17-24
