15. SR-1000 INPUT AND OUTPUT
15.7 Technical Specifications of AIB-2000

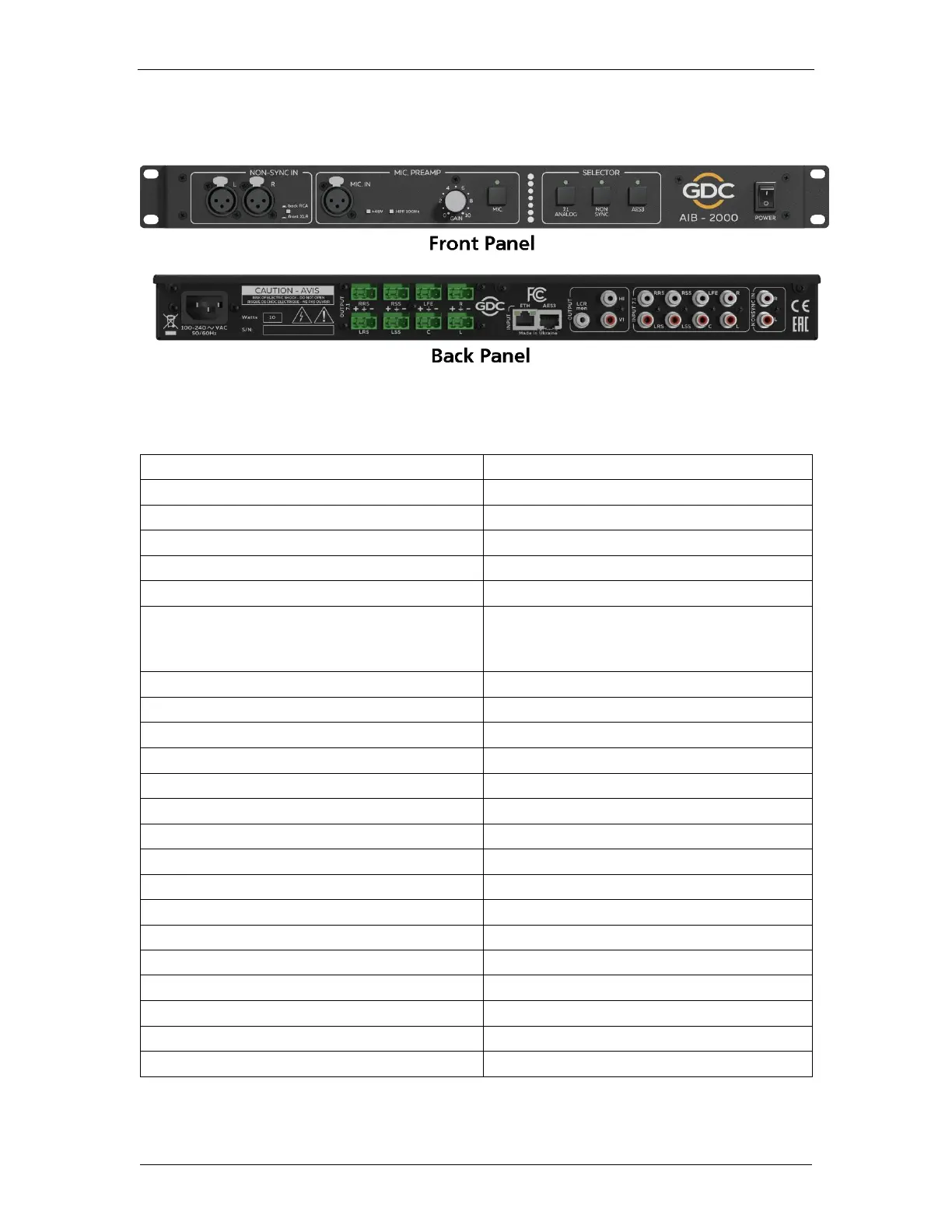

Figure 49: AIB-2000 – Front and Back Panels
Frequency range
20 Hz - 20,000 Hz
Microphone input
XLR female
Microphone switch
Microphone in on/off
Microphone input HPF
100 Hz 12 dB/oct switchable
Microphone input phantom supply
+48 V switchable
Microphone input maximum gain
+60 dB
Non-Sync input
2 x XLR female (front)
2 x RCA (rear)
switchable
Analog unbalanced 7.1 input
8 x RCA
Analog H/I output
1 x RCA
Analog V/I output
1 x RCA
Monitoring output L+C+R summed
1 x RCA
Analog balanced output
8 x 3-pin Phoenix
AES3 input
1 x RJ-45
Ethernet input
1 x RJ-45
Input selector
Non-Sync / 7.1 Analog / AES3
Mains plug
C14
Mains nominal voltage
90 V- 265 V / 50-60 Hz
Maximum power consumption
10 W
Rack height
1U
Dimensions (WxHxD)
483 x 44 x 158 mm
Shipping Dimensions (WxHxD)
550 x 70 x 255 mm
Net weight
2.1 kg
Shipping weight
3.2 kg
