Functional and electrical safety checks: Functional Checkout procedures
8-28 Dash 3000/4000/5000 2000966-542D
Patient simulator configuration
Set up the patient simulator as follows:
 Blood pressure (BP) polarity – POS, if required.
 BP output – 0 mmHg.
 BP transducer output – 5 µVolts.
1. Connect the BP simulator cable to enabled BP connectors you are
testing.

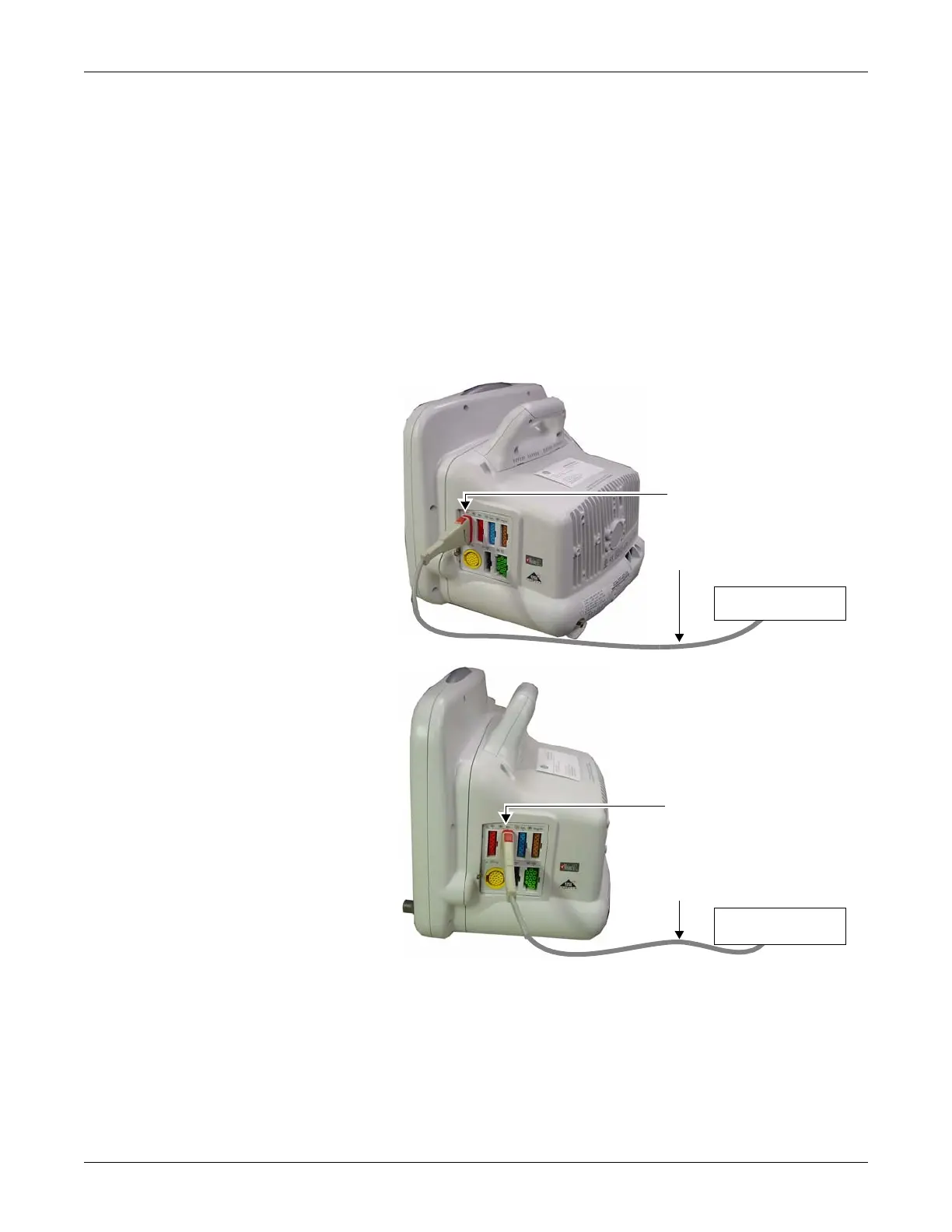

a. To connect to the BP1 or the BP2 connector, see the pictures
below.
blood pressure simulator
cable
BP2 connector on monitor
blood pressure simulator
cable
BP1 connector on monitor
To Connect to the BP2 Connector
patient simulator
To Connect to the BP1 Connector
863A
864A
patient simulator
