GE Dash 4000 Service Manual

Field replaceable units: Replace main unit parts
2000966-542D Dash 3000/4000/5000 7-49

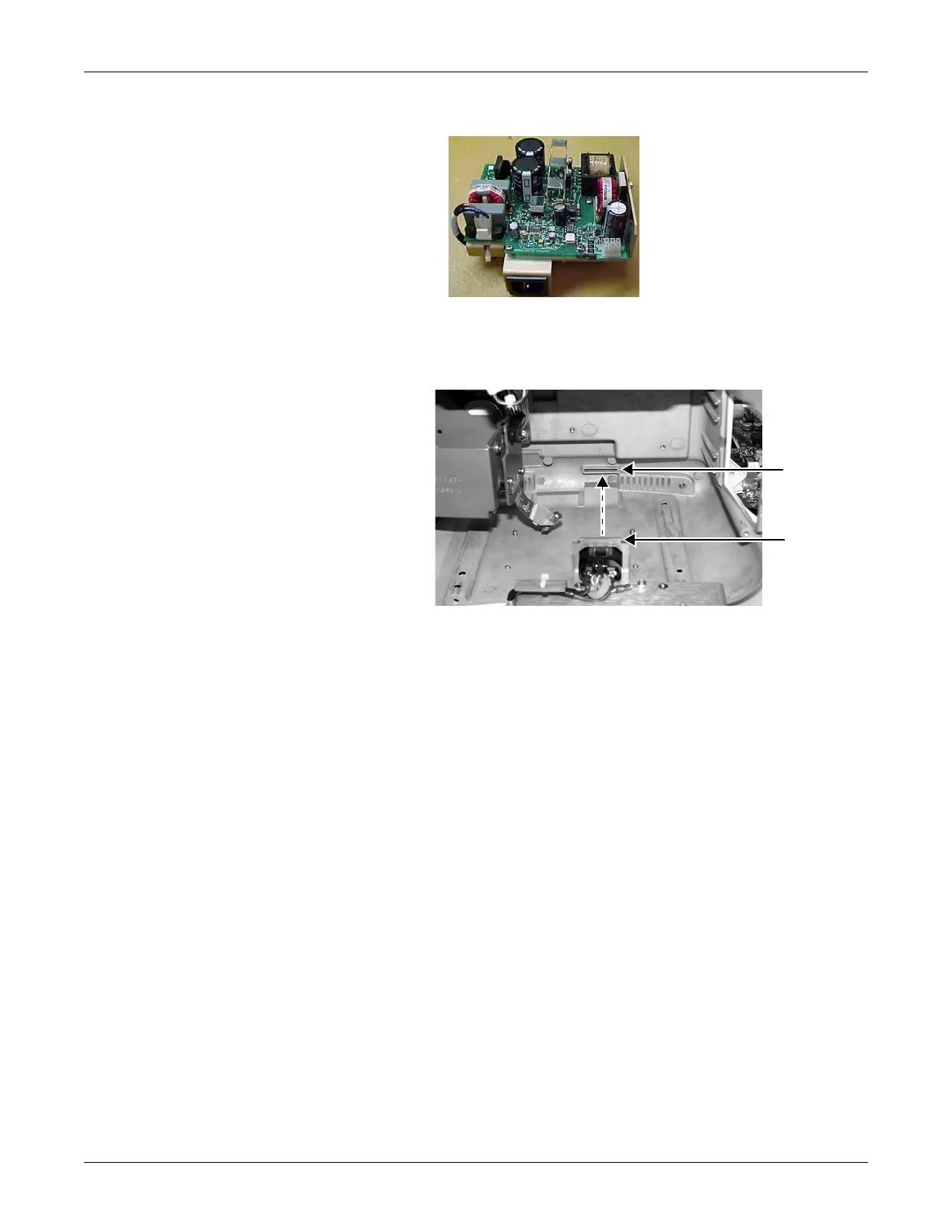

3. Remove the assembly from the unit.
4. Align the tab on the power supply mounting bracket with the slot in
the rear housing and install the new assembly in the unit. Fasten the
assembly to the rear housing with the new screws.
NOTE
When securing the thumb screw on the writer flex, first finger-
tighten the thumb screw. Then, use a flat-head screw driver to
tighten the screw an additional 1/4 turn.
5. Reassemble the patient monitor in reverse order.
6. Complete the procedures in “Recommended checkout” on page 7-52.
569A
slot
tab
576A

GE Dash 4000 Specifications

General

Resolution	640 x 480 pixels
Power Supply	100-240 VAC, 50/60 Hz
ECG	3/5/12-lead
IBP	Up to 4 channels
Battery Backup	Yes
Certifications	CE, UL, CSA
Parameters Monitored	ECG, SpO2, NIBP, IBP, Temperature, Respiration, Cardiac Output
Connectivity	Ethernet, USB, Serial
Display Type	TFT LCD
Recorder	Integrated thermal printer
Battery Type	Lithium-ion
Operating Temperature	0 to 40°C
Storage Temperature	-20 to 60°C
Humidity Range	15% to 95% non-condensing
Display Size	10.4 inches
Cardiac Output	Available
