GE Dash 4000 Service Manual

Functional and electrical safety checks: Electrical safety tests
8-12 Dash 3000/4000/5000 2000966-542D

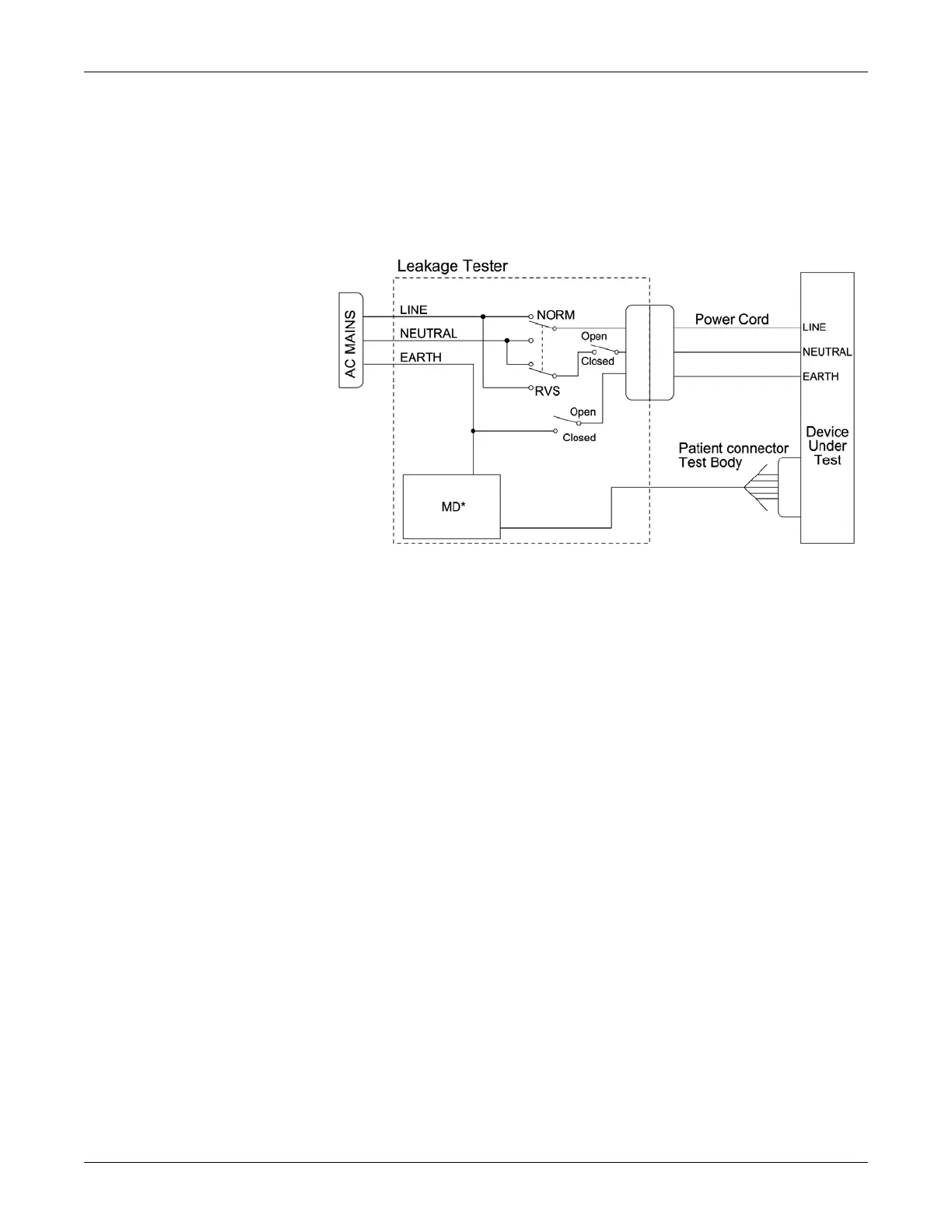

Patient (source) leakage current test
This procedure only applies to Class I (grounded/earthed) equipment,
and measures the leakage current from the ECG/RESP connector or the
SPO2 connector of the device to ground.
NOTE
*The MD represents the network and voltage measuring instrument
and its frequency characteristics per IEC 60601-1.
The patient connector test body shorts all signals in the connector
together. Refer to the instructions contained with the safety analyzer to
perform this test.
1. Connect the ECG/RESP Test Body to the green connector of the
device under test.
2. Configure leakage tester as follows:
 Polarity – NORMAL
 Neutral – CLOSED
 GND (Earth) – CLOSED
3. Power on Device under test.
4. Read and record the current leakage indicated on the tester.
5. Change leakage tester switches to:
 Polarity – NORMAL
 Neutral – OPEN
 GND (Earth) – CLOSED
6. Read and record the current leakage indicated on the tester.
7. Change leakage tester switches to:
 Polarity – NORMAL
502B

GE Dash 4000 Specifications

General

Resolution	640 x 480 pixels
Power Supply	100-240 VAC, 50/60 Hz
ECG	3/5/12-lead
IBP	Up to 4 channels
Battery Backup	Yes
Certifications	CE, UL, CSA
Parameters Monitored	ECG, SpO2, NIBP, IBP, Temperature, Respiration, Cardiac Output
Connectivity	Ethernet, USB, Serial
Display Type	TFT LCD
Recorder	Integrated thermal printer
Battery Type	Lithium-ion
Operating Temperature	0 to 40°C
Storage Temperature	-20 to 60°C
Humidity Range	15% to 95% non-condensing
Display Size	10.4 inches
Cardiac Output	Available
