Field replaceable units: Replace battery door
7-50 Dash 3000/4000/5000 2000966-542D
Replace battery door
1. Remove the three screws anchoring the battery door assembly to the
rear housing. Remove the battery door assembly.
2. Install the new door and reassemble the patient monitor.
Replace foot
1. Remove four screws holding the foot to the patient monitor.
NOTE
Your unit may or may not have a mounting plate. The same four
screws anchor the mounting plate and foot.
2. Replace the foot and screw to the patient monitor.

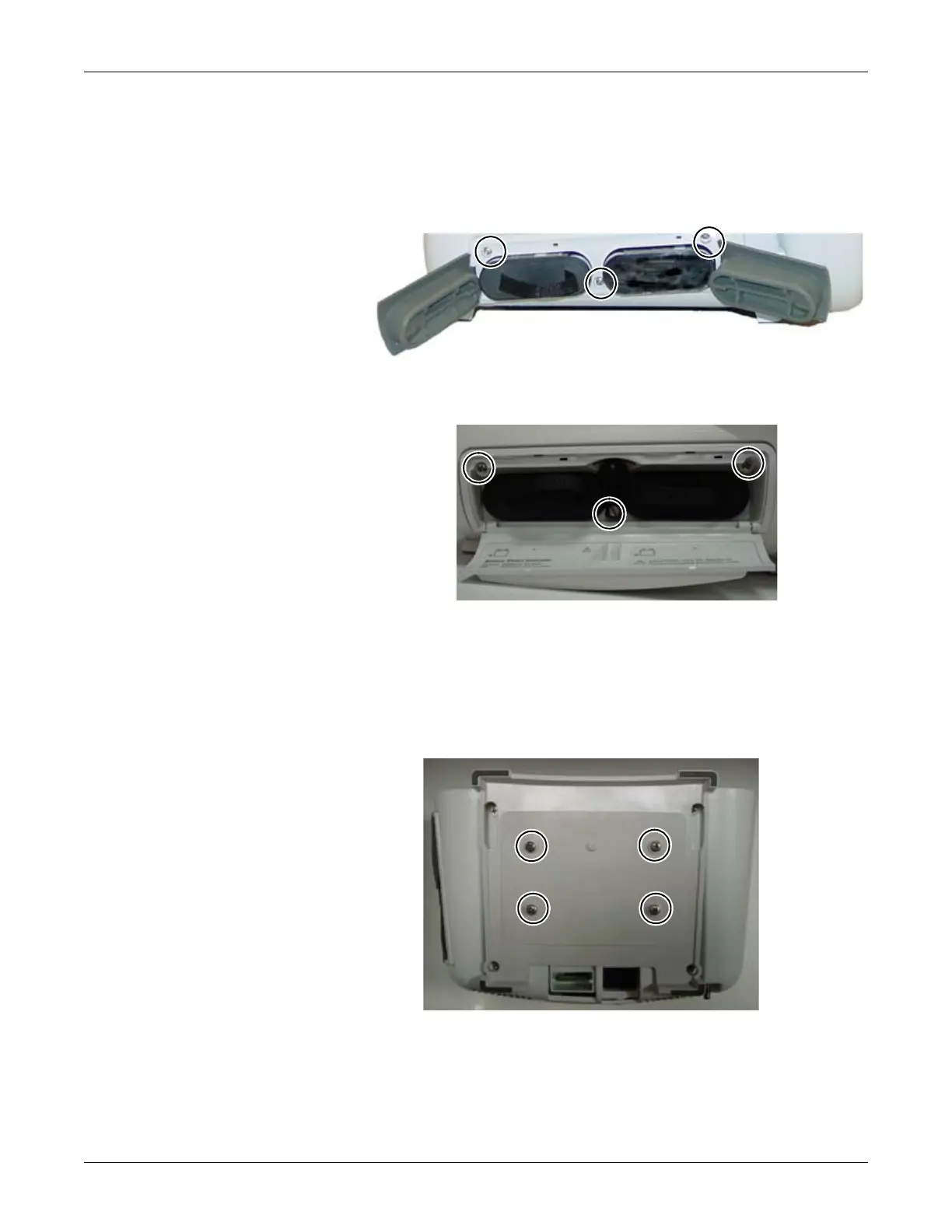

Screws holding battery door.
581B
895A
926A
