GE Dash 4000 Service Manual

Field replaceable units: Replace main unit parts
7-44 Dash 3000/4000/5000 2000966-542D
Replace CPU/battery housing assembly
1. For Dash 3000 patient monitors, remove the handle assembly. Refer
to page 7-10. For Dash 4000 or 5000 patient monitors, go to the next
step.
2. Remove the display assembly from the main unit. Refer to page 7-18.
3. If present, remove the wireless card.
CAUTION
Do not pull on the 802.11a/b/g antennas or use them to
remove the wireless card. They can easily be damaged.

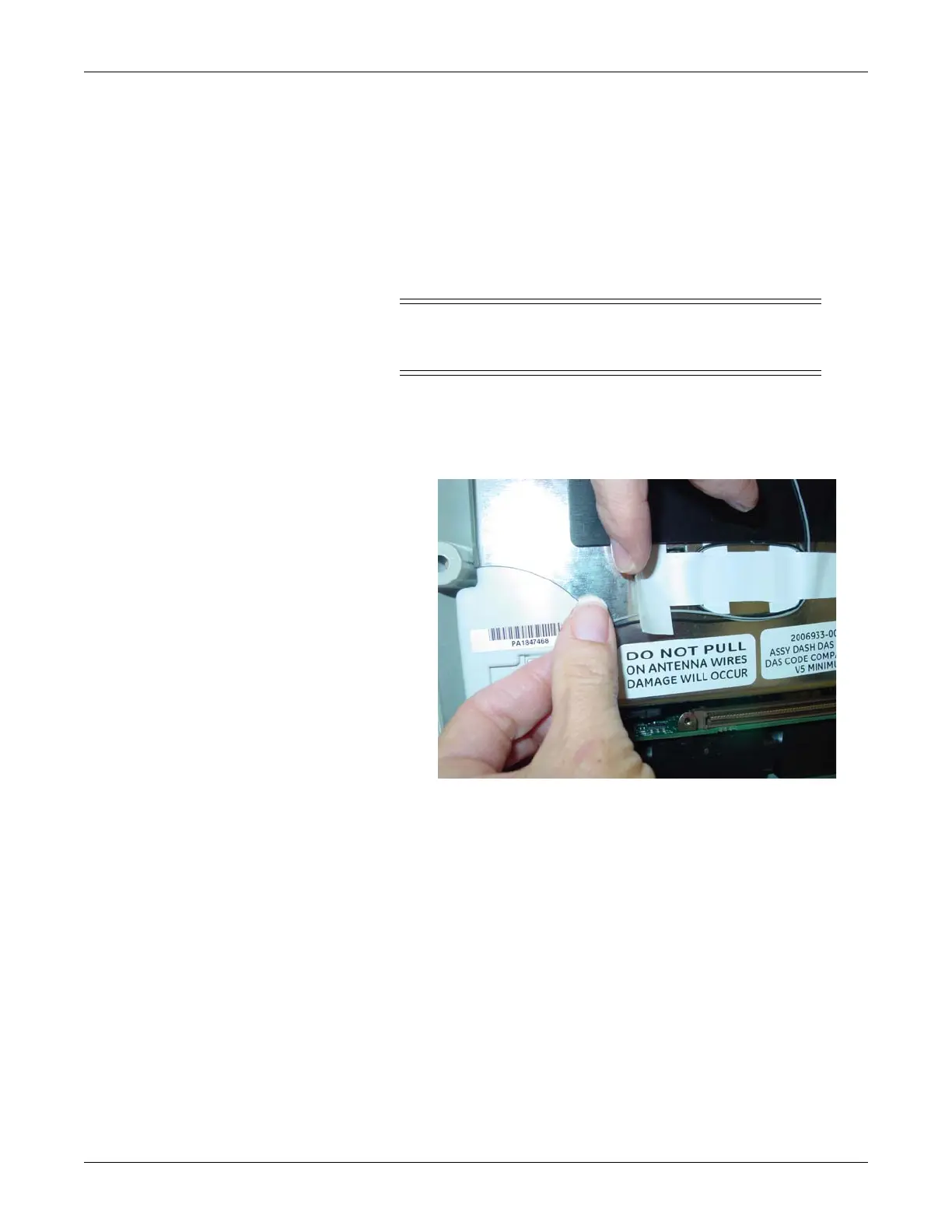

a. Release the antenna cables from underneath the left side of the
antenna label to allow enough slack in the cable to allow the
wireless card to be removed from the PC card bracket.
961B

GE Dash 4000 Specifications

General

Resolution	640 x 480 pixels
Power Supply	100-240 VAC, 50/60 Hz
ECG	3/5/12-lead
IBP	Up to 4 channels
Battery Backup	Yes
Certifications	CE, UL, CSA
Parameters Monitored	ECG, SpO2, NIBP, IBP, Temperature, Respiration, Cardiac Output
Connectivity	Ethernet, USB, Serial
Display Type	TFT LCD
Recorder	Integrated thermal printer
Battery Type	Lithium-ion
Operating Temperature	0 to 40°C
Storage Temperature	-20 to 60°C
Humidity Range	15% to 95% non-condensing
Display Size	10.4 inches
Cardiac Output	Available
