Functional and electrical safety checks: Functional Checkout procedures
8-40 Dash 3000/4000/5000 2000966-542D
Analog output and defibrillator synchronization tests
Equipment
Use the following equipment for these tests:
 Oscilloscope, or equivalent
 5.5 digit precision voltmeter (HP34401A or equivalent). Needed for
calibration only.
 Analog output cable (2000633-001 or equivalent)
Setup

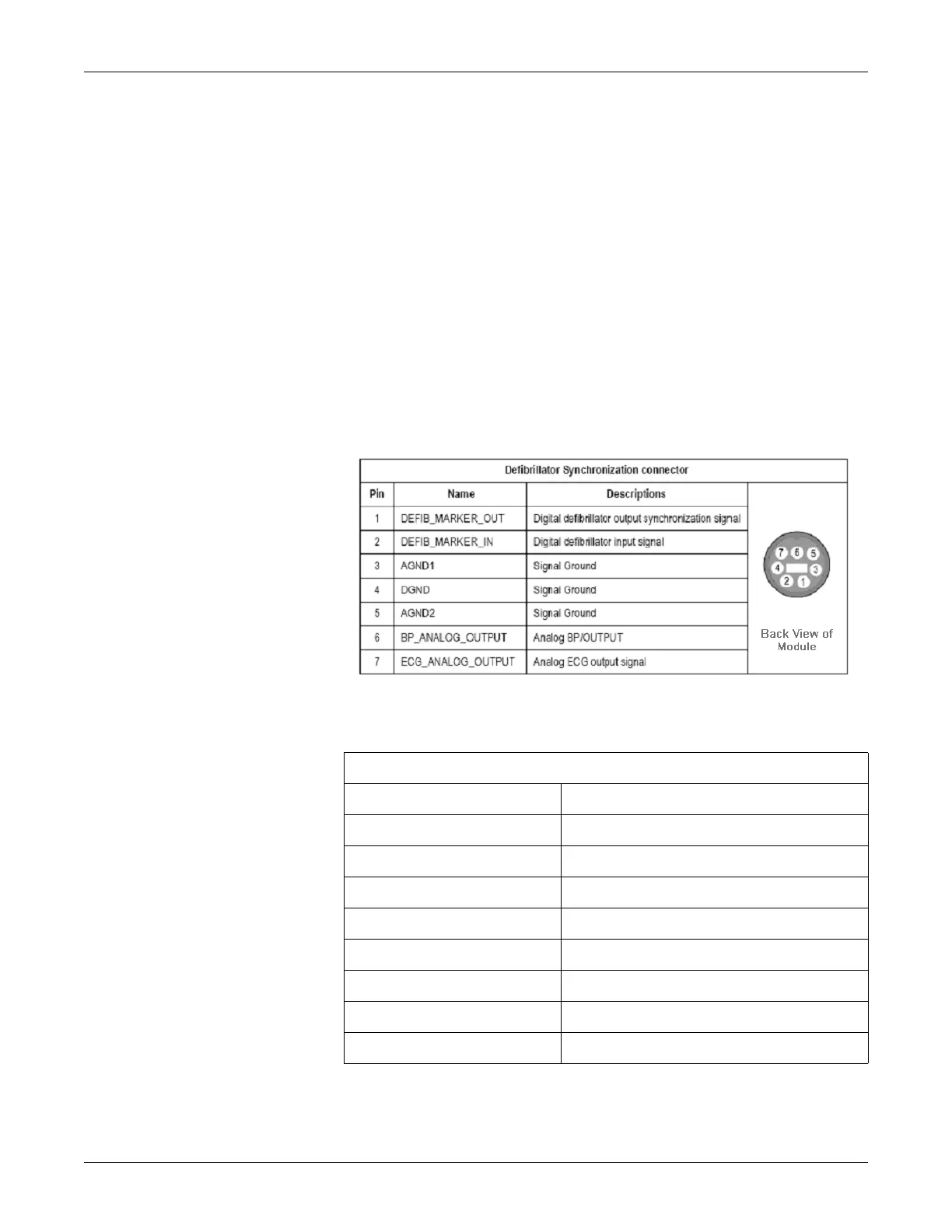

1. Use the figure below as a reference for connecting test devices to the
DEFIB SYNC connector, located on the back panel of the patient
monitor, for performing these tests.
2. Test the ECG, Arterial BP, and Marker Out signals from the DEFIB
SYNC connector. ECG Input voltage of 1 mV = 1 V analog output +-
Analog output cable pinout (2000633-001)
PIN number Color
1Black
2 Green
3Red
4Brown
5Blue
6White
7Yellow
8Gray
039B

GE Dash 4000 Specifications

General

Resolution	640 x 480 pixels
Power Supply	100-240 VAC, 50/60 Hz
ECG	3/5/12-lead
IBP	Up to 4 channels
Battery Backup	Yes
Certifications	CE, UL, CSA
Parameters Monitored	ECG, SpO2, NIBP, IBP, Temperature, Respiration, Cardiac Output
Connectivity	Ethernet, USB, Serial
Display Type	TFT LCD
Recorder	Integrated thermal printer
Battery Type	Lithium-ion
Operating Temperature	0 to 40°C
Storage Temperature	-20 to 60°C
Humidity Range	15% to 95% non-condensing
Display Size	10.4 inches
Cardiac Output	Available
