GE Dash 4000 Service Manual

Functional and electrical safety checks: Functional Checkout procedures
2000966-542D Dash 3000/4000/5000 8-41

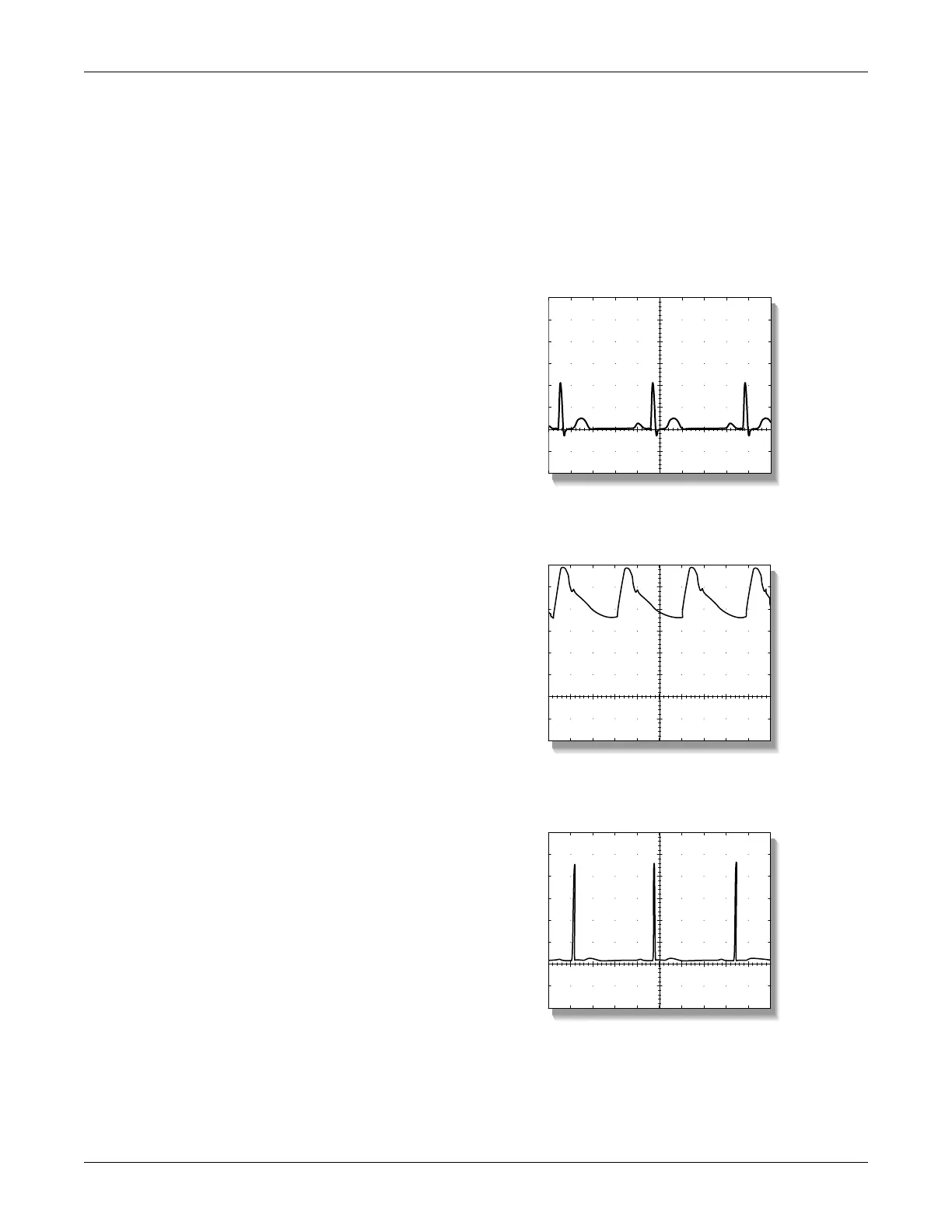

10%. They should closely resemble the waveforms in the figures
below.
NOTE
The Marker Out amplitude and the pulse width are configured in the
Boot Code settings. Refer to Boot Code settings, “Set Defib Sync
Voltage and pulse width” on page 4-18 for more information.
DEFIB Sync connector:
Signal Pin:—7
Ground Pin:—3
Probe Type:—x10
Time/Division:—0.2S
Volts/Division:—0.5V
DEFIB Sync connector: arterial BP
Signal Pin:—6
Ground Pin:—5
Probe Type:—x10
Time/Division:—0.2S
Volts/Division:—0.2V
DEFIB Sync connector: Marker Out (frequency)
Signal Pin:—1
Ground Pin:—4
Probe Type:—x10
Time/Division:—0.2S
Volts/Division:—1V
023A
024A
025A

GE Dash 4000 Specifications

General

Resolution	640 x 480 pixels
Power Supply	100-240 VAC, 50/60 Hz
ECG	3/5/12-lead
IBP	Up to 4 channels
Battery Backup	Yes
Certifications	CE, UL, CSA
Parameters Monitored	ECG, SpO2, NIBP, IBP, Temperature, Respiration, Cardiac Output
Connectivity	Ethernet, USB, Serial
Display Type	TFT LCD
Recorder	Integrated thermal printer
Battery Type	Lithium-ion
Operating Temperature	0 to 40°C
Storage Temperature	-20 to 60°C
Humidity Range	15% to 95% non-condensing
Display Size	10.4 inches
Cardiac Output	Available
