GE Dash 4000 Service Manual

Equipment overview: Components
2000966-542D Dash 3000/4000/5000 2-13

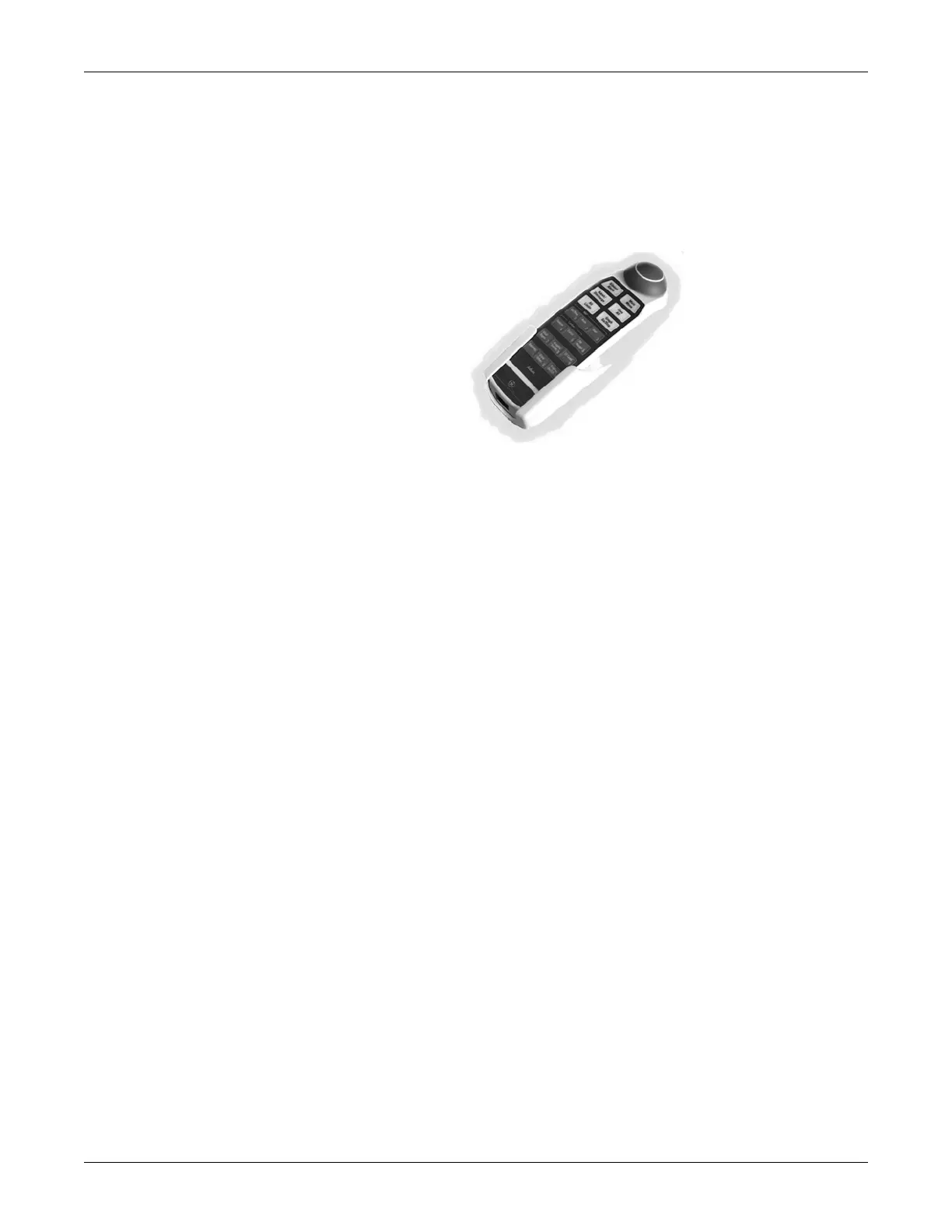

Optional remote control
The optional remote control provides all patient monitor controls on a
portable component with a Trim Knob control, and allows the user to
operate the patient monitor from across the room. Eighteen hard keys
are configured for adult, neonatal, or operating room applications.
821A

GE Dash 4000 Specifications

General

Resolution	640 x 480 pixels
Power Supply	100-240 VAC, 50/60 Hz
ECG	3/5/12-lead
IBP	Up to 4 channels
Battery Backup	Yes
Certifications	CE, UL, CSA
Parameters Monitored	ECG, SpO2, NIBP, IBP, Temperature, Respiration, Cardiac Output
Connectivity	Ethernet, USB, Serial
Display Type	TFT LCD
Recorder	Integrated thermal printer
Battery Type	Lithium-ion
Operating Temperature	0 to 40°C
Storage Temperature	-20 to 60°C
Humidity Range	15% to 95% non-condensing
Display Size	10.4 inches
Cardiac Output	Available
