GE Dash 4000 Service Manual

Installation: Installation overview
3-2 Dash 3000/4000/5000 2000966-542D
Installation overview
The following illustrates the installation steps for patient-ready
monitoring.
1. Check received equipment against the sales order.
2. Unpack equipment and inventory contents.
3. Inspect the equipment and its components carefully prior to
installation. Refer to “Inspection” on page 3-3.
4. (Optional) Insert two batteries into the battery compartment slots.
(Batteries should be charged for 4 hours before using device on
patients.)

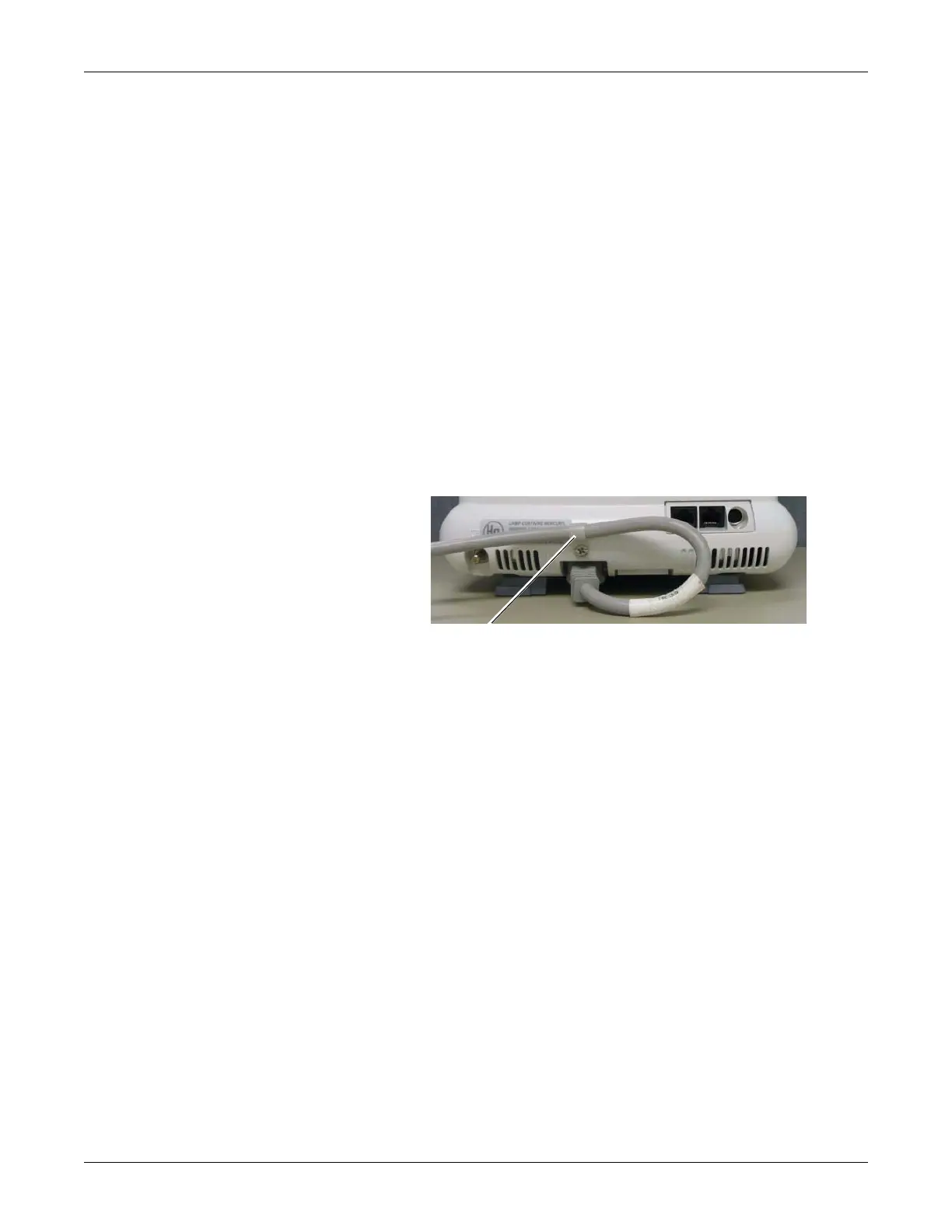

5. Connect the power cord to the power supply inlet on the Dash patient
monitor. Secure the power cord to the back of the Dash using the
power cord retention clamp, unless the Dash is used with the Dash
Port 2 docking station. Then plug the power cord into the AC power
outlet.
6. Connect peripheral equipment and network, if applicable.
7. Power up the Dash monitor. Go to “Configuration” on page 4-1 to
configure for stand-alone or networked monitoring.
8. Connect patient cables per the operator’s manual.
9. Qualified personnel must perform the “Dash installation checkout
procedure” on page 3-8, and should record the values of each required
electrical safety test in the “Checklist” on page D-1.
599A

GE Dash 4000 Specifications

General

Resolution	640 x 480 pixels
Power Supply	100-240 VAC, 50/60 Hz
ECG	3/5/12-lead
IBP	Up to 4 channels
Battery Backup	Yes
Certifications	CE, UL, CSA
Parameters Monitored	ECG, SpO2, NIBP, IBP, Temperature, Respiration, Cardiac Output
Connectivity	Ethernet, USB, Serial
Display Type	TFT LCD
Recorder	Integrated thermal printer
Battery Type	Lithium-ion
Operating Temperature	0 to 40°C
Storage Temperature	-20 to 60°C
Humidity Range	15% to 95% non-condensing
Display Size	10.4 inches
Cardiac Output	Available
