GE Dash 4000 Service Manual

Installation: Before you begin...
3-4 Dash 3000/4000/5000 2000966-542D
Before you begin...
The following installation information assumes that the equipment is
new from GE manufacturing. The monitor was thoroughly tested before
it was shipped. If intending to use the Dash patient monitor under
battery power, consider charging the batteries in a charger during the
checkout procedures. Otherwise, insert batteries in the battery
compartment as shown.
CAUTION
Leaks from battery cells can occur under extreme
conditions. The liquid is caustic to eyes and skin. If the
liquid comes into contact with eyes or skin, flush with
clean water and seek medical attention.
The battery compartment is located on the lower left side of the patient
monitor. Depending on your model, the battery doors may be one of the
two variations shown below. Battery indicators let you know when the
patient monitor is using battery power.
WARNING
Make sure the batteries are completely inserted and that
the battery door is securely latched. Falling batteries
could seriously or fatally injure a neonatal patient.
634B
635A

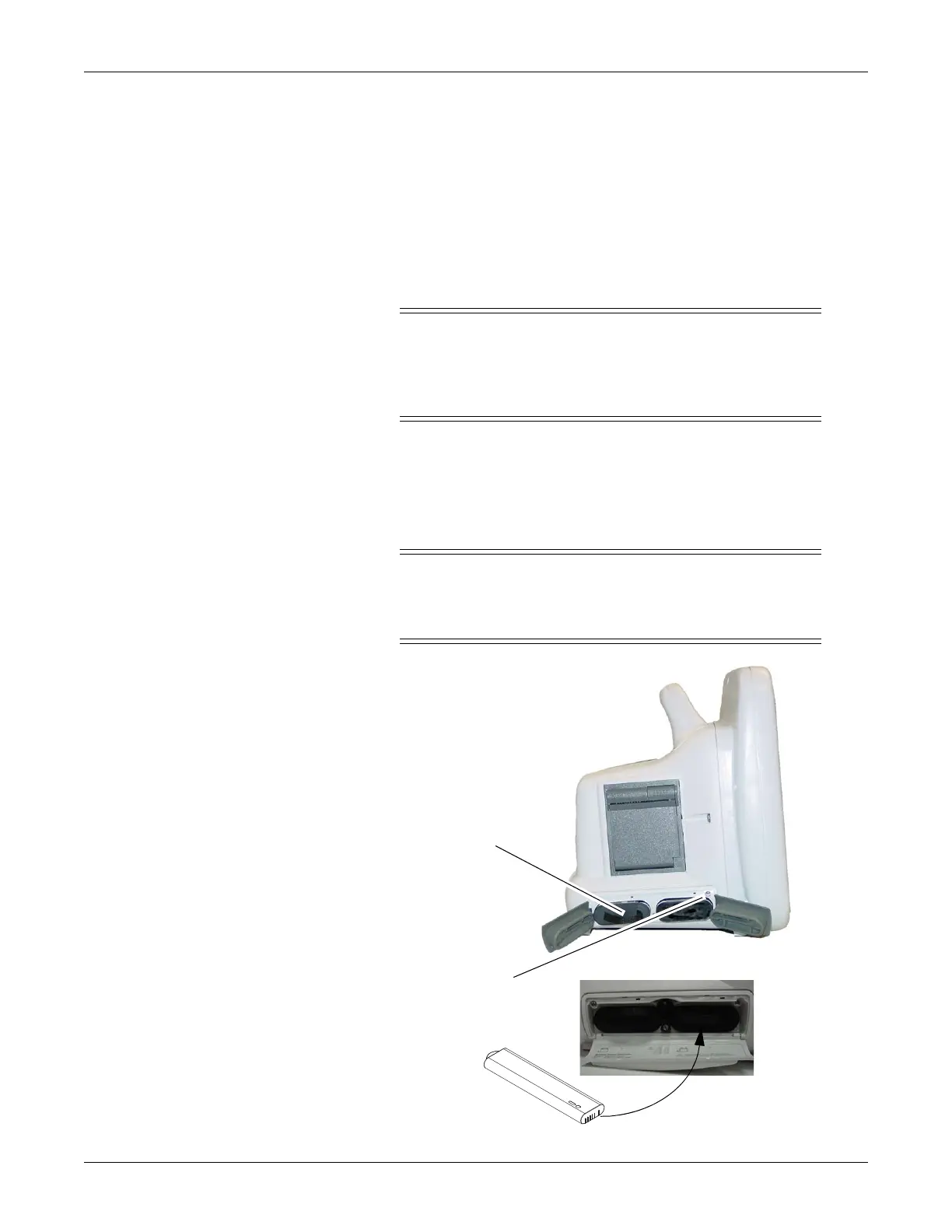

Insert this end first
928A
Insert the battery packs in
the battery compartment.
The battery compartment
may be a single plastic
door or two silicone doors.
Battery status indicator

GE Dash 4000 Specifications

General

Resolution	640 x 480 pixels
Power Supply	100-240 VAC, 50/60 Hz
ECG	3/5/12-lead
IBP	Up to 4 channels
Battery Backup	Yes
Certifications	CE, UL, CSA
Parameters Monitored	ECG, SpO2, NIBP, IBP, Temperature, Respiration, Cardiac Output
Connectivity	Ethernet, USB, Serial
Display Type	TFT LCD
Recorder	Integrated thermal printer
Battery Type	Lithium-ion
Operating Temperature	0 to 40°C
Storage Temperature	-20 to 60°C
Humidity Range	15% to 95% non-condensing
Display Size	10.4 inches
Cardiac Output	Available
