GE Dash 4000 Service Manual

Field replaceable units: Remove or replace handle assembly
7-10 Dash 3000/4000/5000 2000966-542D

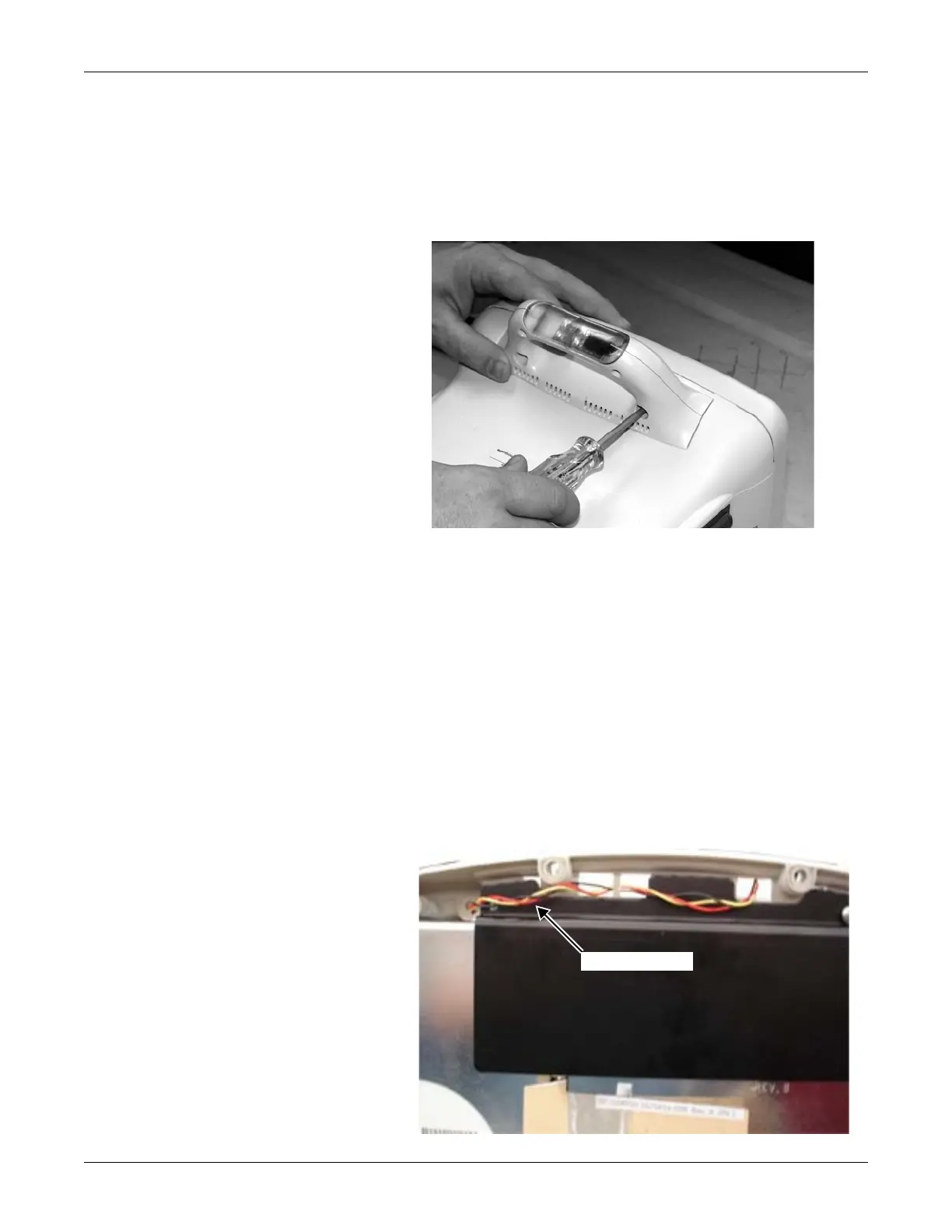

Remove or replace handle assembly
1. Remove the two screws holding the handle to the patient monitor.
Take care not to strain the cables if your patient monitor has the
alarm light option or the wireless option.
2. If your patient monitor does not have the alarm light option or
wireless option, replace the defective handle assembly or continue to
“Remove or replace display assembly” on page 7-18 to replace other
parts.
3. If your patient monitor has the alarm light option, replace the
defective handle assembly, or continue to remove the display
assembly to route the alarm light cable through the Dash housing (if
it is not already routed) or to replace other parts. Refer to “Remove or
replace display assembly” on page 7-18.
NOTE
For Dash 3000 only: If the replacement handle assembly has an
alarm light, the DAS assembly must be removed to connect the
cable to J1 on the writer board. Refer to “Replace DAS assembly”
on page 7-37 for instructions on removing and reinstalling the
DAS assembly.
537A
967A
alarm light cable

GE Dash 4000 Specifications

General

Resolution	640 x 480 pixels
Power Supply	100-240 VAC, 50/60 Hz
ECG	3/5/12-lead
IBP	Up to 4 channels
Battery Backup	Yes
Certifications	CE, UL, CSA
Parameters Monitored	ECG, SpO2, NIBP, IBP, Temperature, Respiration, Cardiac Output
Connectivity	Ethernet, USB, Serial
Display Type	TFT LCD
Recorder	Integrated thermal printer
Battery Type	Lithium-ion
Operating Temperature	0 to 40°C
Storage Temperature	-20 to 60°C
Humidity Range	15% to 95% non-condensing
Display Size	10.4 inches
Cardiac Output	Available
