GE Dash 4000 Service Manual

Field replaceable units: Remove or replace handle assembly
2000966-542D Dash 3000/4000/5000 7-11
4. If your patient monitor has the wireless option, do the following to
replace the defective handle assembly:
CAUTION
Do not pull on the 802.11a/b/g antennas or use force
when connecting to the wireless card. Handle the
antennas and connectors carefully as they can easily be
damaged.
NOTE
Do not kink or bend the antenna cables tighter than a 5 mm
radius. Otherwise, the cable lining will delaminate and reduce
antenna performance.
a. Apply a piece of adhesive tape to temporarily hold the handle
onto the unit.
b. Remove the display assembly. Refer to “Remove or replace
display assembly” on page 7-18.
c. To completely remove the handle from the main unit, do the
following:

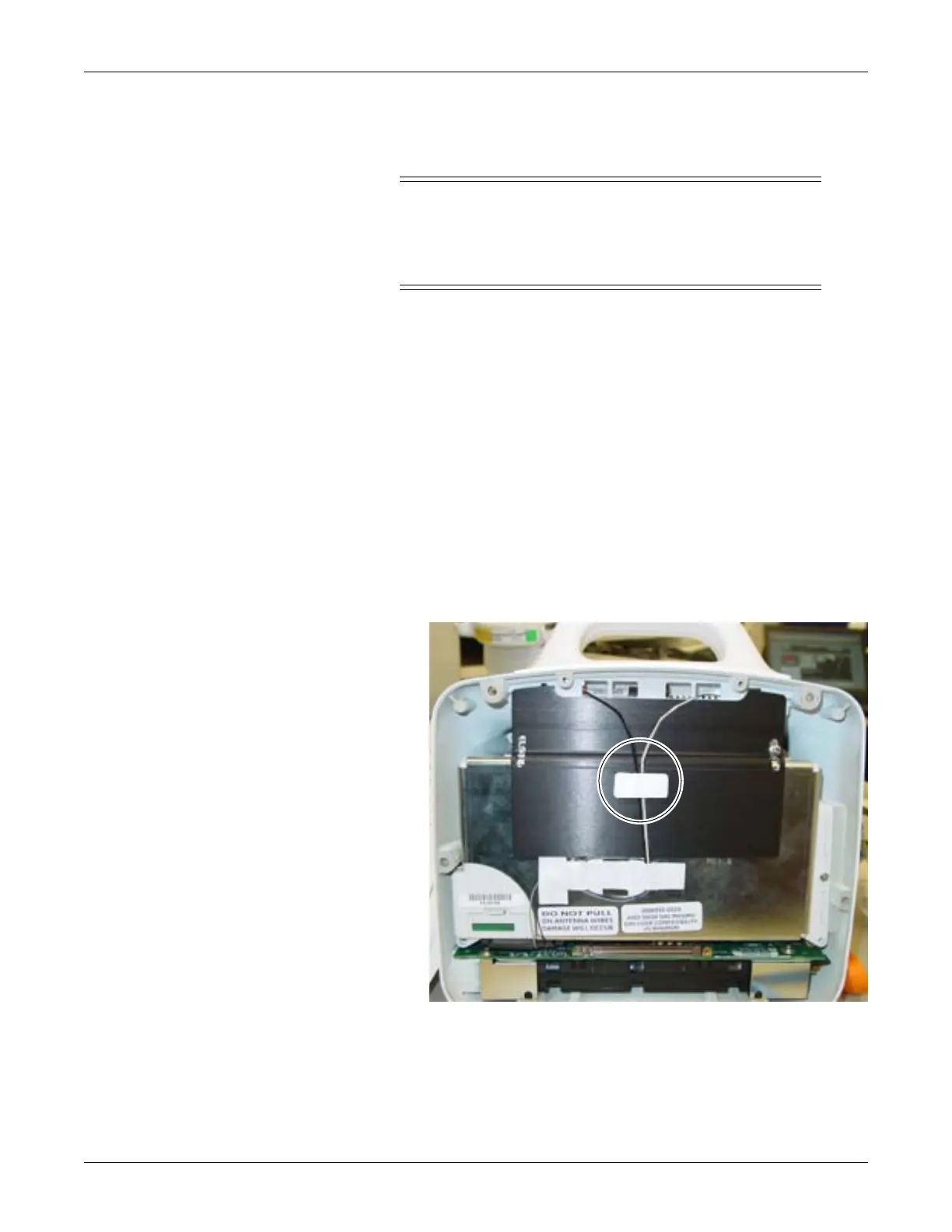

 Apply pressure against the antenna cables (to prevent
pulling on the cables) and carefully remove the antenna label
from the Dash monitor. Discard the used label.
966B

GE Dash 4000 Specifications

General

Resolution	640 x 480 pixels
Power Supply	100-240 VAC, 50/60 Hz
ECG	3/5/12-lead
IBP	Up to 4 channels
Battery Backup	Yes
Certifications	CE, UL, CSA
Parameters Monitored	ECG, SpO2, NIBP, IBP, Temperature, Respiration, Cardiac Output
Connectivity	Ethernet, USB, Serial
Display Type	TFT LCD
Recorder	Integrated thermal printer
Battery Type	Lithium-ion
Operating Temperature	0 to 40°C
Storage Temperature	-20 to 60°C
Humidity Range	15% to 95% non-condensing
Display Size	10.4 inches
Cardiac Output	Available
