Equipment overview: Components
2-6 Dash 3000/4000/5000 2000966-542D
Crisis patient status alarms and yellow for Warning patient status and
system alarms.
Controls and indicators
The user interface consists of a flat panel display and the keypad
assembly that includes a Trim Knob control, function keys, and LED
indicators.
Flat panel display
The active-matrix color liquid crystal display (LCD) is assembled into a
shock absorbing isolator that fits within the patient monitor’s front bezel
to protect the display from mechanical shock during use.
The acrylic optical filter protects the display panel from impact and
enhances visibility with its non-glare surface coating on the viewing side
of the filter. It also has a scratch-resistance surface coating.
Trim Knob control
The Trim Knob control is a 24-position rotary control with a push
selection switch.
Function or power keys
Dash 3000/4000 patient monitors
Power, Print, NBP Go/Stop, Zero All, Silence Alarm/Admit.
Dash 5000 patient monitor
Power, Standby, Admit/Discharge, NBP Go/Stop, NBP Auto,
Print, Silence Alarm, Zero All, Trend, Main Display.
Power key
The patient monitor is powered at all times when it is plugged into AC
power. When the patient monitor is not plugged in to AC power, press
this key to turn on and turn off the patient monitor.
When AC power is present, this key toggles the operational mode of the
patient monitor between normal operation and stand-by mode. In

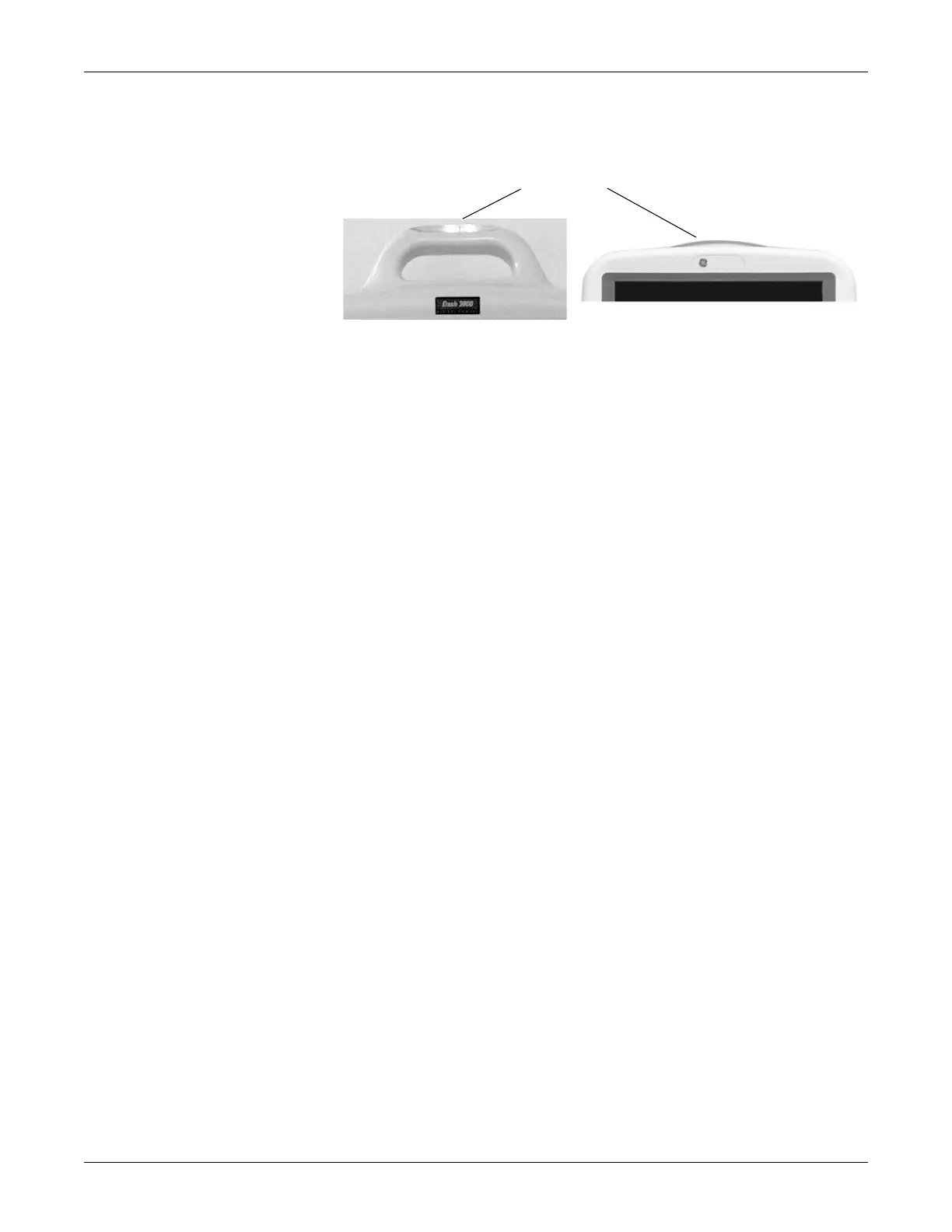

Alarm light indicator
Dash 3000 monitor Dash 4000 and Dash 5000 monitors
052B536A
