Equipment overview: Components
2000966-542D Dash 3000/4000/5000 2-7
standby mode patient monitoring discontinues. Only the charging
function continues and the charging status indicators operate as
described below.
Indicators
While the patient monitor powers up or changes between normal mode
and standby mode, all four front panel indicators illuminate.
AC power indicator
The indicator lights green when AC mains power is applied to the patient
monitor (including when the patient monitor is in the standby mode).
The indicator does not illuminate when the patient monitor has no AC
mains power.
Battery power indicator
The indicator lights yellow when the patient monitor is operating on
battery power. The indicator does not illuminate when the patient
monitor has no battery power. Battery indicators are located on the front
panel of the patient monitor. They indicate when battery power is used
and the battery charging status.
Charging status indicators
An icon for each battery indicates its charging status. The battery icon
lights yellow when the respective battery is being charged. If both
batteries are present and require charging, then both icons illuminate

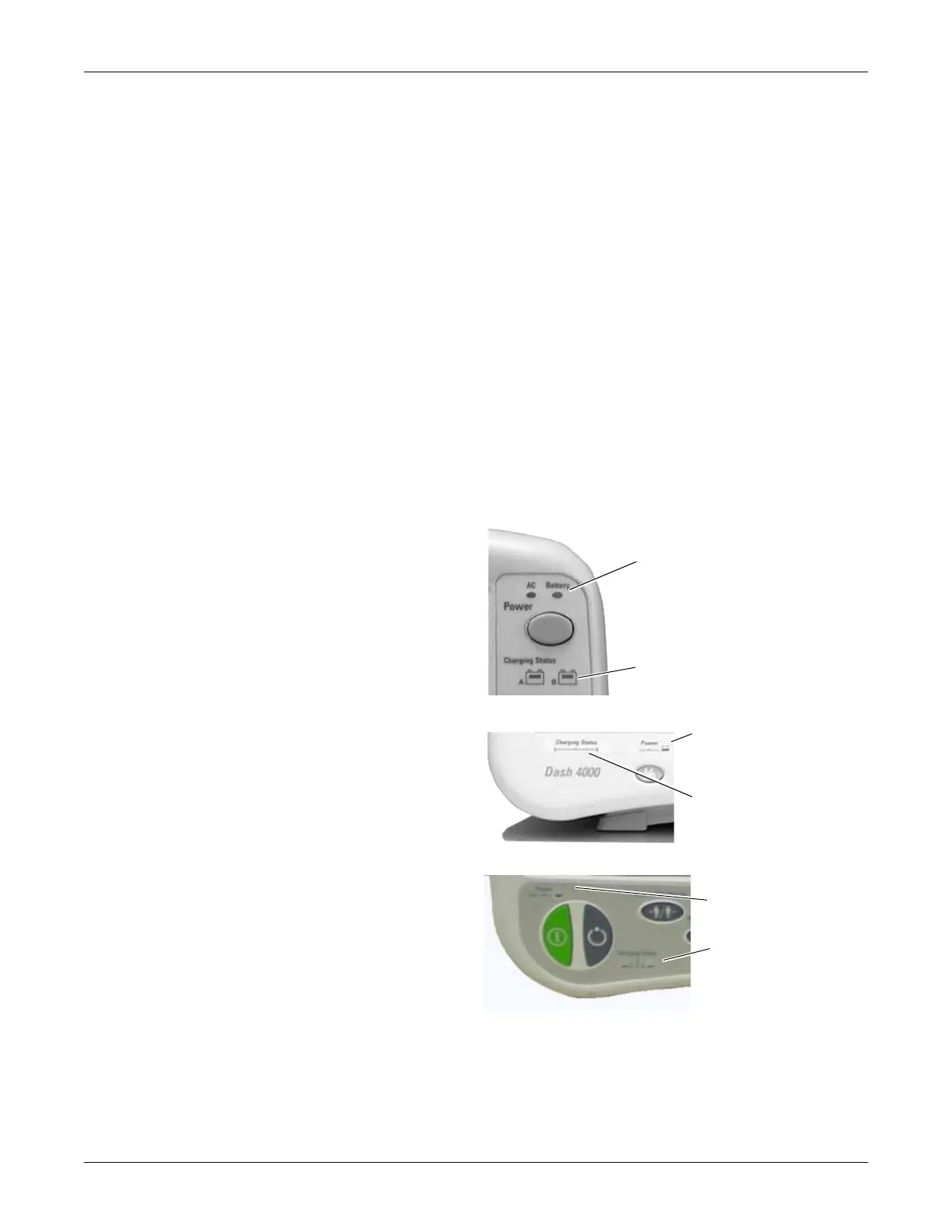

Charge status indicators
Battery power indicators
Battery power
indicators
Charge status
indicators
Dash 3000
Dash 4000
Charge status
indicators
Battery power
indicators
Dash 5000
009A
053A
868A

GE Dash 4000 Specifications

General

Resolution	640 x 480 pixels
Power Supply	100-240 VAC, 50/60 Hz
ECG	3/5/12-lead
IBP	Up to 4 channels
Battery Backup	Yes
Certifications	CE, UL, CSA
Parameters Monitored	ECG, SpO2, NIBP, IBP, Temperature, Respiration, Cardiac Output
Connectivity	Ethernet, USB, Serial
Display Type	TFT LCD
Recorder	Integrated thermal printer
Battery Type	Lithium-ion
Operating Temperature	0 to 40°C
Storage Temperature	-20 to 60°C
Humidity Range	15% to 95% non-condensing
Display Size	10.4 inches
Cardiac Output	Available
