GE Dash 4000 Service Manual

Field replaceable units: Replace main unit parts
7-40 Dash 3000/4000/5000 2000966-542D

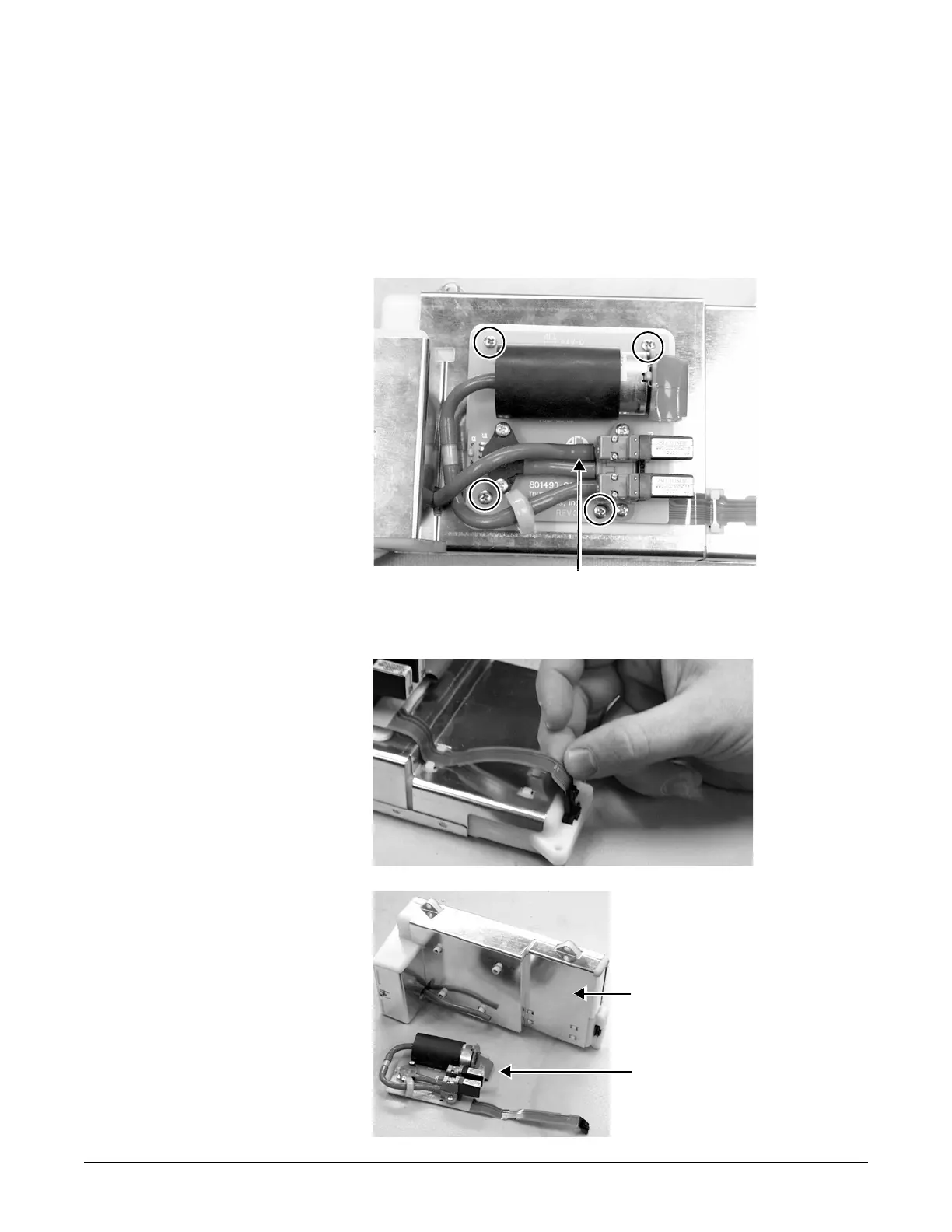

Replace NBP pump assembly
1. Remove the DAS assembly according to steps starting on page 7-37.
2. Remove the four screws and remove the NBP assembly from the
cover of the DAS assembly.
3. Disconnect the tube from the inner solenoid going into the NBP
assembly.
4. Using a small, flat-blade screwdriver, remove the connector from the
NBP assembly to the DAS assembly.
Disconnect this end of the tube.
Remove four
screws.
570A
527A
DAS assembly FRU
NBP pump assembly FRU
526A

GE Dash 4000 Specifications

General

Resolution	640 x 480 pixels
Power Supply	100-240 VAC, 50/60 Hz
ECG	3/5/12-lead
IBP	Up to 4 channels
Battery Backup	Yes
Certifications	CE, UL, CSA
Parameters Monitored	ECG, SpO2, NIBP, IBP, Temperature, Respiration, Cardiac Output
Connectivity	Ethernet, USB, Serial
Display Type	TFT LCD
Recorder	Integrated thermal printer
Battery Type	Lithium-ion
Operating Temperature	0 to 40°C
Storage Temperature	-20 to 60°C
Humidity Range	15% to 95% non-condensing
Display Size	10.4 inches
Cardiac Output	Available
