GE Dash 4000 Service Manual

Functional and electrical safety checks: Functional Checkout procedures
2000966-542D Dash 3000/4000/5000 8-23
4. Disable pacemaker pulse detection on the patient monitor and return
the simulator to these conditions:
 Heart rate – 80 bpm,
 Heart rate amplitude – 1.0 mV,
 5-leadwire ECG patient cable properly attached.
Leads Off Detection Procedures
1. Select ECG lead II to view in the top trace position on the patient
monitor display.
2. Disconnect the RA leadwire from the patient simulator.
3. Observe the following:
 an RA FAIL message appears on the display, and
 lead III automatically displays in place of lead II in the top trace
position.
4. Reconnect the RA leadwire to the patient simulator and discharge
the patient monitor.
Calibration Pulse Test Procedures
5. Inject a 1-millivolt calibration signal using the patient simulator and
start a manual graph.
6. Observe that the calibration pulse properly displays and graphs.

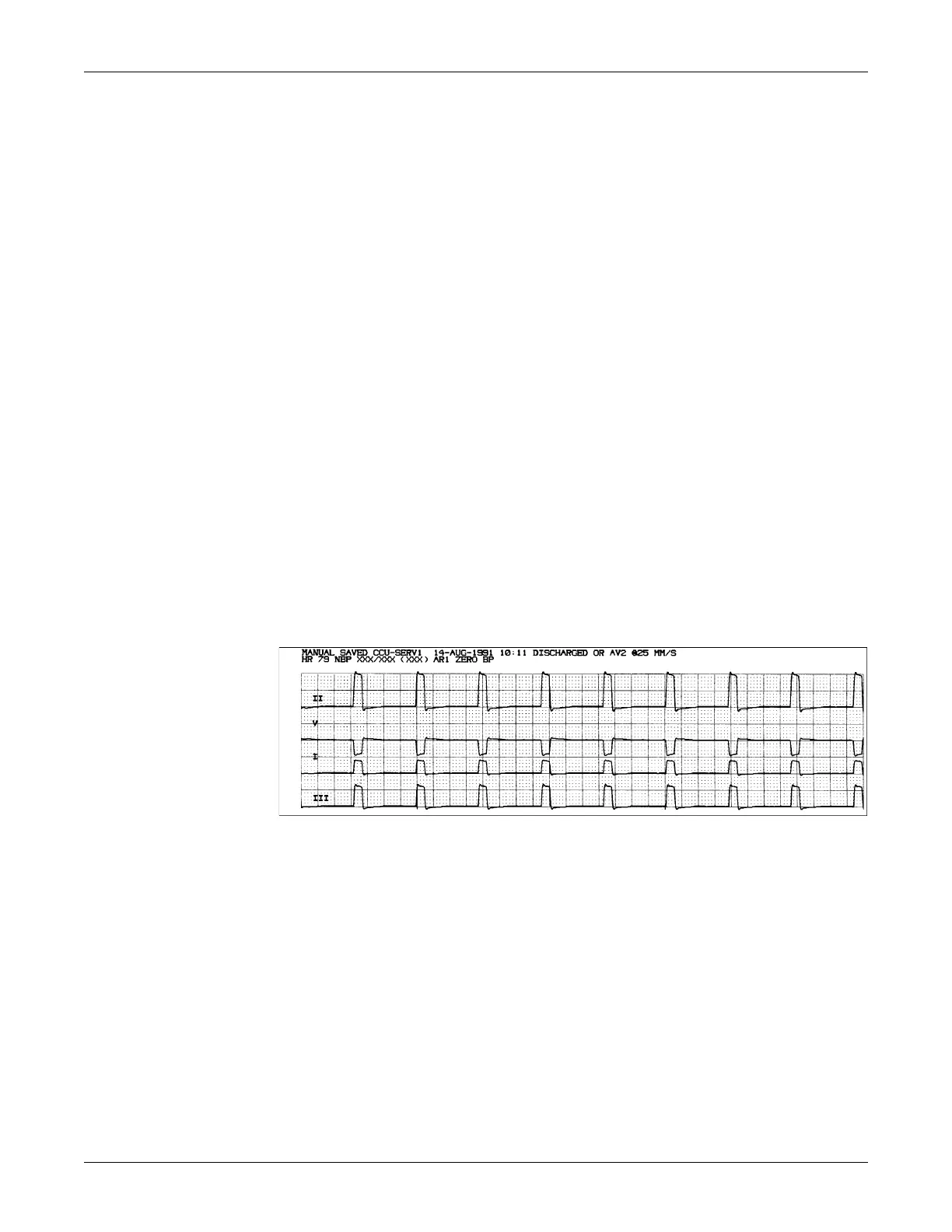

Compare the printed graph with the sample shown below.
7. Measure the cal pulse (Pulse) amplitude. These should be (+/-20%):
 Lead I:0.5 mV
 Lead II:1 mV
 Lead III:0.5 mV
 Lead V:-0.5 mV
8. This completes the 5 Leadwire ECG test. Leave the ECG patient
cable connected to ECG/RESP and continue to the next steps of
these checkout procedures.
016A

GE Dash 4000 Specifications

General

Resolution	640 x 480 pixels
Power Supply	100-240 VAC, 50/60 Hz
ECG	3/5/12-lead
IBP	Up to 4 channels
Battery Backup	Yes
Certifications	CE, UL, CSA
Parameters Monitored	ECG, SpO2, NIBP, IBP, Temperature, Respiration, Cardiac Output
Connectivity	Ethernet, USB, Serial
Display Type	TFT LCD
Recorder	Integrated thermal printer
Battery Type	Lithium-ion
Operating Temperature	0 to 40°C
Storage Temperature	-20 to 60°C
Humidity Range	15% to 95% non-condensing
Display Size	10.4 inches
Cardiac Output	Available
