GE Dash 4000 Service Manual

Functional and electrical safety checks: Functional Checkout procedures
8-28 Dash 3000/4000/5000 2000966-542D
Patient simulator configuration
Set up the patient simulator as follows:
 Blood pressure (BP) polarity – POS, if required.
 BP output – 0 mmHg.
 BP transducer output – 5 µVolts.
1. Connect the BP simulator cable to enabled BP connectors you are
testing.

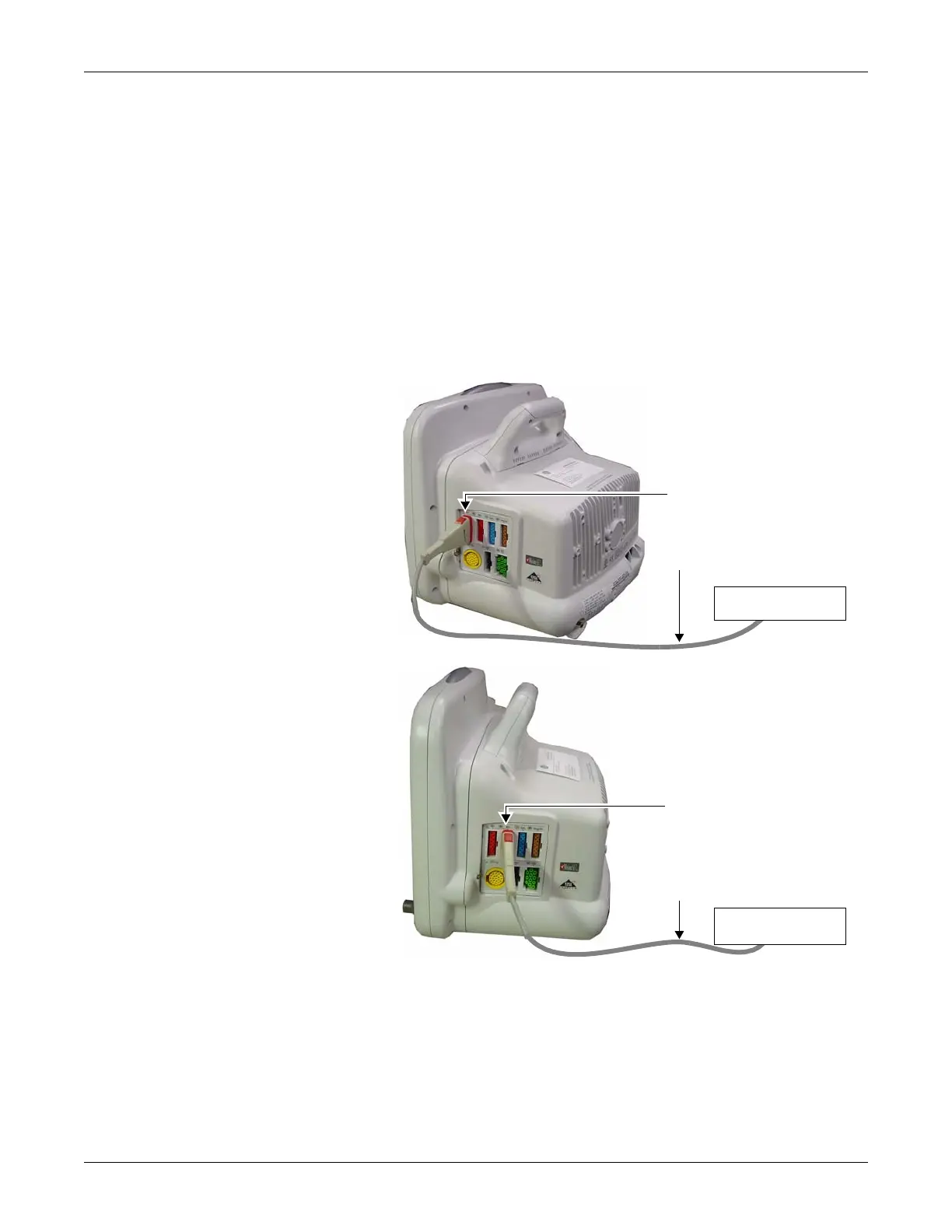

a. To connect to the BP1 or the BP2 connector, see the pictures
below.
blood pressure simulator
cable
BP2 connector on monitor
blood pressure simulator
cable
BP1 connector on monitor
To Connect to the BP2 Connector
patient simulator
To Connect to the BP1 Connector
863A
864A
patient simulator

GE Dash 4000 Specifications

General

Resolution	640 x 480 pixels
Power Supply	100-240 VAC, 50/60 Hz
ECG	3/5/12-lead
IBP	Up to 4 channels
Battery Backup	Yes
Certifications	CE, UL, CSA
Parameters Monitored	ECG, SpO2, NIBP, IBP, Temperature, Respiration, Cardiac Output
Connectivity	Ethernet, USB, Serial
Display Type	TFT LCD
Recorder	Integrated thermal printer
Battery Type	Lithium-ion
Operating Temperature	0 to 40°C
Storage Temperature	-20 to 60°C
Humidity Range	15% to 95% non-condensing
Display Size	10.4 inches
Cardiac Output	Available
