8

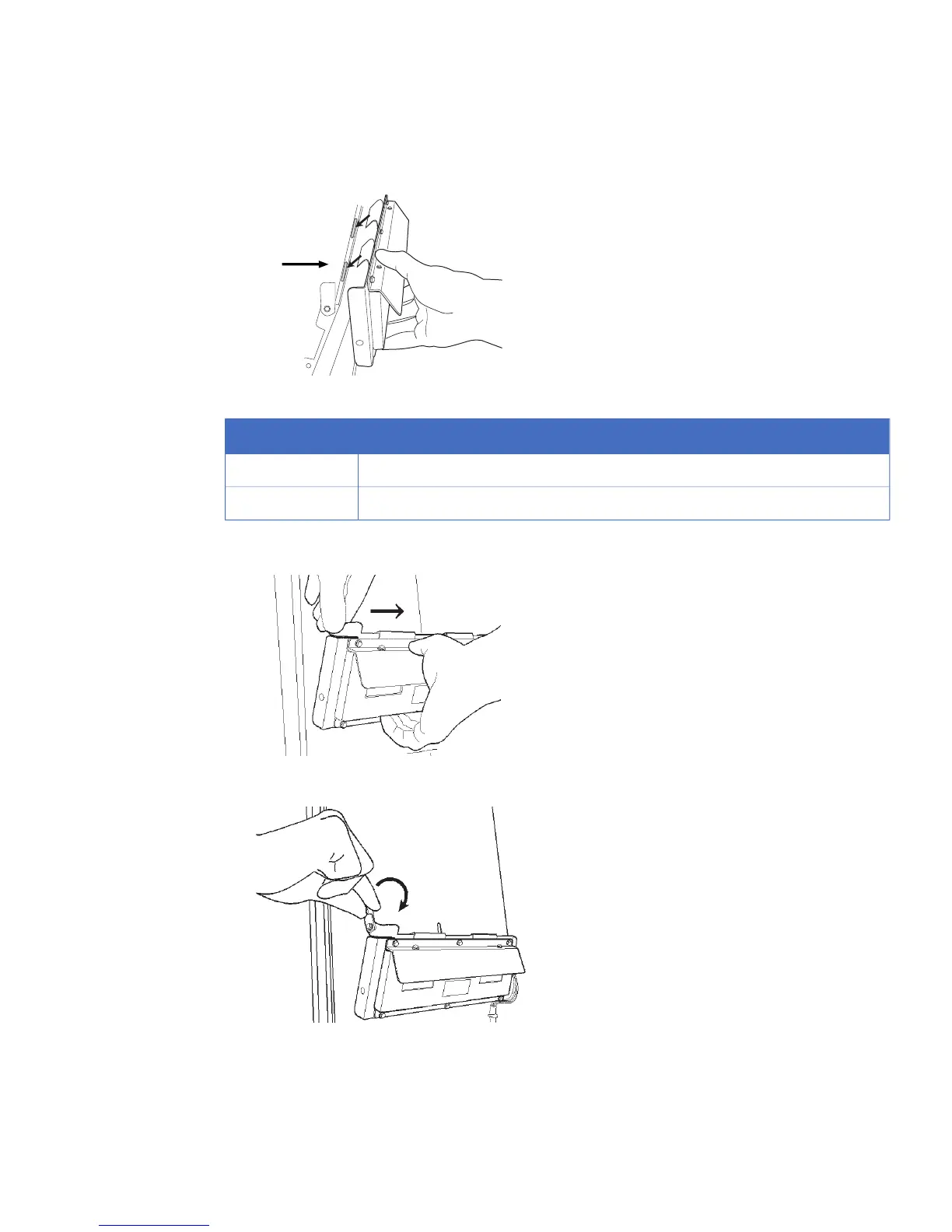

Hook the hanger located on top of the Epi light to the top edge of the Epi light base.
1
2
ActionNo.
Two guide holes are located on the back of the Epi light base.1
Slide the hook after attaching the guide pins to the guide holes.2
9
Push the Epi light while holding the latch open, and slide it inwards until a click sound is heard.
10
Lower the latch to lock the Epi light in place.
11
Repeat this process for the opposite side.
Note:
•
The Epi lights are clearly labelled L for the left and R for the right sides.
•
Install the Epi lights in matching pairs only. If Epi lights with different wavelengths
are used, the intended image will not be obtained.
ImageQuant LAS 4000 User Manual 28-9607-42 AB 31
3 Exchanging accessory parts
3.3 Changing the light sources
3.3.2 Changing the Epi lights
