GE ImageQuant LAS 4000 - Page 48

ActionStep

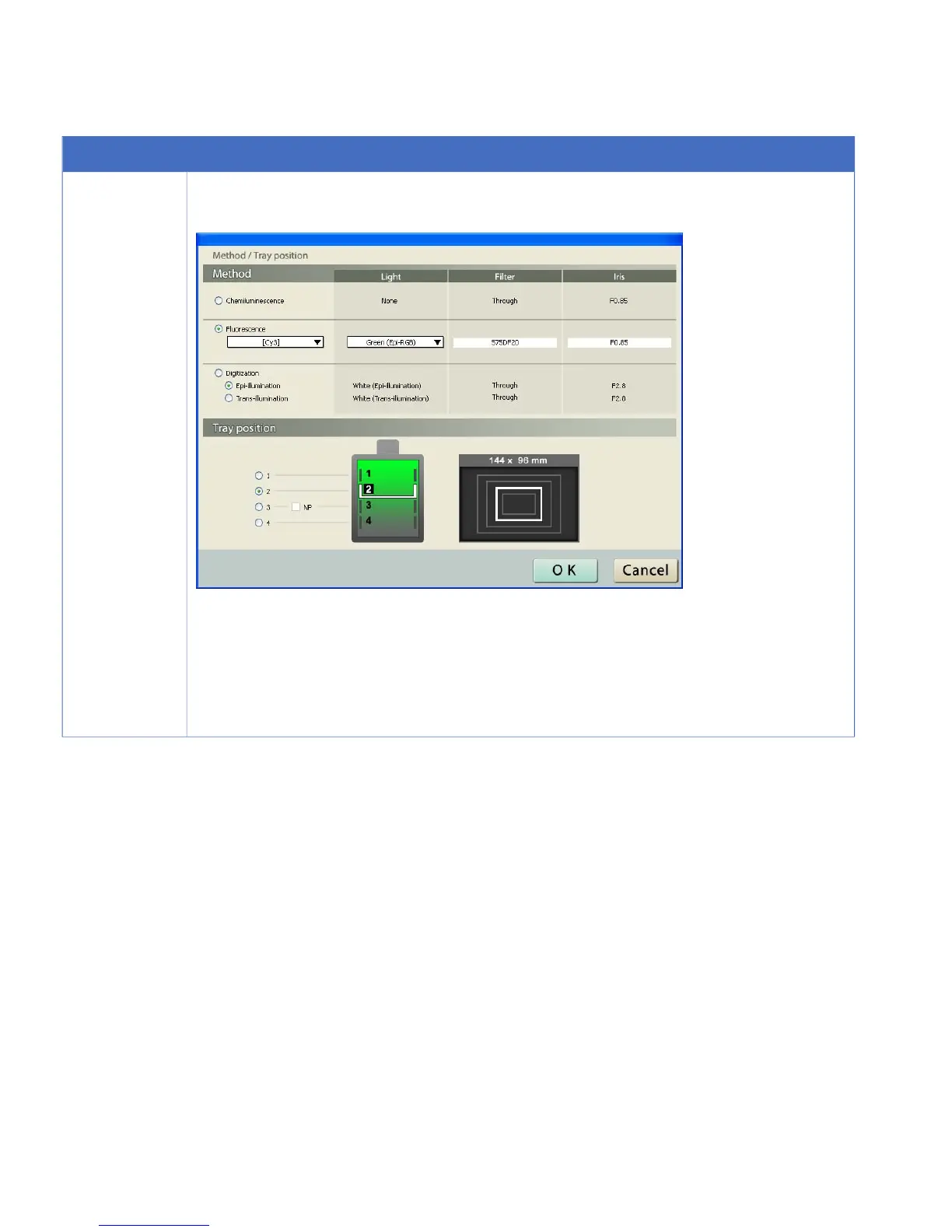

Click the Method/Tray position button.
1
Result: The Method/Tray position dialog opens.
•
Select Fluorescence as the Method, choose the appropriate fluorescent marker and the ap-
propriate light source from the pull-down menus.
The appropriate filter is automatically selected.
•
Select the Tray position.
•
Click the OK button.
48 ImageQuant LAS 4000 User Manual 28-9607-42 AB
4 Operating the ImageQuant LAS 4000
4.7 Exposing fluorescence (Epi illumination)
