CHAPTER 5: SETTINGS
SYSTEM SETUP
L90 LINE CURRENT DIFFERENTIAL SYST
EM – INSTRUCTION MANUAL
5-165
5

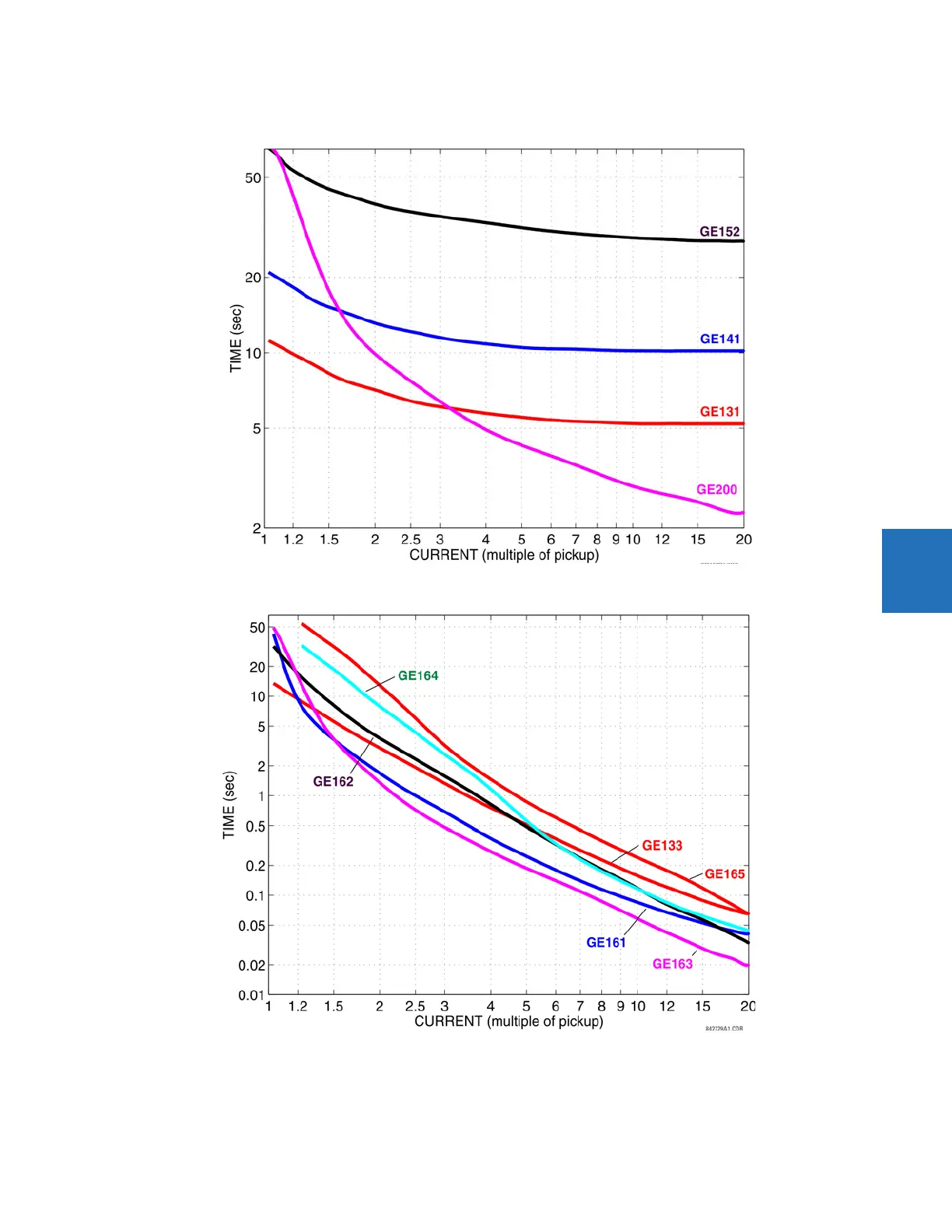

Figure 5-79: R
ecloser curves GE131, GE141, GE152, and GE200
Figure 5-80: Recloser curves GE133, GE161, GE162, GE163, GE164, and GE165
388
