CHAPTER 3: INSTALLATION PANEL CUTOUTS
L90 LINE CURRENT DIFFERENTIAL SYSTEM – INSTRUCTION MANUAL 3-7
3

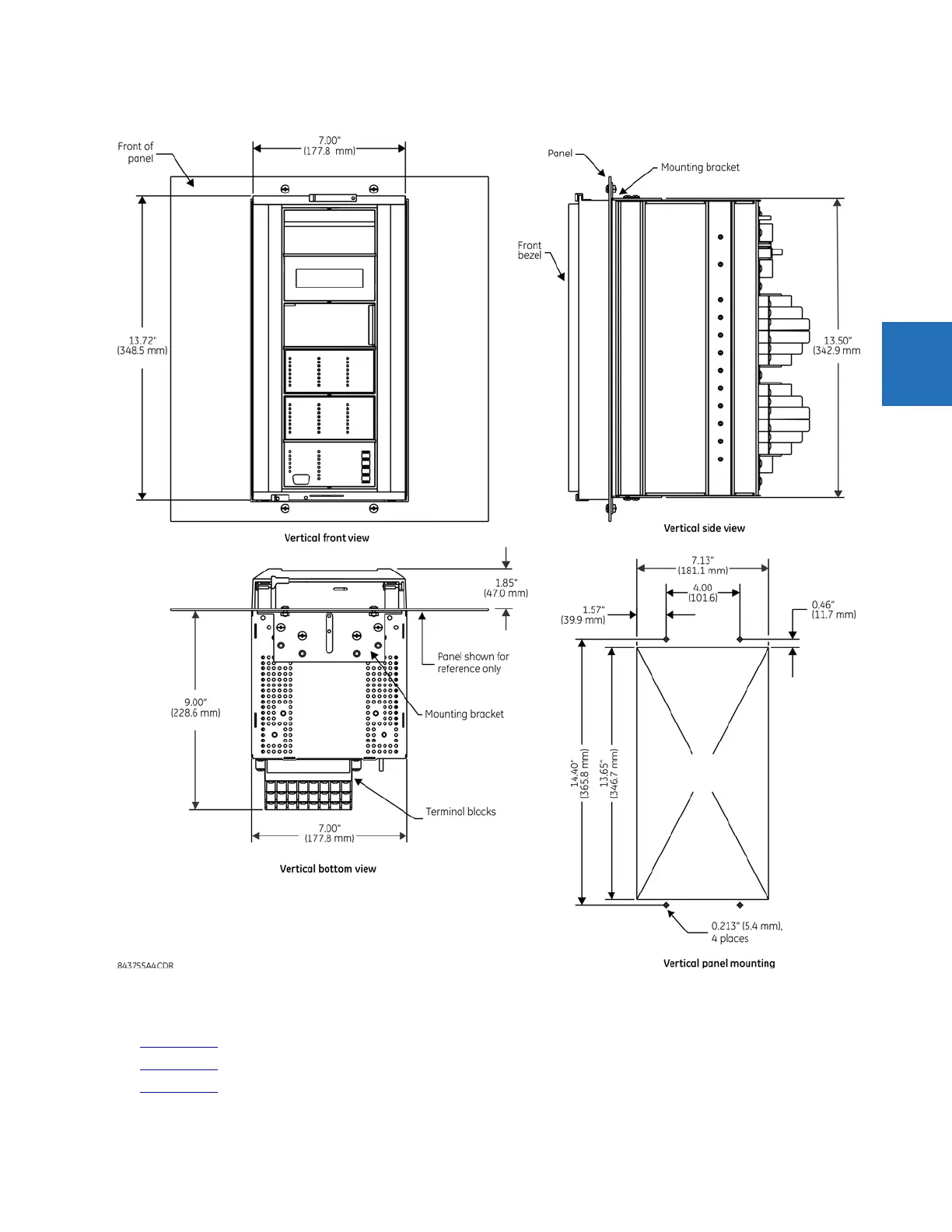

Figure 3-6: Vertical and mounting dimensions (standard front panel)
For side-mounting L90 devices with the enhanced front panel, see the following documents available on the UR DVD and
the GE Grid Solutions website:
• GEK-113180
— UR-Series UR-V Side-Mounting Front Panel Assembly Instructions
• GEK-113181
— Connecting a Remote UR-V Enhanced Front Panel to a Vertical UR Device Instruction Sheet
• GEK-113182
— Connecting a Remote UR-V Enhanced Front Panel to a Vertically-Mounted Horizontal UR Device
Instruction Sheet
