11-18 L90 LINE CURRENT DIFFERENTIAL SYSTEM – INSTRUCTION MANUAL
REPLACE FRONT PANEL CHAPTER 11: MAINTENANCE
11

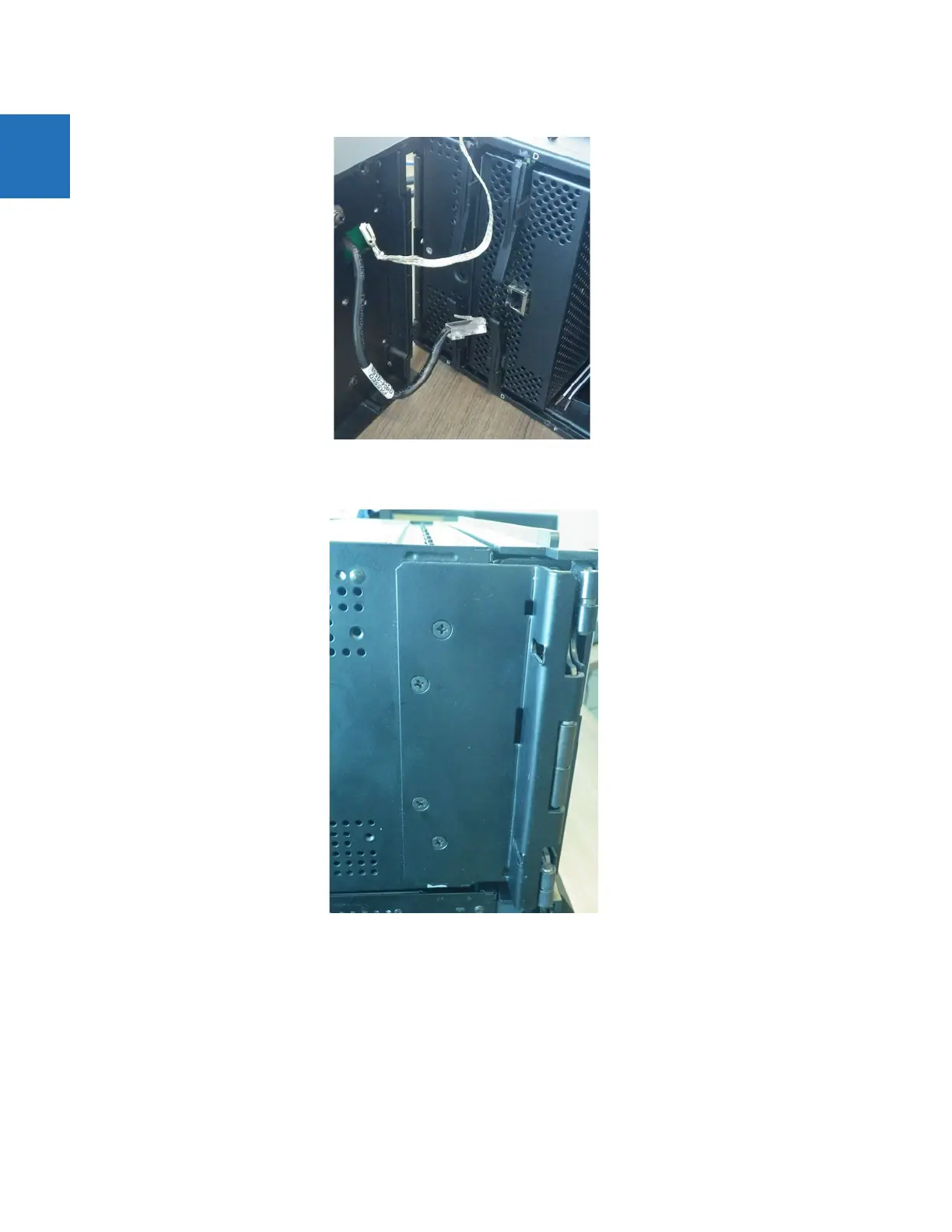

Figure 11-16: Disconnected ground cable and CPU connector
6. Unscrew and remove the mounting bracket with the front panel from the left side.
Figure 11-17: Unscrew enhanced front panel mounting bracket on left side
Figure 11-18: Unscrew standard front panel mounting bracket on left side
