11-20 L90 LINE CURRENT DIFFERENTIAL SYSTEM – INSTRUCTION MANUAL

REPLACE FRONT PANEL CHAPTER 11: MAINTENANCE

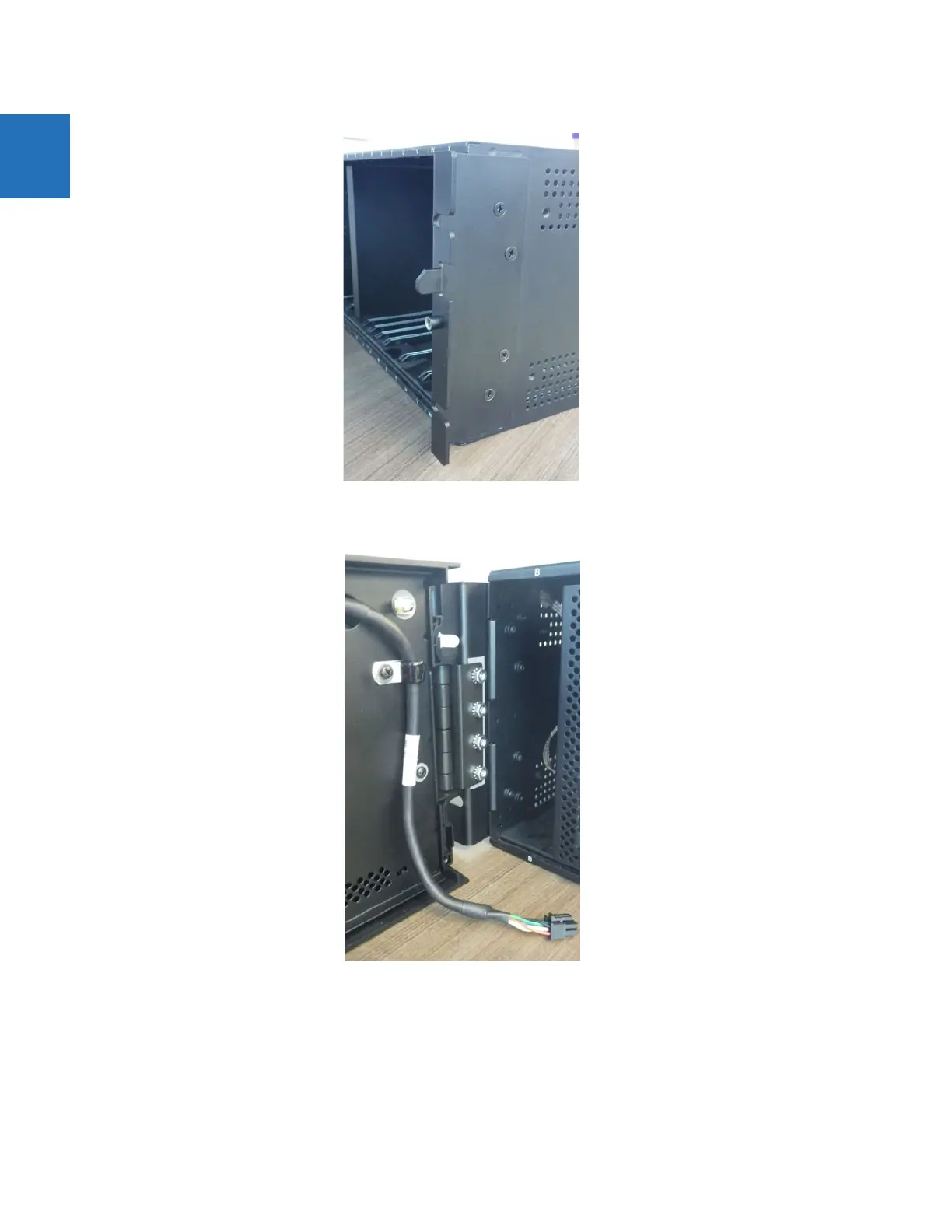

Figure 11-20: Attach mounting bracket to relay on right side

3. Attach the graphical front panel hinge to the left mounting bracket using the nuts provided.

Figure 11-21: Attach to left mounting bracket inside relay

4. Close the front panel without tightening the screw to the mounting bracket.

5. Optionally remove the protective plastic film on the graphical front panel. It is normally peeled off, but also can be left

on.

The graphical front panel has been installed but not connected.
